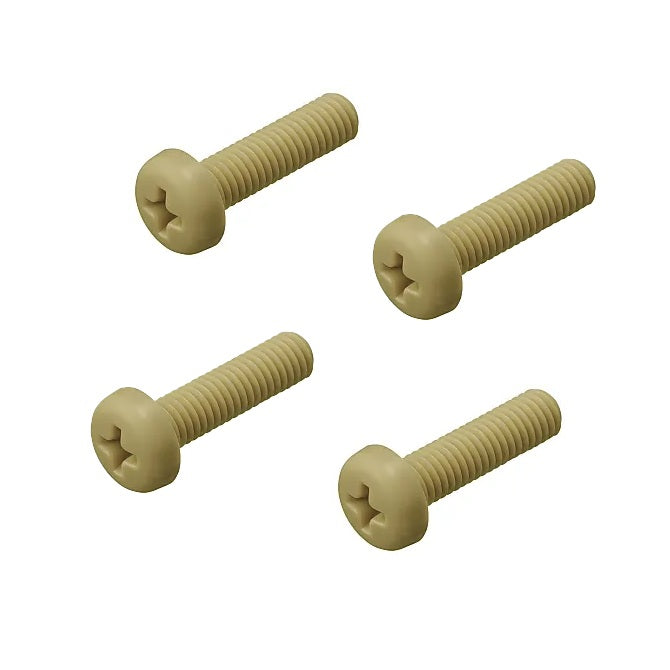

SC020M-004-P-PH-PK (8 Pcs)
Pan Head Screws - M2 (2x0.4mm) x 4 mm x 3.5 mm
MBA
PDF Screws Catalogue
Washers
Nuts
Qty: 1 available now (8 pcs)
Couldn't load pickup availability
Base Category: Screws - Pan Head
Top Level Category: Screws - Pan Head - Phillips - PEEK
Product Details:Thread Size (M): M2 (2x0.4mm)
PEEK: Polyetheretherketone, Light Brown

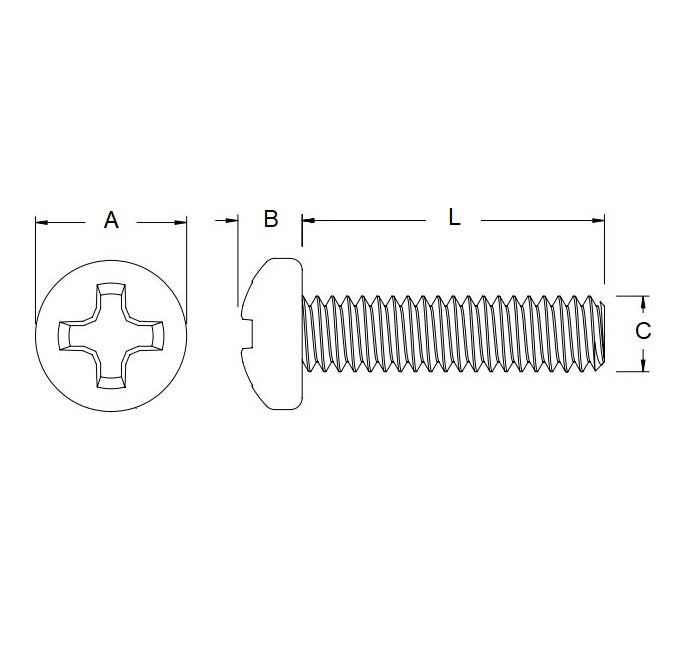

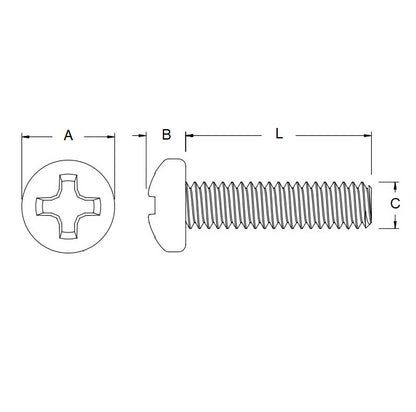

- Thread Length (L): 4mm
- Head Diameter (D1): 3.5mm
- Head Height (L1): 1.3mm
- Tensile Breaking Force: 160N
- Torsional Breaking Torque: 0.06Nm
- Mass: 0.02g
Brand: MBA
Country of Origin: GB
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Alternatives: SPE-M2X4
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
