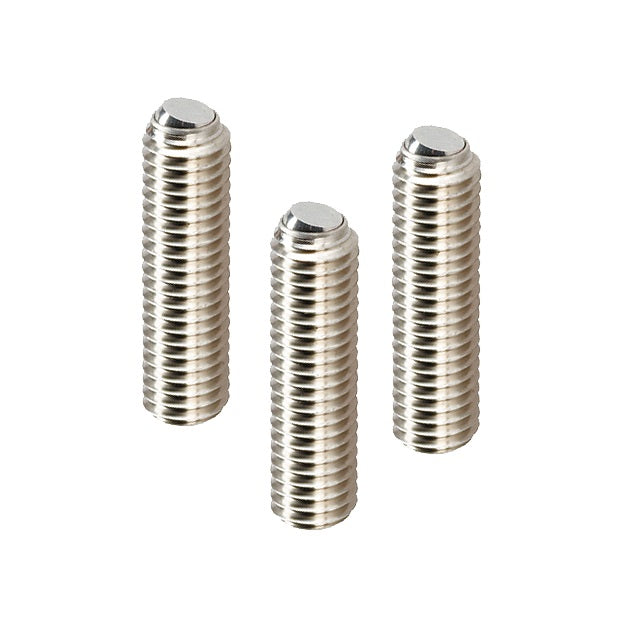

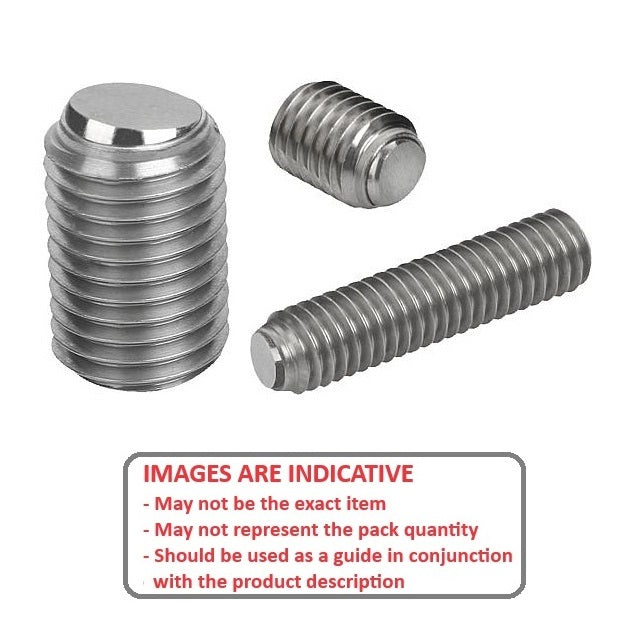

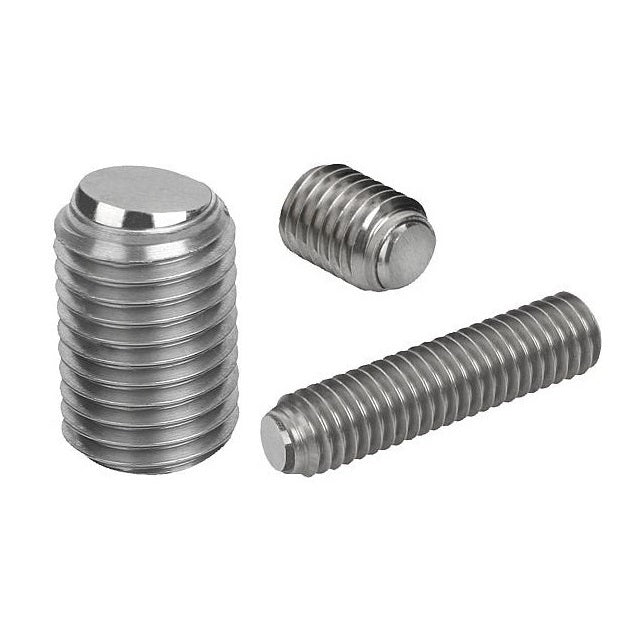

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

SS120M-0400-S4-FB
Flat Tip Aligning Socket Set Screws - M12 (12x1.75mm) x 40 mm Aligning Flat Tip

MBA

Additional resources:
Socket Set Screws Master PDF
Price:
$16.00 AUD
$26.40 AUD $16.00 AUD
Each
Qty: 15 available now
Only 15 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Socket Set Screws - Flat Tip Aligning

Top Level Category: Socket Set Screws - Flat Tip Aligning - Stainless Steel

Product Details:

Thread Size: M12 (12x1.75mm)
304 Stainless Steel (A2, 18-8) with 440C Stainless HRC 50-55 tip

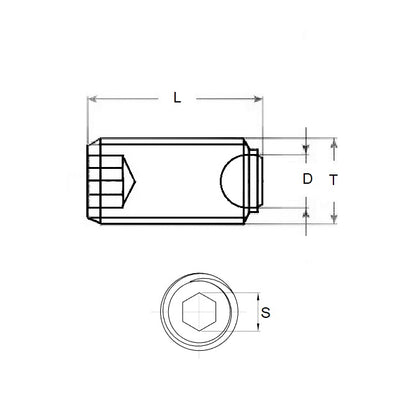

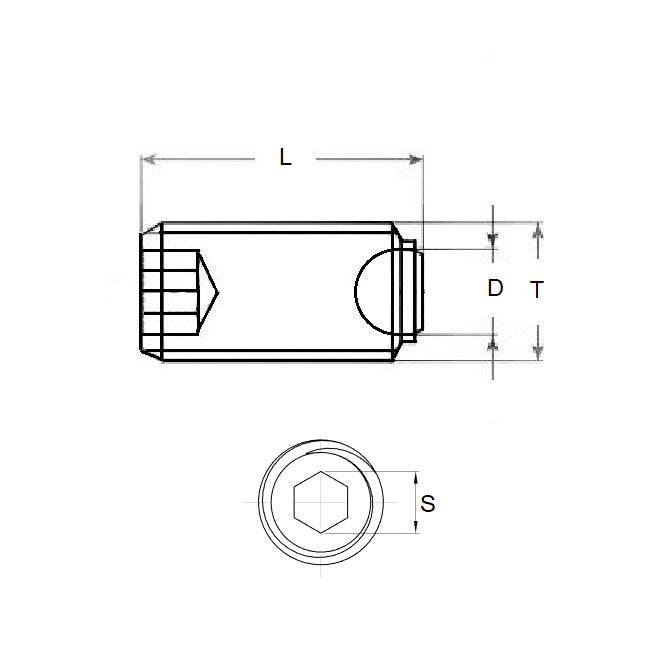

  • Thread Length (L): 40.0mm
  • Type: Aligning Flat Tip
  • Ball Diameter (D): 8.5
  • Hex Key Size: 6.0
  • Body Material: 304 Stainless Steel (A2, 18-8)
  • Ball Material: 440C Stainless HRC 50-55
  • Pitch: 1.75mm
  • Threads Per Inch: 14.51TPI

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternatives: 605-M12-40-BN-Qt.-7A6.036213.1, GN.14458, S705YFM1240

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
