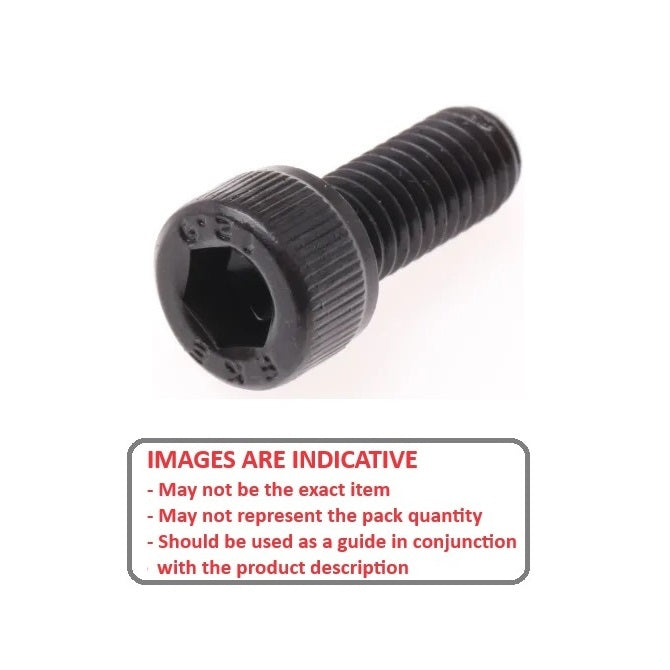

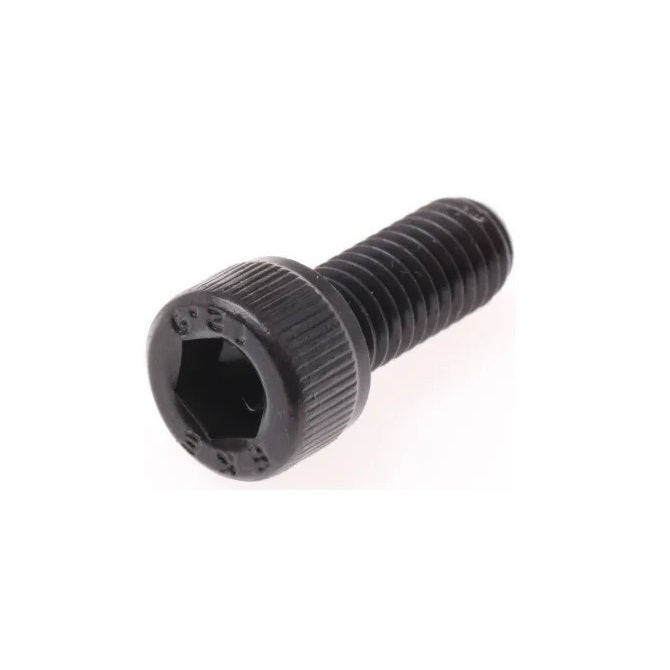

SC016M-008-C-SK-C (10 Pcs)
Screw - M1.6x0.35 (M1.6 Standard) x 8 mm
MBA
Additional resources:PDF Screws Catalogue
Washers
Nuts
Qty: 17 available now (170 pcs)
Order 50 or more (500 pcs) for $5.03 AUD per 10
Couldn't load pickup availability
Base Category: Screws - Cap
Top Level Category: Screws - Cap - Socket - Alloy Steel - Standard

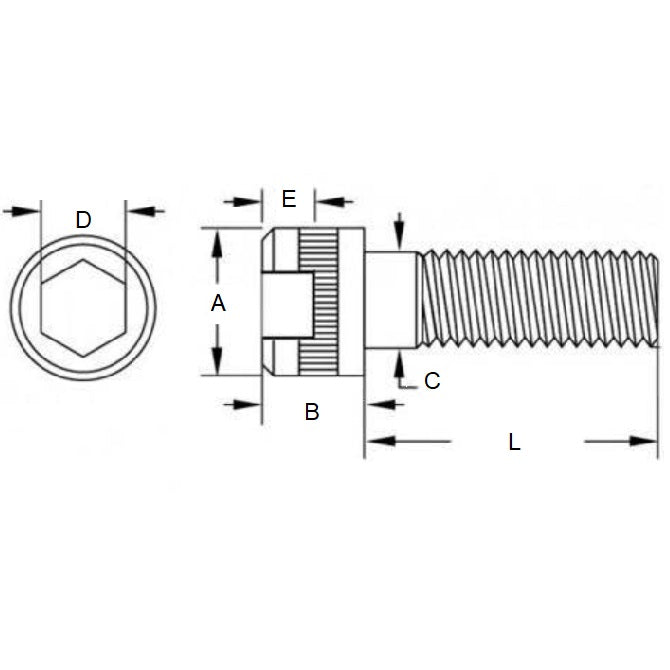

Product Details:Thread Size (C): M1.6x0.35 (M1.6 Standard)
High Tensile Steel Black Oxide
- Length (L): 8mm
- Material: High Tensile Steel / Black Oxide
- Head Length (B Max.): 1.7mm
- Head Diameter (A Max.): 3.0mm
- Drive Depth (E): 0.70mm
- Shank Diameter (C): 1.46 - 1.60mm
- Hex Key (D): 1.50mm
- Pitch: 0.350mm
- Threads Per Inch: 72.57TPI
- Min thread Length: 8mm
Brand: MBA
Country of Origin: US
Alternatives: 532507, 91290A041
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
