S609-CSN-2RS-T9H-MC34

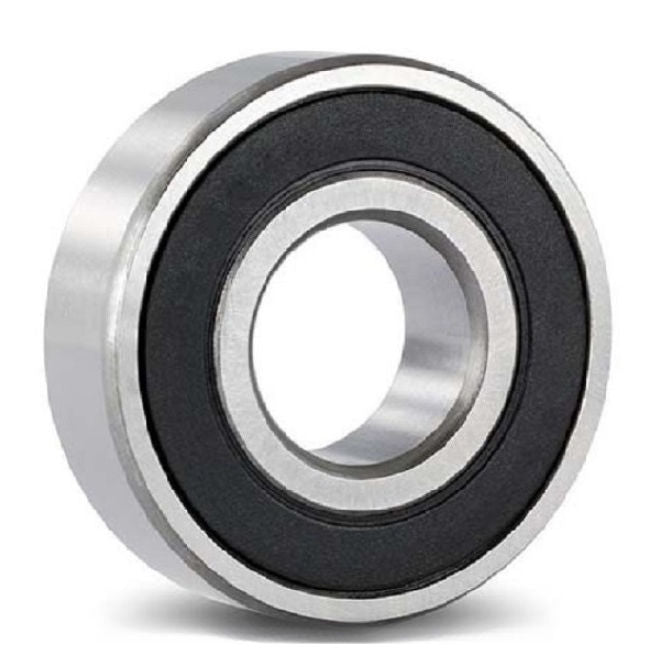

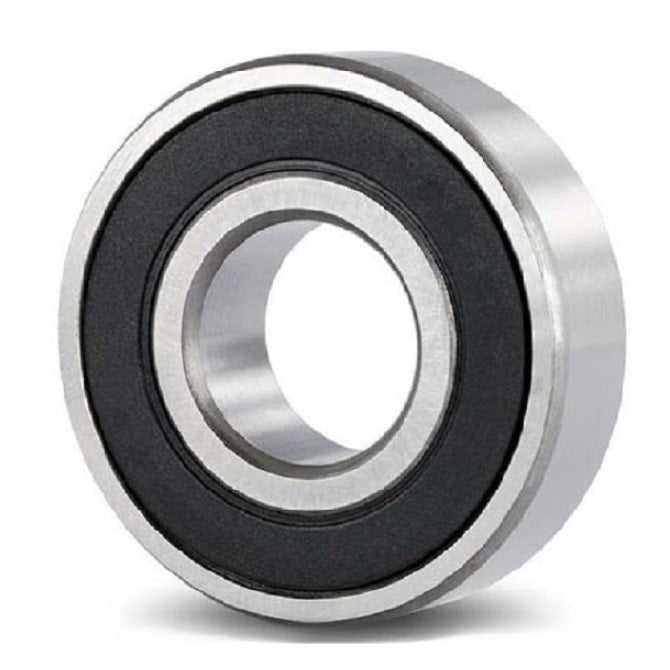

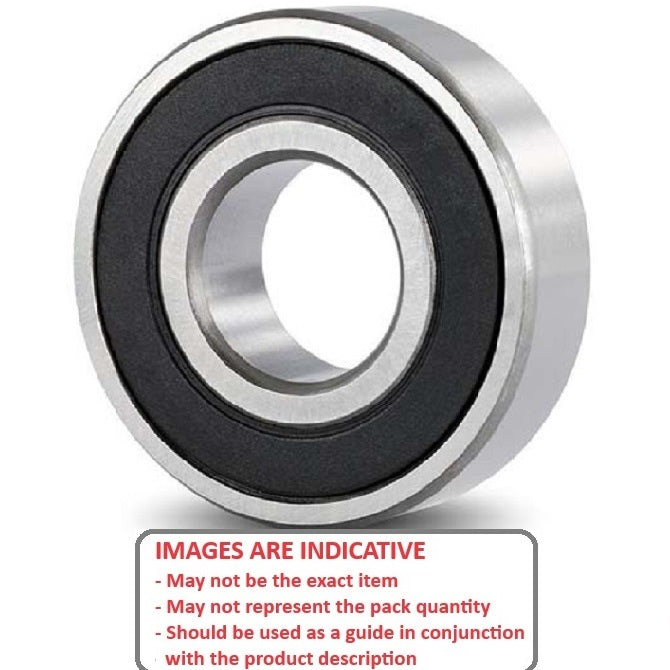

Bearings - 9 mm x 24 mm x 7 mm
MBA
Additional resources:Tolerances
Standard Bearings PDF Catalogue
Ceramic Bearings PDF Download
Qty: 9 available now
Couldn't load pickup availability
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Ceramic Hybrid

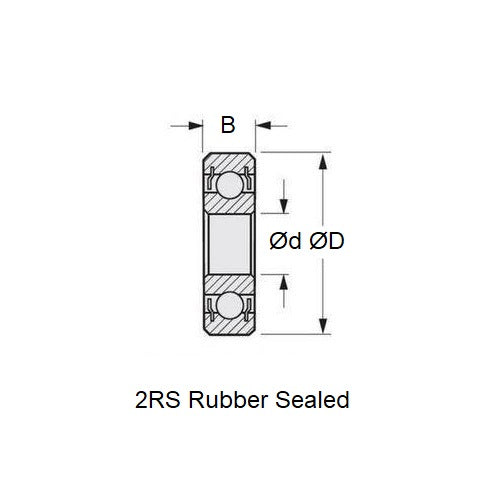

Product Details:ID (d): 9.000mm
+0.000/-0.0075
AIS I 440C Stainless Steel / Polyamide Cage / Si3N4 Ceramic Balls
- OD (D): 24.000mm
+0.000/-0.010
- Width (B): 7.000mm
+0.000/-0.125
- Precision Grade: Economy
- Closure Type: 2RS
- Bearing Type: Radial
Brand: MBA
Country of Origin: TW
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Alternatives: S609CSNT9H2RSECO, S609CSNT9H2RSMC34
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
