Single Row Ball Bearings - 9x17x5 mm Unflanged - Stainless Steel AISI 440C Bearing

Name: 1084158 | S689A-ZZ-MC3 (Each) --- Single Row Ball Bearings - 9x17x5 mm Unflanged - Stainless Steel AISI 440C Bearing
Rating: 5.0 (1 reviews)

S689A-ZZ-MC3 (Each)

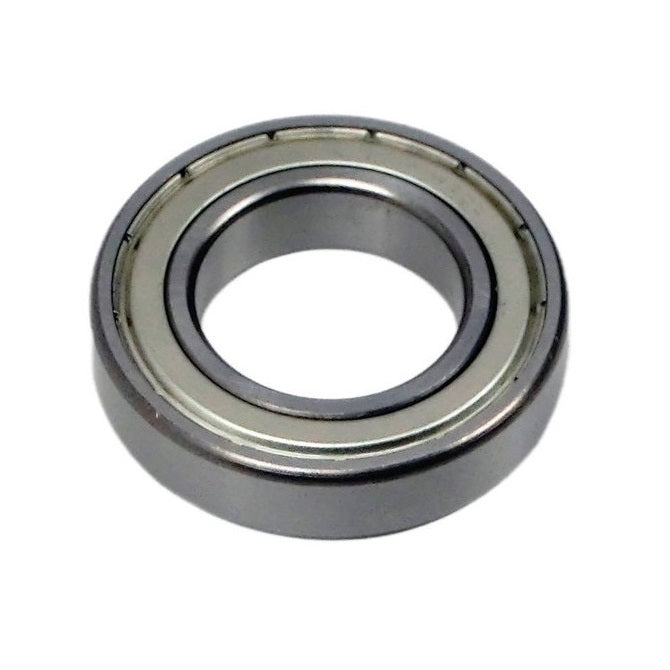

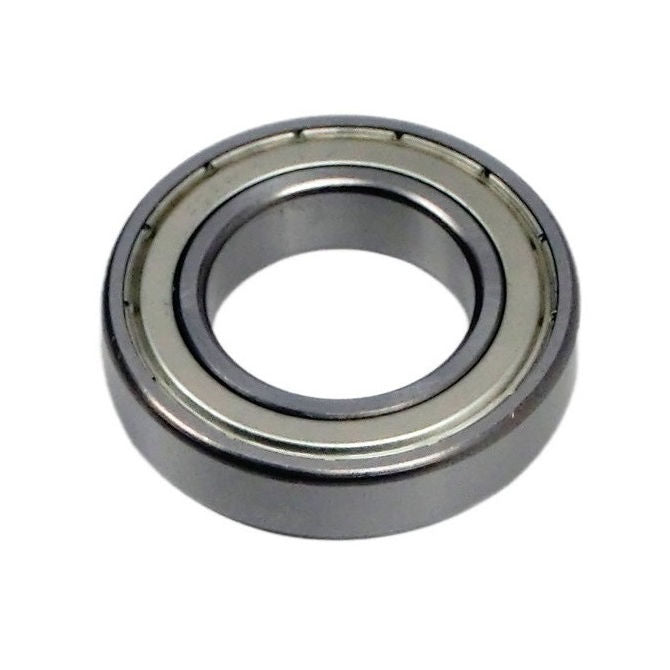

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$4.50 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 47 available now

Order 50 or more
for $4.05 AUD Each

Special Offer: If you purchase the remaining quantity of this item, you will receive the bulk price.

Product Details

ID (d): 9.000mm
_{+ 0.000 / - 0.0075}
_{(9.000mm is 0.354 in.)}

Stainless Steel AISI 440C

ID (d): 9.000mm
_{+ 0.000 / - 0.0075}
_{(9.000mm is 0.354 in.)}
OD (D): 17.000mm
_{+ 0.000 / - 0.0075}
_{(17.000mm is 0.669 in.)}
Width (B): 5.000mm
_{+ 0.000 / - 0.125}
_{(5.000mm is 0.197 in.)}
Precision Grade: Abec 1
Closure Type: ZZ
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

SS689AZZMC3 689A
Stainless 689AZZMC3
Stainless 689A-ZZ-MC3
NTN 689H-ZZ
ALTPART
7804K118
SHIMANO RD10463
SHIMANO RD13188
SHIMANO RD3204
SHIMANO RD8202
SHIMANO RD8374
Shielded Width A S689/5
Shielded S689A / 5
Shielded Width A SS689/5
Shielded SS689A / 5
ADR WX9-ZZ
DDL1790-ZZ
DD-L1790-ZZ
DMB-79
DMB79
DDL1790ZZ
WX9ZZ
689HZZ
689AZMC3
689A-Z-MC3
S689-ZZ
S689ZZ
S689A-ZZMC3
SS689ZZ
SS689A-ZZMC3
SS689-ZZ
SSL1790-ZZ
SSL1790ZZ
SS-L1790-ZZ
689ABASIC

Used for

Fishing Reel Parts
RC Helicopter Parts
RC Nitro Engine Parts
Abu Garcia - 7000 - Most Handle Bearing 9-17-5mm
Fin-Nor - AHAB 20 Spinning Reel - Bearing 9-17-5mm
Shimano - JHX6000 - Main Gear Bearing 9-17-5mm
Align - Trex 600 CF - Bearing
Abu Garcia - 700B - Crank Boss - Bearing 9-17-5mm
Abu Garcia - 700C3 - Crank Boss - Bearing 9-17-5mm
Associate Electrics - 90 Degrees Port ABC - 0.15 - Bearing 9-17-5mm
Bluebird - 2C - 32 - Bearing 9-17-5mm
Brat - 21 All Models - Bearing 9-17-5mm
Force - Side Exhaust - 0.12 - Bearing 9-17-5mm
Force - Side Exhaust - 0.21 - Bearing 9-17-5mm
Kyosho - GS15R - 61 - Bearing 9-17-5mm
Kyosho - GT - 21 - Bearing 9-17-5mm
Mac - 21 - Bearing 9-17-5mm
Magnum Power - Pro - 46 - Bearing 9-17-5mm
Megatech - 1.4 All Models - Bearing 9-17-5mm
Norvel - 25 - 40 - Bearing 9-17-5mm
OS - CV - 1 - Bearing 9-17-5mm
OS - CV - 46 - Bearing 9-17-5mm
OS - CV Hyper With 10A - 12 - Bearing 9-17-5mm
OS - CV-A - 15 - Bearing 9-17-5mm
OS - CV-M - 15 - Bearing 9-17-5mm
OS - CV-MX - 15 - Bearing 9-17-5mm
OS - CVX - 12 - Bearing 9-17-5mm
OS - CVX - 15 - Bearing 9-17-5mm
OS - CVX Hyper With 10A - 12 - Bearing 9-17-5mm
OS - CZ-1 and 2 - 15 - Bearing 9-17-5mm
OS - CZ-A - 15 - Bearing 9-17-5mm
OS - CZ-R - 12 - Bearing 9-17-5mm
OS - CZ-Z - 12 - Bearing 9-17-5mm
OS - CZ-Z Recoil - 12 - Bearing 9-17-5mm
OS - F - 21 - Bearing 9-17-5mm
OS - F ABC RC W-Muffler - 21 - Bearing 9-17-5mm
OS - F RC W-Muffler - 25 - Bearing 9-17-5mm
OS - F-F ABC RC - 28 - Bearing 9-17-5mm
OS - F-F RC - 32 - Bearing 9-17-5mm
OS - F-H RC - 32 - Bearing 9-17-5mm
OS - F-H RC W-Muffler - 28 - Bearing 9-17-5mm
OS - FH With COIL - 320 - Bearing 9-17-5mm
OS - FH With Recoil - 240 - Bearing 9-17-5mm
OS - F-HS RC With Cone - 32 - Bearing 9-17-5mm
OS - F-HX - 28 - Bearing 9-17-5mm
OS - F-MX - 32 - Bearing 9-17-5mm
OS - FS 40S-C - 90 - Bearing 9-17-5mm
OS - FS M RC 4C Marine - 91 - Bearing 9-17-5mm
OS - FSR - 52 - Bearing 9-17-5mm
OS - Maxx Old - 60 - Bearing 9-17-5mm
OS - SF - 21 - Bearing 9-17-5mm
Royal - 21 All Models - Bearing 9-17-5mm
Royal - 60 All Models - Bearing 9-17-5mm
Thunder Tiger - 60 All Models - Bearing 9-17-5mm
Thunder Tiger - Pro - 12 - Bearing 9-17-5mm
Thunder Tiger - Pro - 15 - Bearing 9-17-5mm
Thunder Tiger - Pro - 21 - Bearing 9-17-5mm
Thunder Tiger - Pro - 90 - Bearing 9-17-5mm
Thunder Tiger - Pro H - 61 - Bearing 9-17-5mm
Tower - 15BB ABC - 21 - Bearing 9-17-5mm
Traxxas - 15 - 12 All Models - Bearing 9-17-5mm
Traxxas - 25 All Models - Bearing 9-17-5mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
