Single Row Ball Bearings - 9x17x4 mm Unflanged - Stainless Steel AISI 440C

Name: 1083726 | S689-MC3-AF12 --- Single Row Ball Bearings - 9x17x4 mm Unflanged - Stainless Steel AISI 440C
Rating: 5.0 (1 reviews)

S689-MC3-AF12

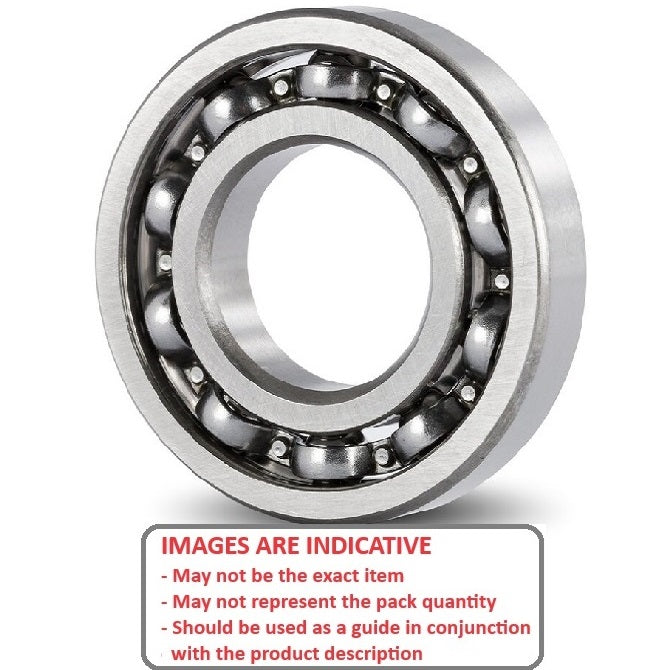

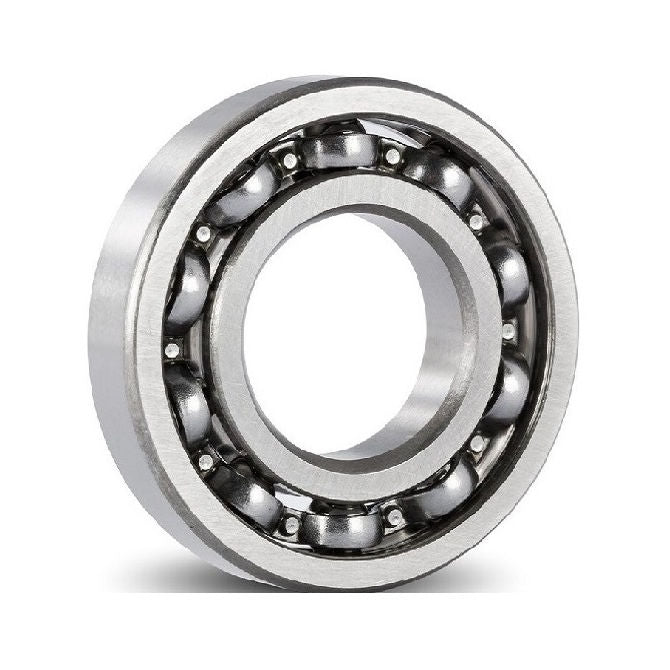

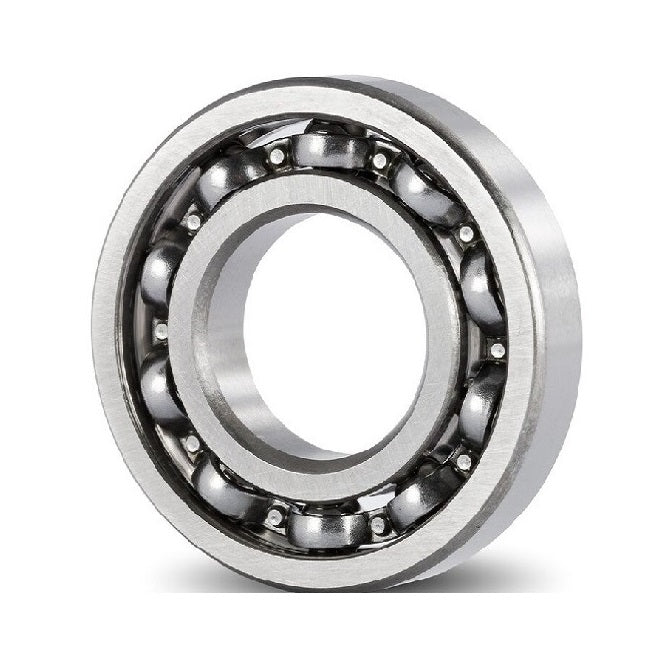

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$4.41 AUD

Each
Qty: 59 available now
Order 50 or more for $3.97 AUD Each

Product Details:

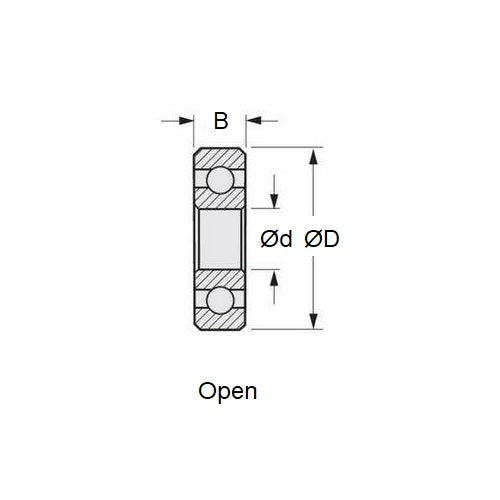

ID (d): 9.000mm
_{+ 0.000 / - 0.0075}
_{(9.000mm is 0.354 in.)}

Stainless Steel AISI 440C

OD (D): 17.000mm
_{+ 0.000 / - 0.0075}
_{(17.000mm is 0.669 in.)}
Width (B): 4.000mm
_{+ 0.000 / - 0.125}
_{(4.000mm is 0.157 in.)}
Precision Grade: Abec 1
Closure Type: Open
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Alternative Parts Include:

Alternative To Check 689H
Stainless 689MC3AF12
Stainless 689-MC3-AF12
GRW S689
Alternative To Check SS689
NTN SS689
ADR WX9
Alternative To Check WX9
UL917X
DDL1790
DD-L1790
SS-L1790
SSL1790
689BASIC

Used for:

RC Nitro Engine Parts
Associate Electrics - 90 Degrees Port ABC - 0.15 - Bearing 9-17-4mm
China Shanghai - CS Old - 46 - Bearing 9-17-4mm
China Shanghai - CS049 - Rear Bearing 9-17-4mm
China Shanghai - CSG - 60 - Bearing 9-17-4mm
Cyclone - 7 All Models - Bearing 9-17-4mm
Cyclone - 90 All Models - Bearing 9-17-4mm
Force - Side Exhaust - 0.12 - Bearing 9-17-4mm
Force - Side Exhaust - 0.21 - Bearing 9-17-4mm
G-Mark - 45 All Models - Bearing 9-17-4mm
Kyosho - GS15R - 61 - Bearing 9-17-4mm
Kyosho - GT - 21 - Bearing 9-17-4mm
Mac - 21 - Bearing 9-17-4mm
Megatech - 1.4 All Models - Bearing 9-17-4mm
Megatech - M-16 - 48 - Bearing 9-17-4mm
Ofna - 15 2.5CC All Models - Bearing 9-17-4mm
OS - 12 CZR - 2 Stroke - Rear Bearing 9-17-4mm
OS - 12 CZZ - 2 Stroke - Rear Bearing 9-17-4mm
OS - 15 CVA - 2 Stroke - Rear Bearing 9-17-4mm
OS - CV - 120 - Bearing 9-17-4mm
OS - CV - 3500 - Bearing 9-17-4mm
OS - CV - 46 - Bearing 9-17-4mm
OS - CV Hyper With 10A - 12 - Bearing 9-17-4mm
OS - CV-A - 15 - Bearing 9-17-4mm
OS - CV-M - 15 - Bearing 9-17-4mm
OS - CV-MX - 15 - Bearing 9-17-4mm
OS - CVX - 12 - Bearing 9-17-4mm
OS - CVX - 15 - Bearing 9-17-4mm
OS - CVX Hyper With 10A - 12 - Bearing 9-17-4mm
OS - CZ-1 and 2 - 15 - Bearing 9-17-4mm
OS - CZ-A - 15 - Bearing 9-17-4mm
OS - CZ-R - 12 - Bearing 9-17-4mm
OS - CZ-Z - 12 - Bearing 9-17-4mm
OS - CZ-Z Recoil - 12 - Bearing 9-17-4mm
Super Tigre - GH - 75 - Bearing 9-17-4mm
Thunder Tiger - 60 All Models - Bearing 9-17-4mm
Thunder Tiger - Pro - 12 - Bearing 9-17-4mm
Thunder Tiger - Pro - 21 - Bearing 9-17-4mm
Thunder Tiger - Pro - 90 - Bearing 9-17-4mm
Tower - 15BB ABC - 21 - Bearing 9-17-4mm
Traxxas - 25 All Models - Bearing 9-17-4mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
