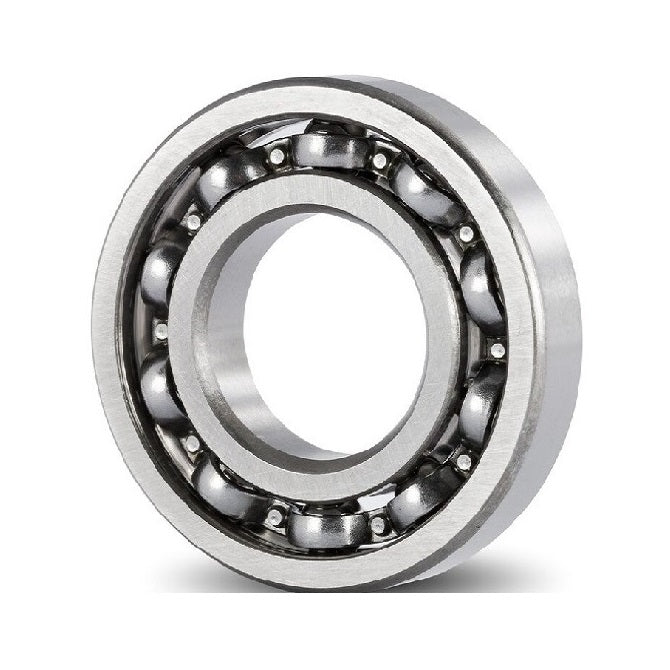

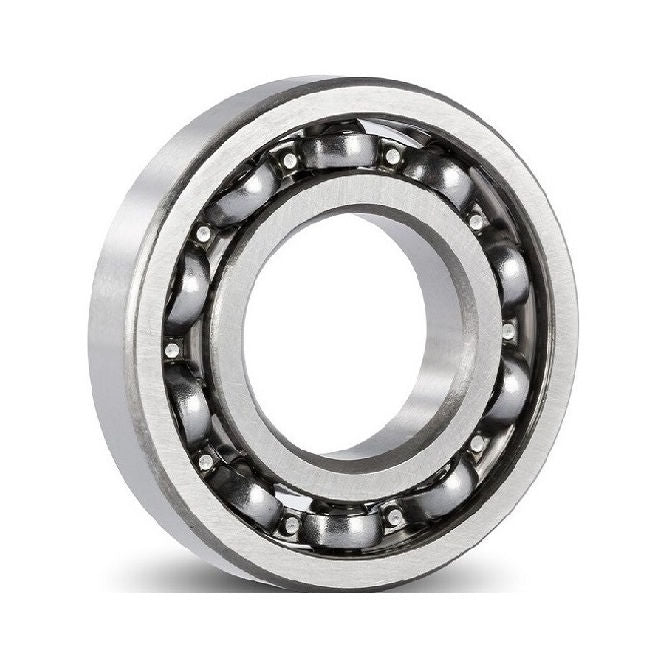

Single Row Ball Bearings - 9x17x4 mm Unflanged - Chrome Steel SAE 52100 Bearing

689-MC3-AF12 (Each)

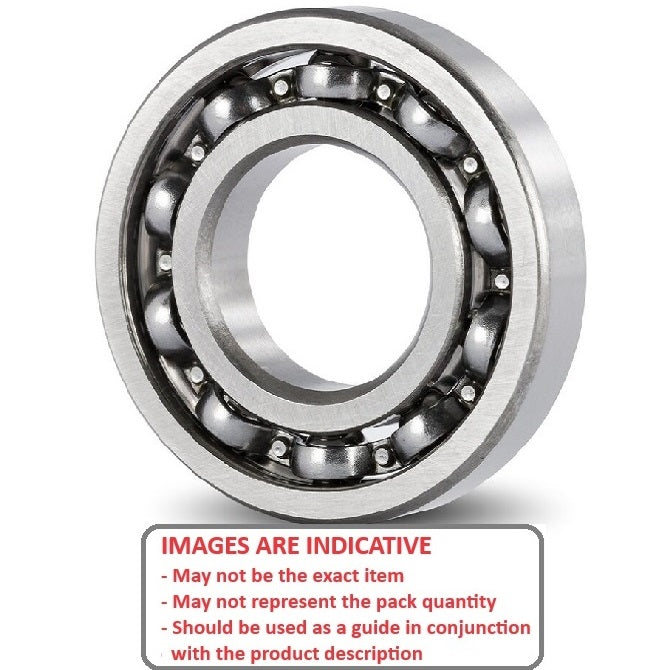

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 9x17x4 mm - Chrome Steel SAE 52100
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$4.77 AUD
$4.77 AUD
Each
Qty: 200 available now
Order 50 or more for $4.29 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 04, 2026

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Product Details


Open standard bearing with low-torque light oil lubricant

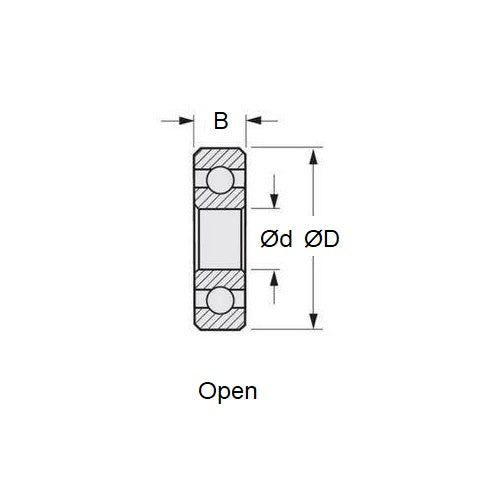

ID (d): 9.000mm
+ 0.000 / - 0.0075
(9.000mm is 0.354 in.)

Chrome Steel SAE 52100
  • ID (d): 9.000mm
    + 0.000 / - 0.0075
    (9.000mm is 0.354 in.)
  • O.D. (D): 17.000mm
    + 0.000 / - 0.0075
    (17.000mm is 0.669 in.)
  • Width (B): 4.000mm
    + 0.000 / - 0.125
    (4.000mm is 0.157 in.)
  • Precision Grade: Abec 1
  • Closure Type: Open
  • Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • SKF 618-9
  • WIB 618-9
  • GRW 689
  • ISO 689
  • NTN® 689
  • GRW 689-P6
  • RMB® UL917
  • NTN® W689
  • ADR X9
  • L1790
  • P6689
  • P6-689
  • 6189
  • 689P6
  • 689BASIC

Used for

  • RC Nitro Engine Parts
  • Associate Electrics® - 90 Degrees Port ABC - 0.15 - Replacement Bearing
  • China Shanghai® - CS Old - 46 - Replacement Bearing
  • China Shanghai® - CSG - 60 - Replacement Bearing
  • Cyclone® - 7 All Models - Replacement Bearing
  • Cyclone® - 90 All Models - Replacement Bearing
  • Force® - Side Exhaust - 0.12 - Replacement Bearing
  • Force® - Side Exhaust - 0.21 - Replacement Bearing
  • G-Mark - 45 All Models - Replacement Bearing
  • Kyosho® - GS15R - 61 - Replacement Bearing
  • Kyosho® - GT - 21 - Replacement Bearing
  • Mac® - 21 - Replacement Bearing
  • Megatech® - 1.4 All Models - Replacement Bearing
  • Megatech® - M-16 - 48 - Replacement Bearing
  • Ofna® - 15 2.5CC All Models - Replacement Bearing
  • OS Engines® - CV - 3500 - Replacement Bearing
  • OS Engines® - CV - 46 - Replacement Bearing
  • OS Engines® - CV Hyper With 10A - 12 - Replacement Bearing
  • OS Engines® - CV-A - 15 - Replacement Bearing
  • OS Engines® - CV-M - 15 - Replacement Bearing
  • OS Engines® - CV-MX - 15 - Replacement Bearing
  • OS Engines® - CVX - 12 - Replacement Bearing
  • OS Engines® - CVX - 15 - Replacement Bearing
  • OS Engines® - CVX Hyper With 10A - 12 - Replacement Bearing
  • OS Engines® - CZ-1 and 2 - 15 - Replacement Bearing
  • OS Engines® - CZ-A - 15 - Replacement Bearing
  • OS Engines® - CZ-R - 12 - Replacement Bearing
  • OS Engines® - CZ-Z - 12 - Replacement Bearing
  • OS Engines® - CZ-Z Recoil - 12 - Replacement Bearing
  • Super Tigre® - GH - 75 - Replacement Bearing
  • Thunder Tiger® - 60 All Models - Replacement Bearing
  • Thunder Tiger® - Pro - 12 - Replacement Bearing
  • Thunder Tiger® - Pro - 21 - Replacement Bearing
  • Tower® - 15BB ABC - 21 - Replacement Bearing
  • Traxxas® - 25 All Models - Replacement Bearing
    We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
    689MC3AF12, 689
