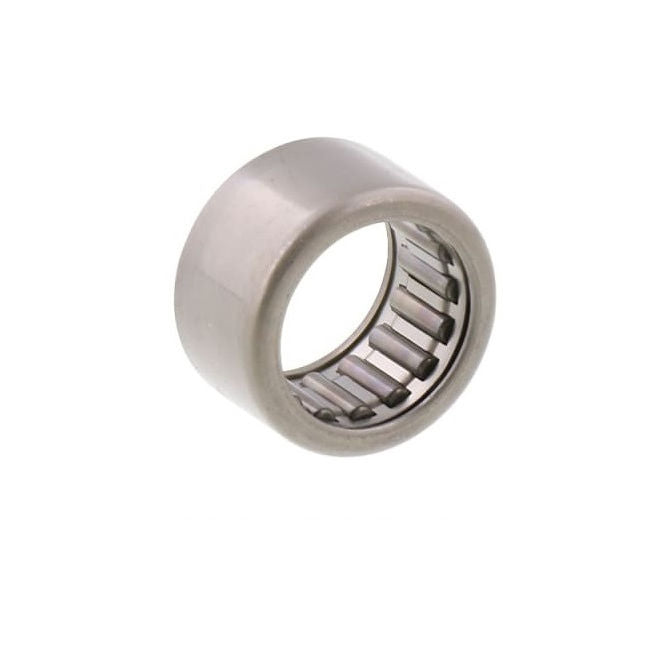

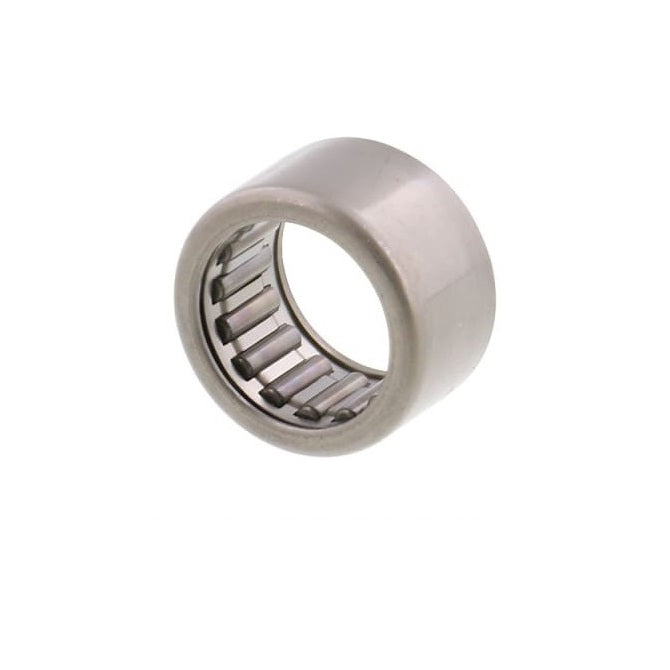

Needle Roller without Inner Ring Bearings - 9x13x10 mm / 440 Kgf Shell Type - Chrome Steel Shell

Name: 1083633 | NSO-0090-0130-0100-ST --- Needle Roller without Inner Ring Bearings - 9x13x10 mm / 440 Kgf Shell Type - Chrome Steel Shell
Rating: 5.0 (1 reviews)

NSO-0090-0130-0100-ST

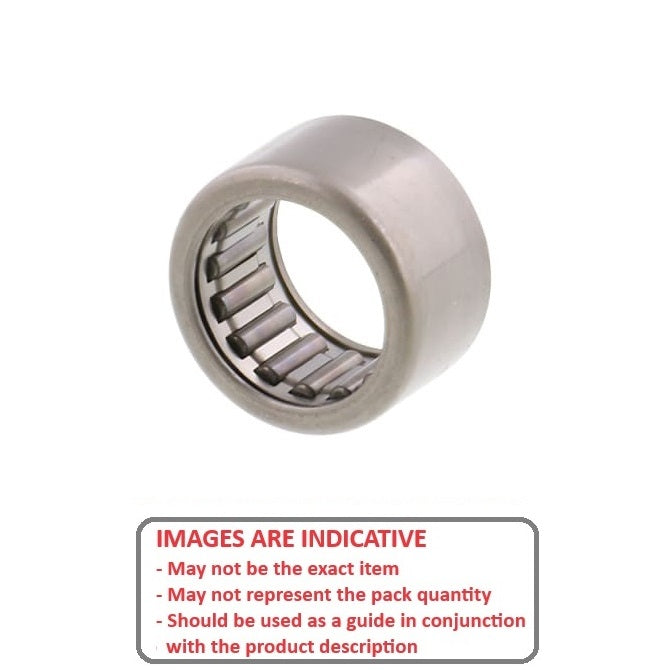

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Bearings - Needle Roller without Inner Ring - Shell Type - Open Ends

Additional resources:
Shafting

Price:

$12.32 AUD

~~$14.78 AUD~~ $12.32 AUD

Each
Backorder
Order 50 or more for $11.09 AUD Each

Product Details:

Shaft Diameter (d): 9.000mm
_{(9.000mm is 0.354 in.)}

Chrome Steel Shell

OD (D): 13.000mm
_{(13.000mm is 0.512 in.)}
Width (B): 10.000mm
_{(10.000mm is 0.394 in.)}
Basic Dynamic Load Rating: 440Kgf
Basic Static Load Rating: 530Kgf
Limiting Speed Grease: 15000RPM
Limiting Speed Oil: 24000RPM
Cage Type: Steel
Seals: None

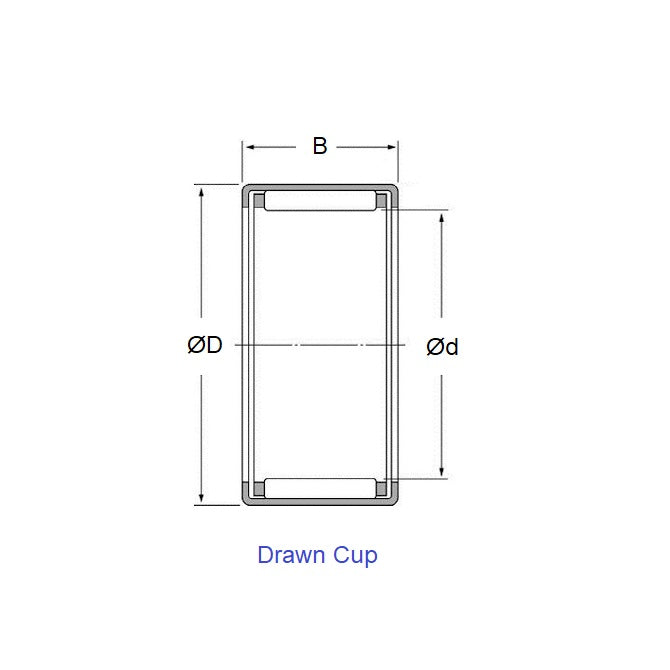

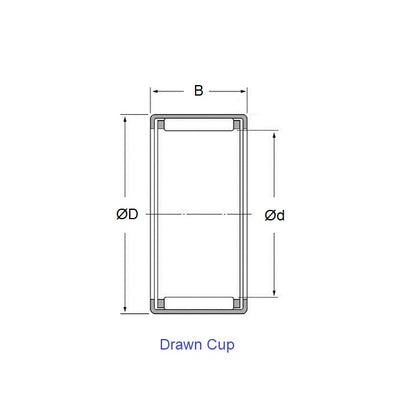

Type: Drawn Cup

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Alternative Parts Include:

ALTPART 5905K353
FAG HK0910
IKO TLA0910
IKO TLA910
Nachi TLA-910
S99NH2MBN0910

Used for:

RC Nitro Engine Parts
CMB - 45 Evo 2 and 2.2 - Rear Needle Roller Bearing
Super Tigre - S2500 RC 1.5C.I - Rod Needle Bearing Bottom
Super Tigre - S2500 RC 1.5C.I - Rod Needle Bearing Top

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
