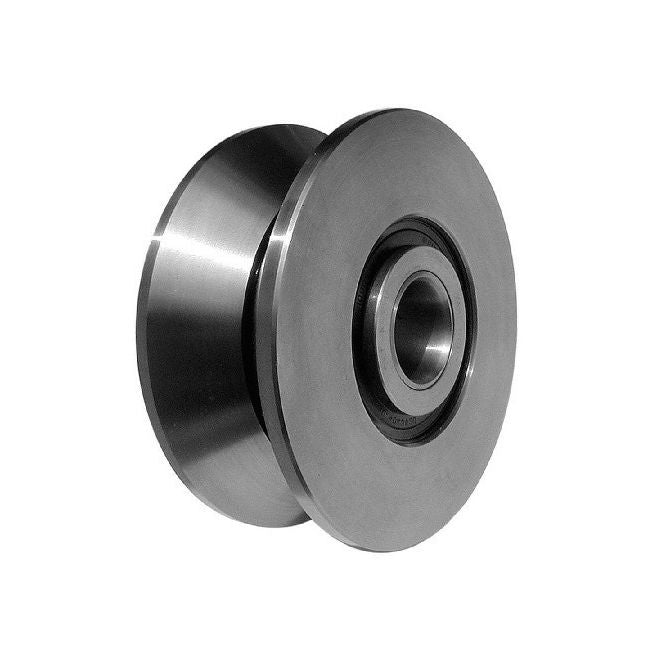

V-Groove Rollers - 95.25x39.68x19.05 mm - Steel Roller

CCF955RS (Each)

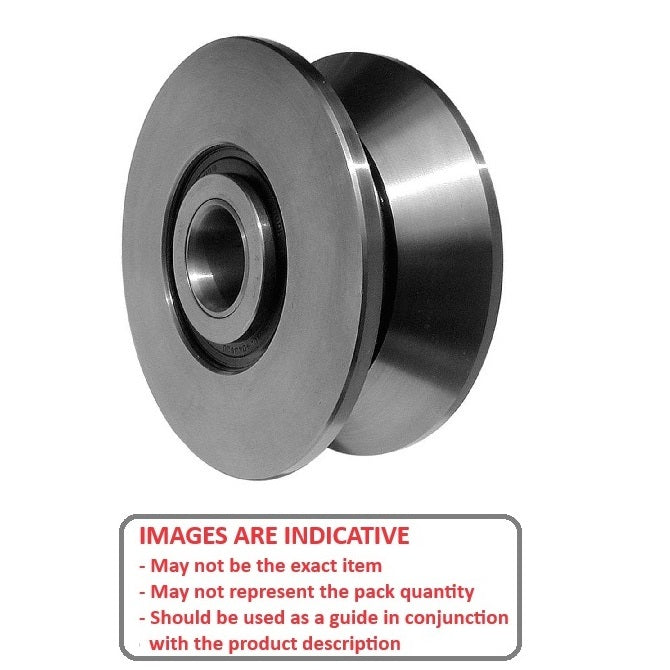

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

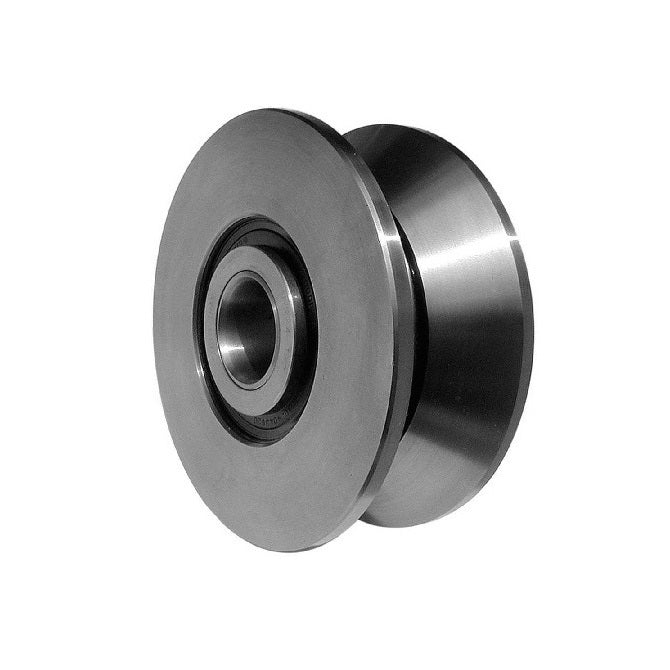

  • V-Groove Rollers - 95.25x39.68x19.05 mm - Steel
1 4

MBA

Store Name: Small Parts & Bearings

Category: Rollers - V-Groove
Price:
$861.32 AUD
$861.32 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $775.19 AUD
Backorder now! Backorders are expected before Jan 18, 2026

Base Category: Rollers - V-Groove

Top Level Category: Rollers - V-Groove

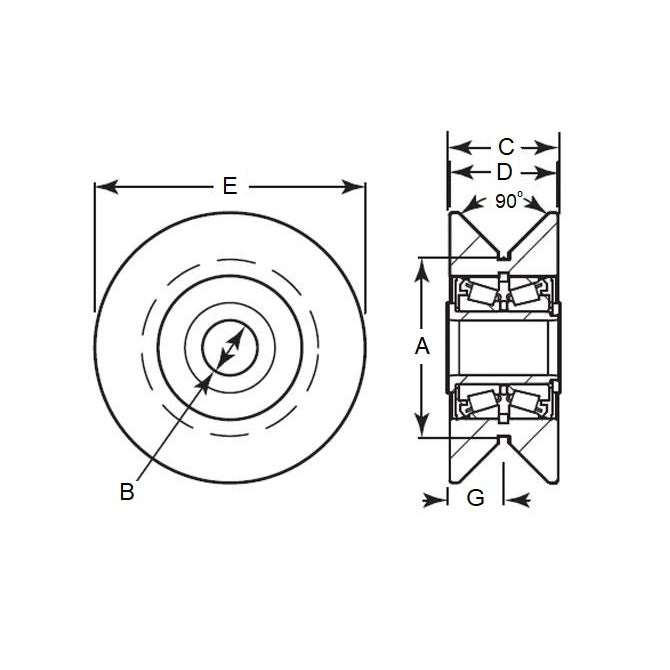

Product Details

Diameter (E): 95.25mm
(95.25mm is 3.75 in.)

Steel
  • Diameter (E): 95.25mm
    (95.25mm is 3.75 in.)
  • Overall Width (C): 39.68mm
    (39.68mm is 1.562 in.)
  • Bore (B): 19.050mm
    (19.050mm is 0.75 in.)
  • Groove Diameter (A): 63.500mm
  • Width (D): 38.100mm
  • Centre of Groove (G): 15.875mm
  • Dyanmic Radial Load: 3460.000kg
  • Dynamic Thrust Load: 2070.000kg

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • CCF-955
  • CCF955

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
