SP1-064-028B-009-064F-C
Sprockets - 9 Teeth x 18.18 mm x 11.13
MBA
Qty: 1 available now
Couldn't load pickup availability
Base Category: Sprockets - 6.35 x 2.8mm
Top Level Category: Sprockets - 6.35 x 2.8mm - Simplex - Carbon Steel - Finished Bore
Product Details:Teeth: 9Nr.
Carbon Steel

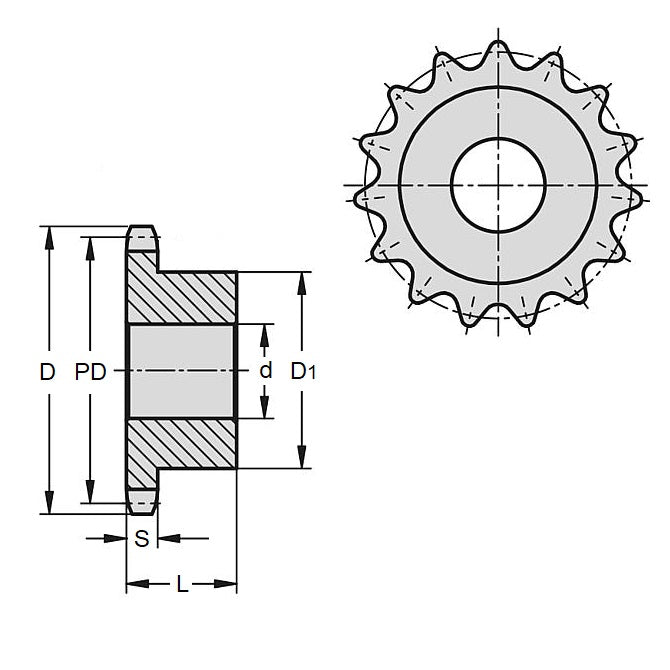

- PCD: 18.18mm
- Hub Diameter (D1): 11.13
- Overall Width (L): 12.70mm
- Type / Rows: Type 3s
- Finished Bore (d): 6.350mm
- Locking Method: 2 Set Screws 8-32 at 90 Deg
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Alternatives: 25BF9X1-4, 25BS9X1-4, 2737T1
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
