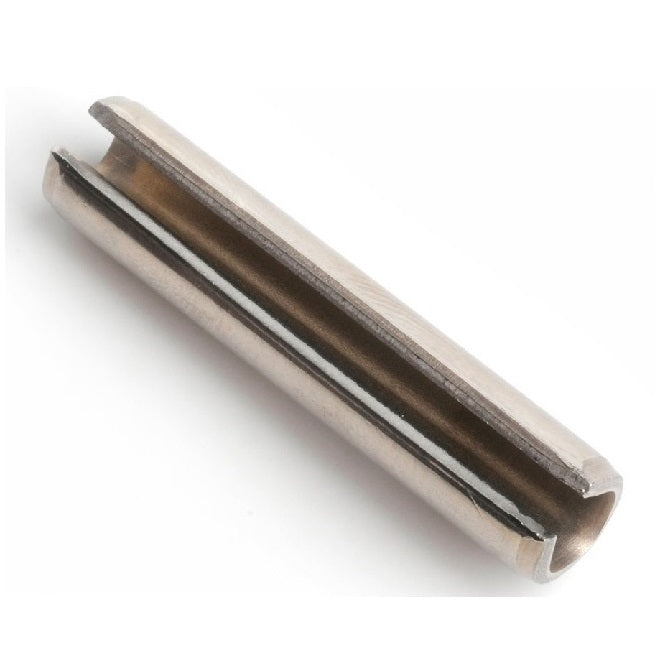

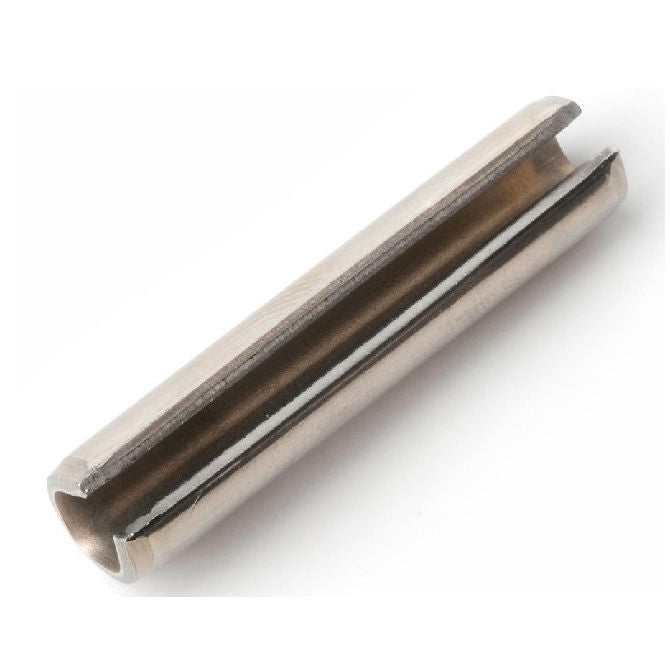

Roll Pins - 9.53x76.2x10.48 mm - Stainless Steel AISI 420C Rc 46-52

Name: 1088273 | RP095-0762-420 --- Roll Pins - 9.53x76.2x10.48 mm - Stainless Steel AISI 420C Rc 46-52
Rating: 5.0 (1 reviews)

RP095-0762-420

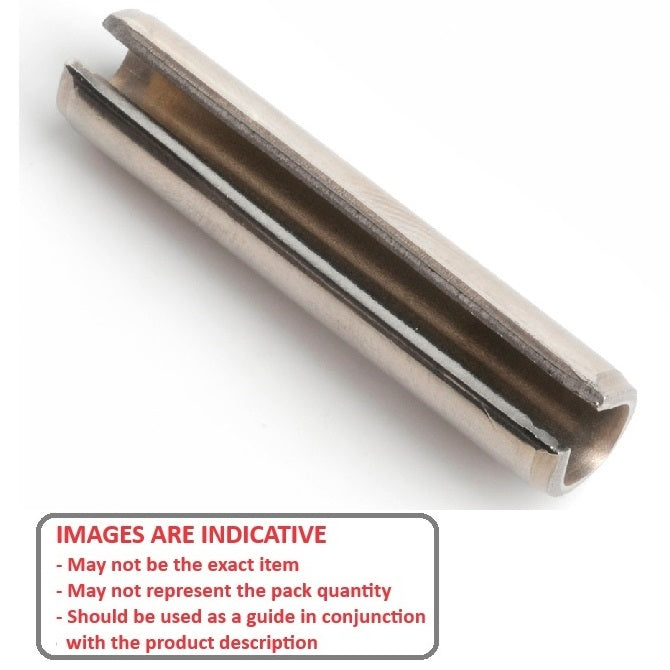

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Pins - Roll - Stainless Steel - 420 Grade

Additional resources:
Master Pins Catalogue PDF
Roll Pins Catalogue PDF
Coiled Pins

Price:

$8.50 AUD

Each
Backorder
Order 50 or more for $7.65 AUD Each

Product Details:

Additional stock available from USA subject to Prior Sale = 145

Nominal Diameter (D): 9.53mm
_{(9.53mm is 0.375 in.)}

Stainless Steel AISI 420C Rc 46-52

Length (L): 76.20mm
_{(76.20mm is 3 in.)}
Free Diameter: 10.48mm
_{(10.48mm is 0.413 in.)}
Thickness (S): 1.96mm
Chamfer Length (cL): 0.41-2.41mm
Chamfer Diameter (cD): 9.3mm
Standard: DIN7343/ISO8750

Brand: MBA
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

ALTPART 92383A790
P410
P-410

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
