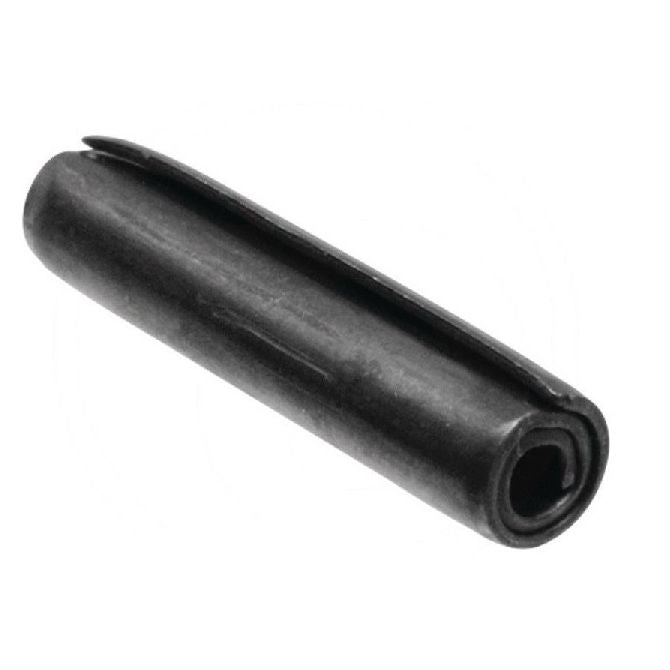

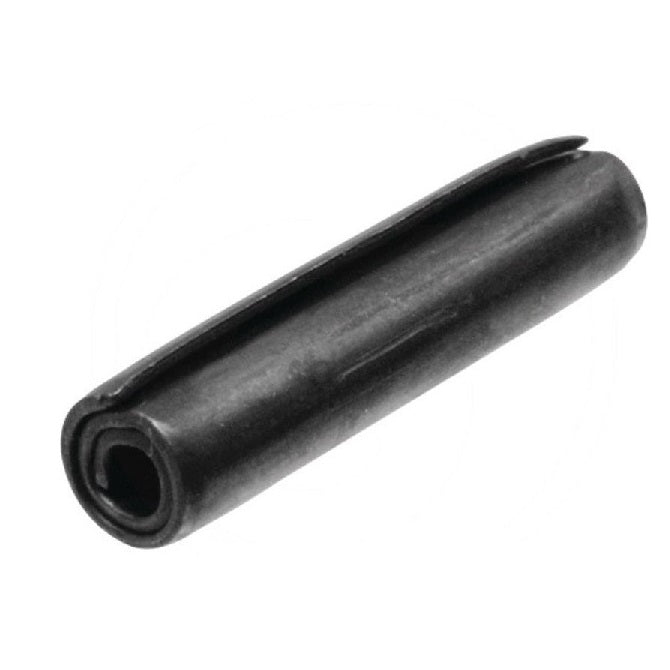

Coiled Pins - 9.53x57.15 - 9.53 - 9.73 - High Carbon Steel

PSP-095-057H-C

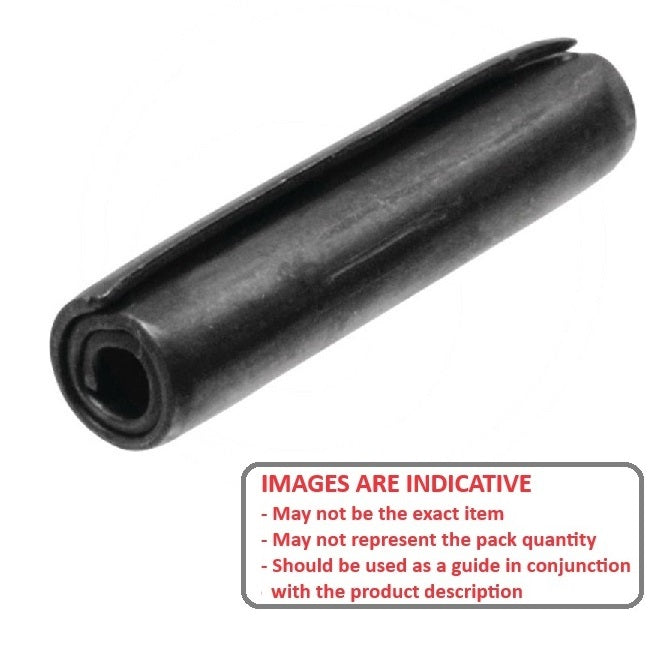

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Coiled Pins - 9.53x57.15 - 9.53 - 9.73 - Carbon Steel - High Carbon
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Master Pins Catalogue PDF
Roll Pins
Price:
$6.23 AUD
$6.23 AUD
Each
Qty: 20 available now
Order 50 or more for $5.61 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 16, 2025

Base Category: Pins - Coiled

Top Level Category: Pins - Coiled - Steel - Heavy Duty

Product Details:


Additional stock available from USA subject to Prior Sale = 299

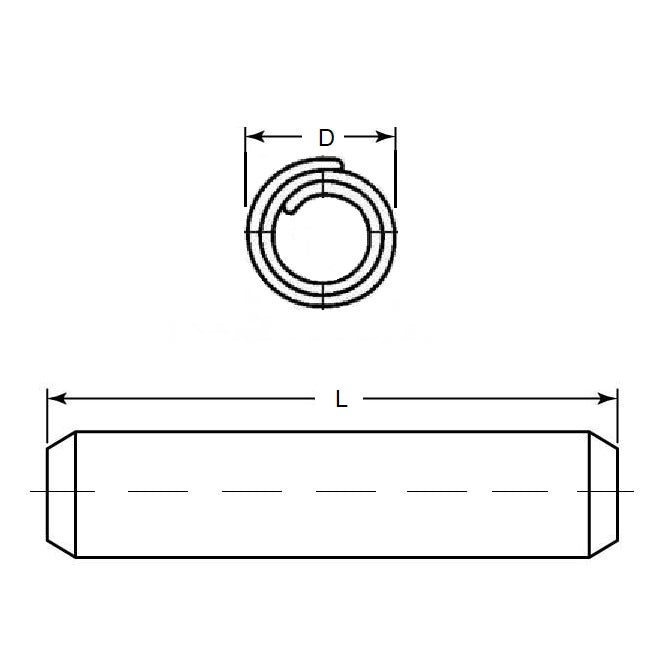

Nominal Hole Diameter: 9.53mm
(9.53mm is 0.375 in.)

High Carbon Steel
  • Length: 57.15mm
    +/- 0.75
    (57.15mm is 2.25 in.)
  • Drill Size: 9.53 - 9.73mm
    (9.53 - 9.73mm is 0.375 in.)
  • Loose Diameter: 9.80 - 10.16mm
  • ISO: Heavy Duty ASME B18.8.2 / ISO 8748
  • Hardness: RC 46-53 (HV 420 to 545)

Brand: MBA
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

  • NoCor SPC-375-2250H
  • SPC3752250H

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
