Wire Lock Lynch Pins - 9.53x44.45x3 mm Single Wire - Carbon Steel Spring Wire Zinc Plated

LYP-R1-095-044-CZ

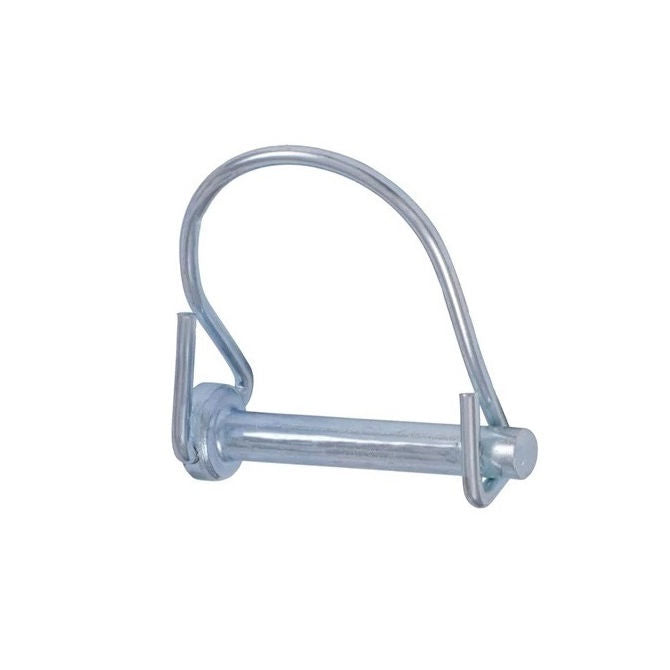

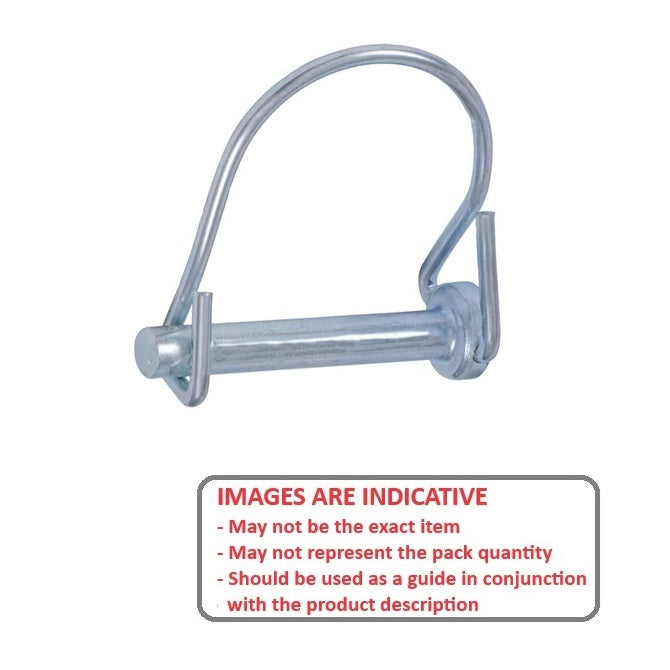

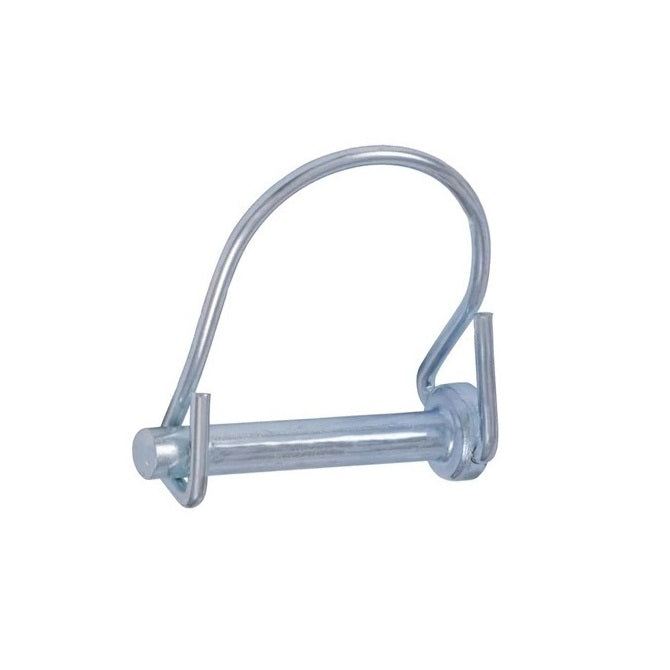

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Wire Lock Lynch Pins - 9.53x44.45x3 mm - Carbon Steel Spring Wire Zinc Plated
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Master Pins Catalogue PDF
Price:
$2.50 AUD
$3.00 AUD $2.50 AUD
Each
Qty: 44 available now
Order 50 or more for $2.25 AUD Each

Special Offer: If you purchase the remaining quantity of this item, you will receive the bulk price.
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 16, 2025

Base Category: Pins - Wire Lock Lynch

Top Level Category: Pins - Wire Lock Lynch - Single Wire - Round Carbon Steel

Product Details:


Additional stock available from USA subject to Prior Sale = 10651

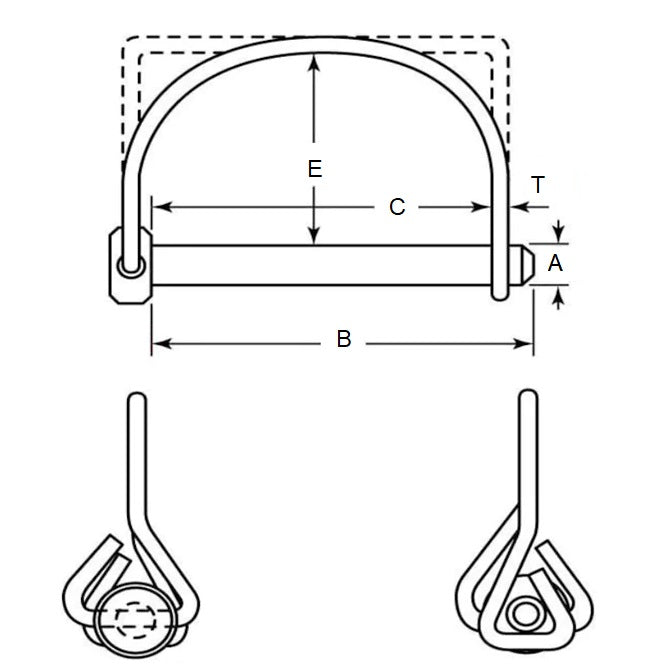

Pin Diameter (A): 9.53mm
- 0.051 / - 0.178
(9.53mm is 0.375 in.)

Carbon Steel Spring Wire Zinc Plated
  • Grip Length (C): 44.45mm
    + 0.00 / - 6.35
    (44.45mm is 1.75 in.)
  • Wire Thickness (T): 3.0mm
    (3.0mm is 0.118 in.)

  • +/- 3.18
  • Clearance To Wire (E): 38.1mm
  • Pin Length (B): 50.8mm
  • Weight Per Piece: 51g
  • Finish: Zinc Plated

Brand: MBA
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

  • NoCor SNIP-375-1750R
  • CLP574
  • CLP-574
  • SNIP3751750R

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
