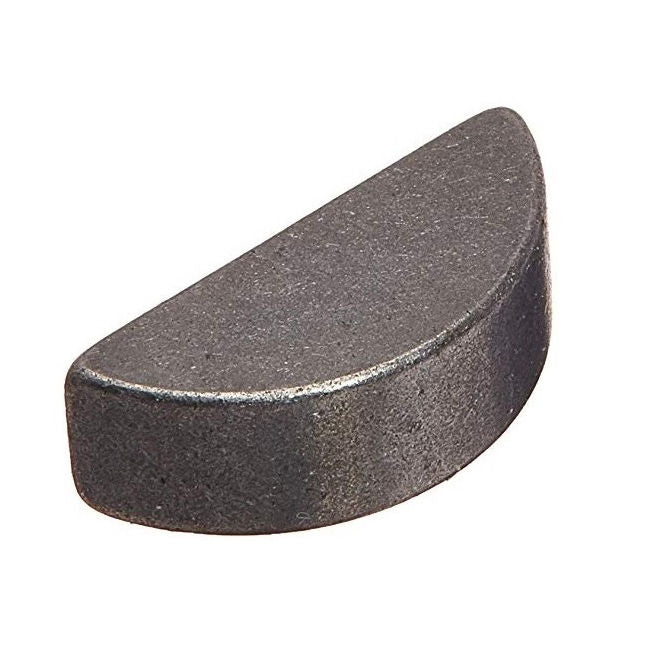

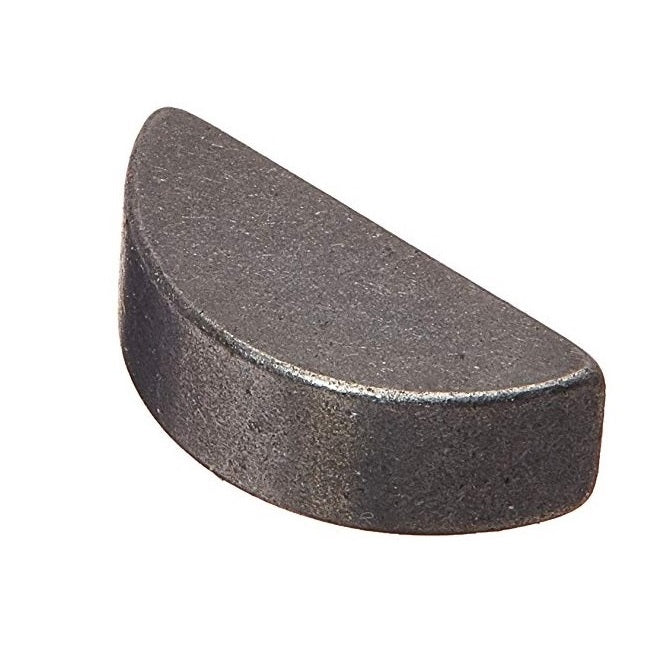

Woodruff Keys - 9.53x38.1x16 mm Plain - Carbon Steel C45

KW-095-381-C

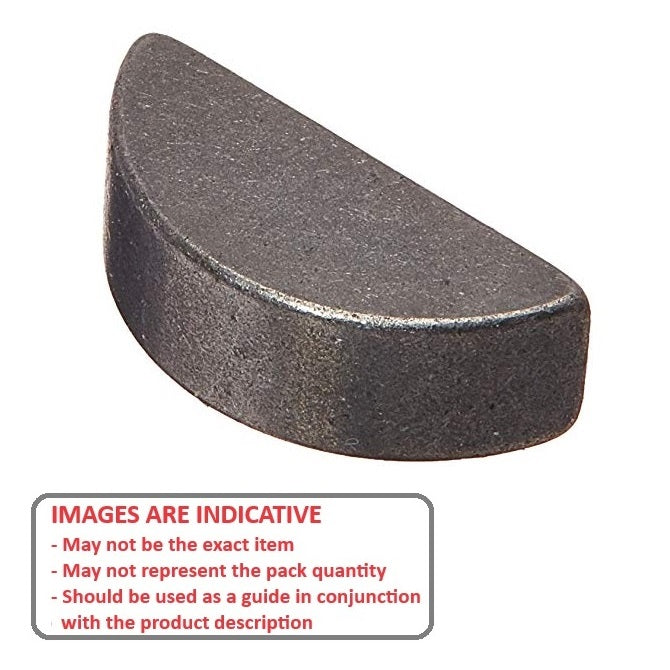

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Woodruff Keys - 9.53x38.1x16 mm - Carbon Steel C45
1 4

ExaktKey

Store Name: Small Parts & Bearings

Additional resources:
Keysteel Catalogue PDF
Price:
$2.95 AUD
$5.11 AUD $2.95 AUD
Each
Qty: 3 available now
Order 50 or more for $2.66 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Aug 16, 2025

Base Category: Keys - Woodruff

Top Level Category: Keys - Woodruff - Plain

Product Details:


Additional stock available from USA subject to Prior Sale = 6396

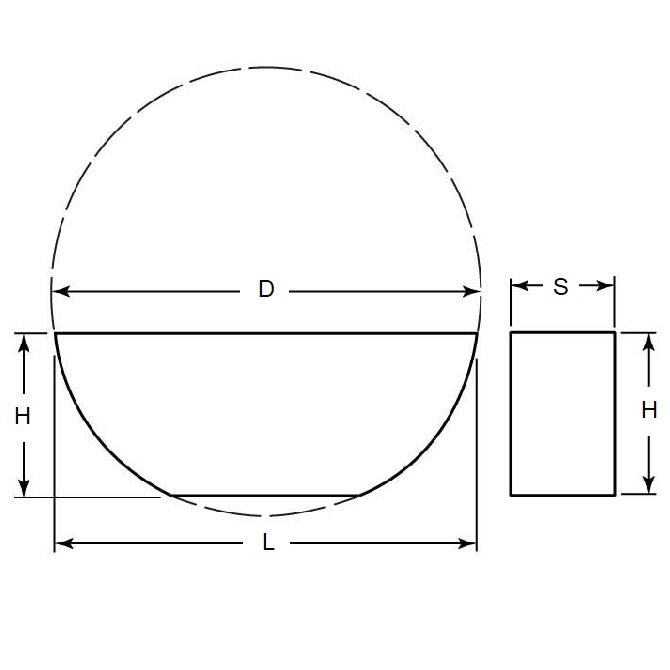

Thickness (S): 9.53mm
+/- 0.025
(9.53mm is 0.375 in.)

Carbon Steel C45
  • Basis Diameter (D): 38.10mm
    +/- 0.250
    (38.10mm is 1.5 in.)
  • Approx. Height (H): 16.0mm
    (16.0mm is 0.63 in.)
  • Finish: Plain
  • Hardness: HRB 80

Brand: ExaktKey
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

  • WOODRUFF 1212
  • ALTPART 98481A265
  • NoCor WKA-00G
  • NoCor WKC-00G
  • WKA00G
  • WKC00G

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
