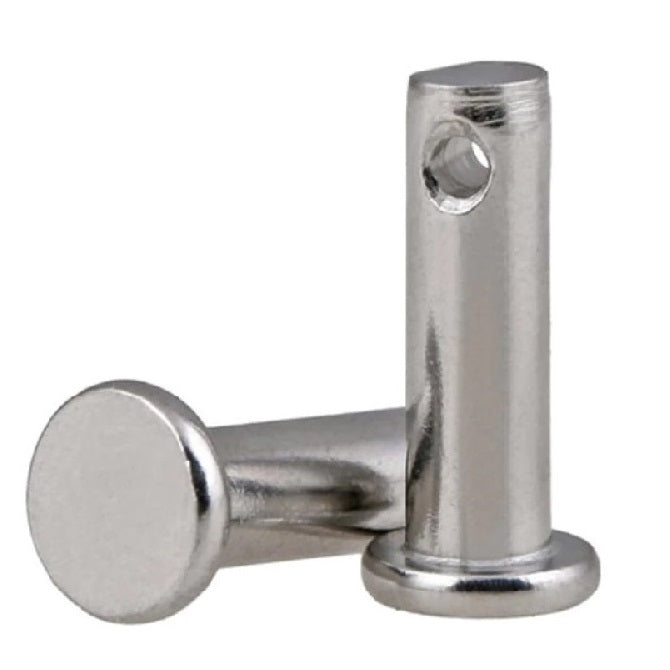

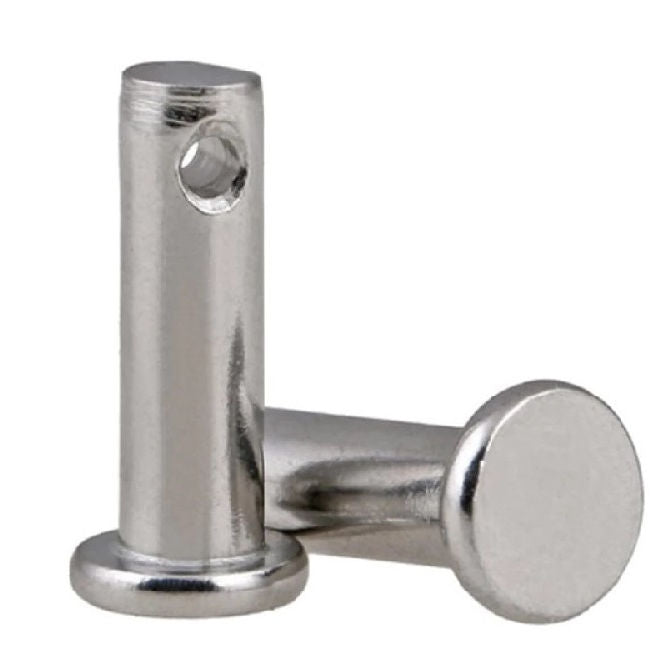

Clevis Pins - 9.53x32.14x38.1 mm Pin Locking - Stainless Steel 316 Similar to A4, 18-10

Name: 1088017 | CLP-095-0321-S6 (4 Pcs) --- Clevis Pins - 9.53x32.14x38.1 mm Pin Locking - Stainless Steel 316 Similar to A4, 18-10
Rating: 5.0 (1 reviews)

CLP-095-0321-S6 (4 Pcs)

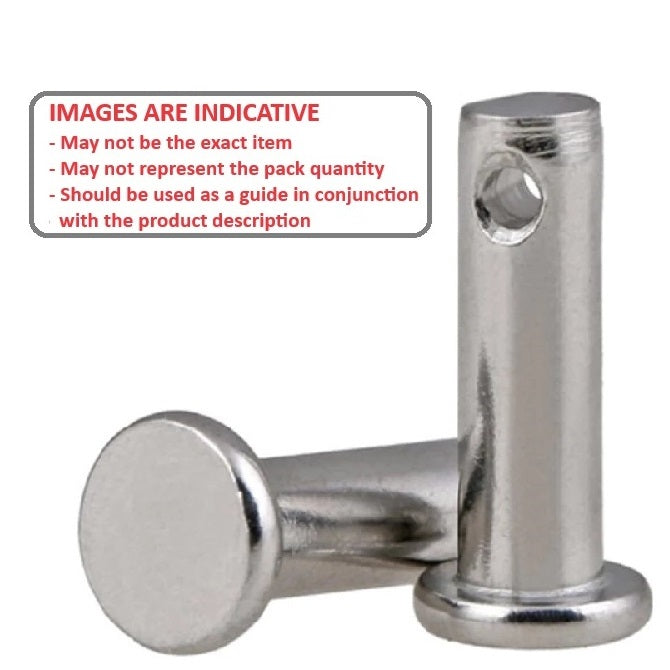

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Pins - Clevis - Pin Locking - Stainless Steel 316

Additional resources:
Master Pins Catalogue PDF
R-Clips
Split Pins

Price:

$10.00 AUD

~~$12.00 AUD~~ $10.00 AUD

per 4
Qty: 4 packs (16 pcs) available now

Product Details:

Additional stock available from USA subject to Prior Sale = 5328

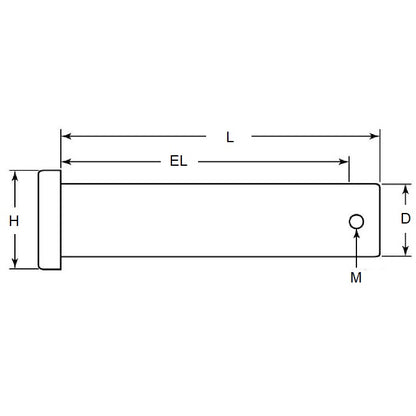

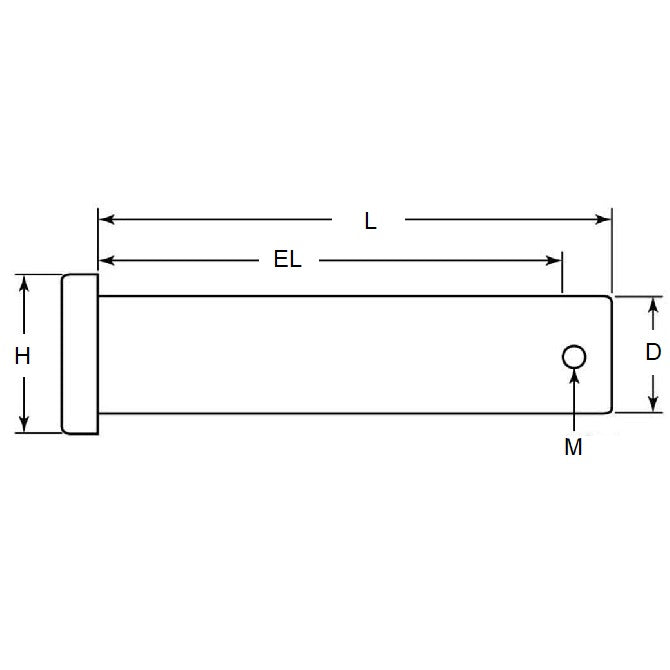

Nominal Pin Diameter (D): 9.53mm
_{- 0.05 / - 0.18}
_{(9.53mm is 0.375 in.)}

Stainless Steel 316 (Similar to A4, 18-10)

Grip Length (EL): 32.14mm
_{+ 0.51 / - 0.00}
_{(32.14mm is 1.265 in.)}
Nom. Length (L): 38.10mm
_{+ 0.51 / - 0.00}
_{(38.10mm is 1.5 in.)}
Ret. Pin Dia. (M): 2.4mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Alternative Parts Include:

ALTPART 92401A212
NoCor CLPS6-0375-1500
CLPS603751500

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
