GHK0953-0953-127-Z
Keys - 9.525 mm x 9.525 mm x 127 mm
MBA
Keysteel Catalogue PDF
Qty: 336 available now
Order 50 or more for $5.40 AUD Each
Couldn't load pickup availability
Base Category: Keys - Gib Head
Top Level Category: Keys - Gib Head - Zinc Plated

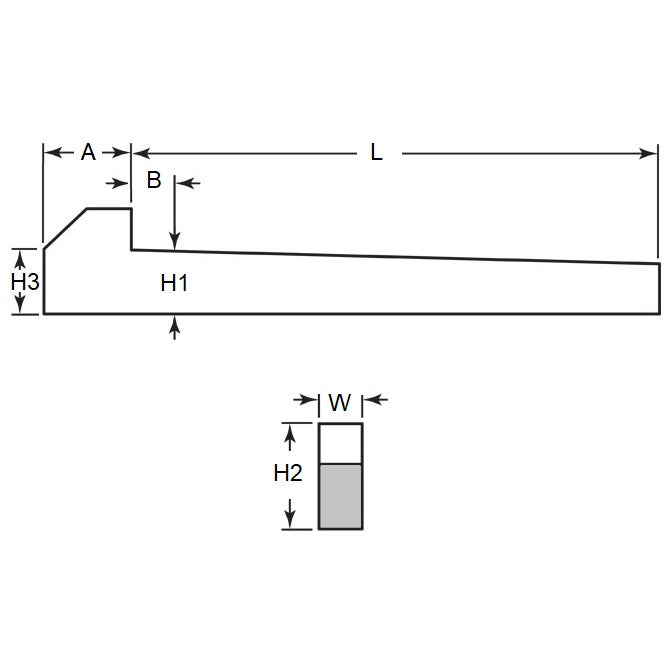

Product Details:Nominal Key Height (H1): 9.525mm
Zinc Plated Steel
- Width (W): 9.525mm
- Length (L): 127.0mm
- Head Height (h2) Approx.: 15.9mm
- Approx (B): 7.62mm
- Approx (H3): 10.31mm
- Taper: 1:100
- Standard: BS46
- Head Length (Approx) (A): 11.113mm
Brand: ExactKey
Country of Origin: TW
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
