Flat Washers - 9.53x22.23x1.21 mm Commercial - Steel - Mild Washer

Name: 1092924 | W0095-F-022-012-C (Pack of 50) --- Flat Washers - 9.53x22.23x1.21 mm Commercial - Steel - Mild Washer
Rating: 5.0 (1 reviews)

W0095-F-022-012-C (Pack of 50)

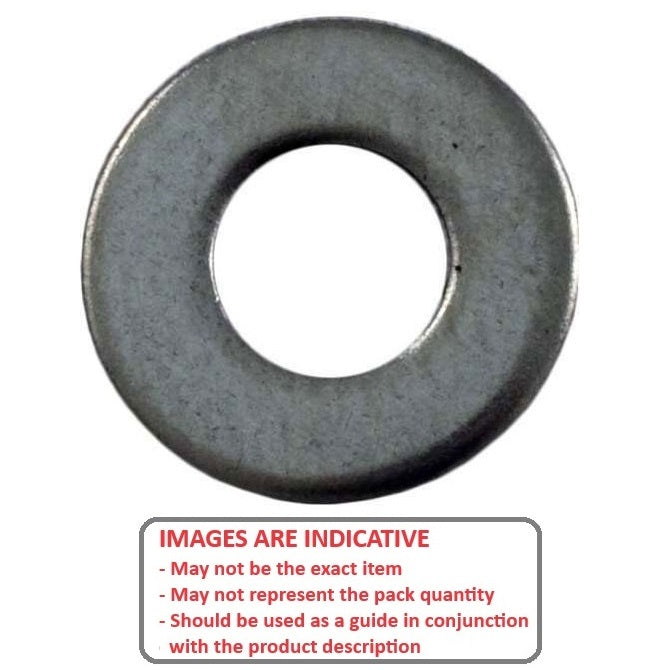

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Washers - Flat - Commercial - Mild Steel

Additional resources:
Washers and Spacers PDF Catalogue
Precision Shim Washer PDF Catalogue
Screws

Price:

$8.00 AUD

~~$15.20 AUD~~ $8.00 AUD

Priced, Stocked and Sold Per pack of 50

Excludes GST and overseas Taxes & Duties

Qty: 4 packs (200 pcs) available now

Product Details

Deleted Item. Available while stocks last.

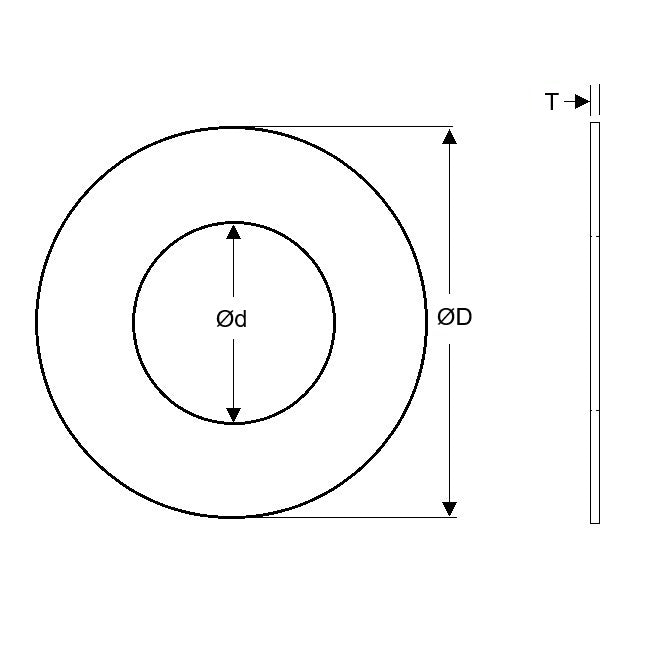

Nominal Inside Diameter (d): 9.53mm
_{ASME / ANSI B18.22.1}
_{(9.53mm is 0.375 in.)}

Steel - Mild

Nominal Inside Diameter (d): 9.53mm
_{ASME / ANSI B18.22.1}
_{(9.53mm is 0.375 in.)}
Nominal Outside Diameter (D): 22.23mm
_{ASME / ANSI B18.22.1}
_{(22.23mm is 0.875 in.)}
Thickness (T): 1.21mm
_{ASME / ANSI B18.22.1}
_{(1.21mm is 0.048 in.)}
Other: To Suit 3/8 Bolt
Grade: Commercial
Actual ID (Ref): 9.8mm

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

WASCA 1001187
ALTPART
91083A031

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0095F022012C, W0095F022
