Single Row Ball Bearings - 9.525x22.225x7.142 mm Unflanged - Chrome Steel SAE 52100

Name: 1086176 | R6A-2RS-MC3 --- Single Row Ball Bearings - 9.525x22.225x7.142 mm Unflanged - Chrome Steel SAE 52100
Rating: 5.0 (1 reviews)

R6A-2RS-MC3

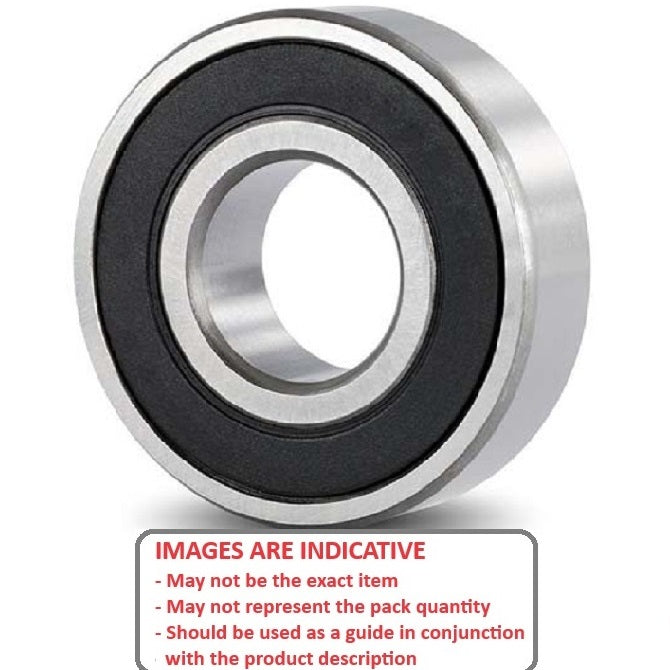

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$4.68 AUD

Each
Qty: 100 available now
Order 50 or more for $4.21 AUD Each

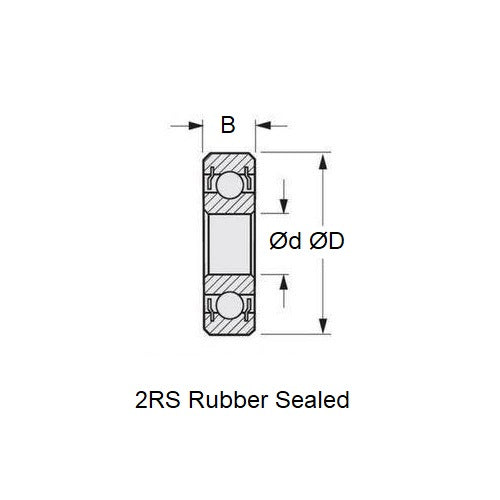

Product Details:

ID (d): 9.525mm
_{+ 0.000 / - 0.0075}
_{(9.525mm is 0.375 in.)}

Chrome Steel SAE 52100

OD (D): 22.225mm
_{+ 0.000 / - 0.010}
_{(22.225mm is 0.875 in.)}
Width (B): 7.142mm
_{+ 0.000 / - 0.125}
_{(7.142mm is 0.281 in.)}
Precision Grade: Abec 1
Closure Type: 2RS
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Alternative Parts Include:

ALTPART 60355K703
KSK 99R6
Nachi 99R6
Nachi 9R6
FAG EE3-2RS
FAG EE3-RS
SKF EEB3-2RS
SKF EEB3-RS
ISO R62RS
ISO R6-2RS
WIB R6-2RSR
NTN R6A-2RUMC3
BCA R6CC
NTN R6LLB
NTN R6LLU
ISO R6RS
ISO R6-RS
WIB R6-RSR
FAFNIR S3PP
EE32RS
EE3RS
EEB32RS
EEB3RS
R6VV
R6ARSMC3
R6A2RUMC3
R6A2RSMC3
R6A-2RSMC3
R6DDU
R6A-RSMC3
R6RSR
R62RSR
R6ABASIC

Used for:

RC Nitro Engine Parts
ASP - 52 New - Front Bearing
ASP - S46A - Front Bearing
Enya - 2C 733 - 45 - Bearing 9.53-22.23-7.14mm
Enya - 4C - 35 - Bearing 9.53-22.23-7.14mm
Enya - 4C - 46 - Bearing 9.53-22.23-7.14mm
Enya - 4C - 80 - Bearing 9.53-22.23-7.14mm
Enya - 4C - Old - 40 - Bearing 9.53-22.23-7.14mm
Enya - BB 6001 - 29 - Bearing 9.53-22.23-7.14mm
Enya - BB 6001 - 35 - Bearing 9.53-22.23-7.14mm
Enya - BB 6001 - 53 - Bearing 9.53-22.23-7.14mm
Enya - III - 120 - Bearing 9.53-22.23-7.14mm
Enya - III - 45 - Bearing 9.53-22.23-7.14mm
Evolution - 40 ALPHA - 60 - Bearing 9.53-22.23-7.14mm
Evolution - 40NT - 36 - Bearing 9.53-22.23-7.14mm
Evolution - 46NT - 40 - Bearing 9.53-22.23-7.14mm
Irvine - 46 Red - 2 Stroke - Front Bearing
Irvine - 53 - 2 Stroke - Front Bearing
Irvine - 61 - 2 Stroke - Front Bearing
Irvine - 72 - 2 Stroke - Front Bearing
Irvine - SP40 - 2 Stroke - Front Bearing
Magnum Power - Pro - 40 - Bearing 9.53-22.23-7.14mm
Magnum Power - XLS 91A - 40 - Bearing 9.53-22.23-7.14mm
Mutunuc - Taiwan - 21 - Bearing 9.53-22.23-7.14mm
OS - FS FI Surpass II - 70 - Bearing 9.53-22.23-7.14mm
OS - FS II Surpass With Pump 91 - Bearing 9.53-22.23-7.14mm
OS - FS Surpass II 4C - 120 - Bearing 9.53-22.23-7.14mm
OS - FS Surpass RC 4C 91 - 40 - Bearing 9.53-22.23-7.14mm
OS - FX - 46 - Bearing 9.53-22.23-7.14mm
OS - HWC - 40 - Bearing 9.53-22.23-7.14mm
OS - RF ABC LS - 21 - Bearing 9.53-22.23-7.14mm
OS - RF-P Hanno Special - 61 - Bearing 9.53-22.23-7.14mm
OS - RX-H - 140 - Bearing 9.53-22.23-7.14mm
OS - RX-HGL - 140 - Bearing 9.53-22.23-7.14mm
OS - SF - 40 - Bearing 9.53-22.23-7.14mm
OS - SF ABC - 46 - Bearing 9.53-22.23-7.14mm
OS - SF Ring - 40 - Bearing 9.53-22.23-7.14mm
OS - SF-H ABC RC LS - 46 - Bearing 9.53-22.23-7.14mm
OS - SF-H RC LS - 61 - Bearing 9.53-22.23-7.14mm
OS - SFN-H RC With 7H - 40 - Bearing 9.53-22.23-7.14mm
OS - SF-P - 61 - Bearing 9.53-22.23-7.14mm
OS - SX-H - 32 - Bearing 9.53-22.23-7.14mm
OS - SX-H Ring - 50 - Bearing 9.53-22.23-7.14mm
OS - SX-H Ring C Spec - 61 - Bearing 9.53-22.23-7.14mm
OS - SX-H Ring C Spec With Pump - 91 - Bearing 9.53-22.23-7.14mm
OS - SX-HGL WC - 91 - Bearing 9.53-22.23-7.14mm
OS - SZ-H - 32 - Bearing 9.53-22.23-7.14mm
OS - SZ-H - 37 - Bearing 9.53-22.23-7.14mm
OS - VF - 12 - Bearing 9.53-22.23-7.14mm
OS - WC - 21 - Bearing 9.53-22.23-7.14mm
Saito - 82 - 100 - Bearing 9.53-22.23-7.14mm
Saito - FA 82A - 56 - Front Bearing 9.525-22.225-7.142mm
Saito - FA 91S - 72 - Front Bearing 9.525-22.225-7.142mm
Thunder Tiger - EK4 - -21 - Bearing 9.53-22.23-7.14mm
Thunder Tiger - H - 70 - Bearing 9.53-22.23-7.14mm
Thunder Tiger - Pro - 36 - Bearing 9.53-22.23-7.14mm
Thunder Tiger - Pro - 40 - Bearing 9.53-22.23-7.14mm
Thunder Tiger - Pro - 46 - Bearing 9.53-22.23-7.14mm
Thunder Tiger - Pro H - 36 - Bearing 9.53-22.23-7.14mm
Thunder Tiger - Pro H BB - 46 - Bearing 9.53-22.23-7.14mm
YS - 80 - 91 - Bearing 9.53-22.23-7.14mm
YS - 80 ST - 140 - Bearing 9.53-22.23-7.14mm
YS - Old - 10 - Bearing 9.53-22.23-7.14mm
YS - ST H - 120 - Bearing 9.53-22.23-7.14mm
YS - ST2 61 Heli - 120 - Bearing 9.53-22.23-7.14mm
YS - ST4 91 Heli - 61 - Bearing 9.53-22.23-7.14mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
