Single Row Ball Bearings - 9.525x22.225x6.35 mm / 7.95 mm - Chrome Steel SAE 52100

WR6D-2PE-MAX

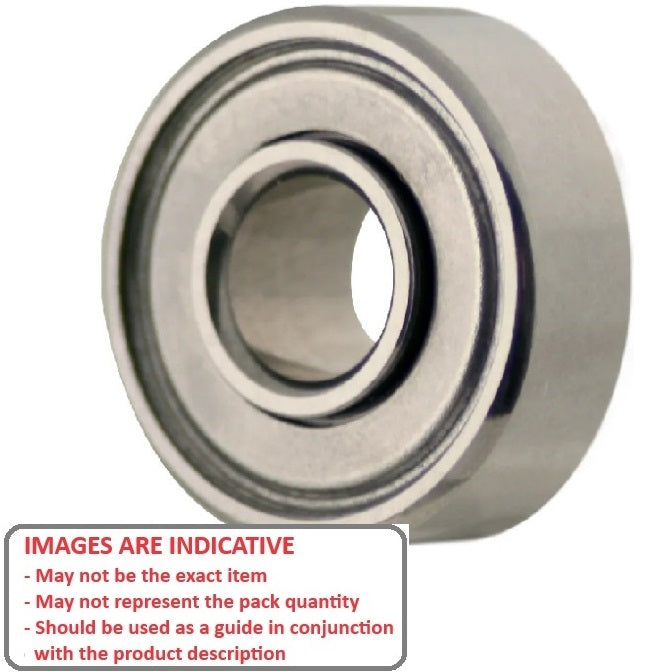

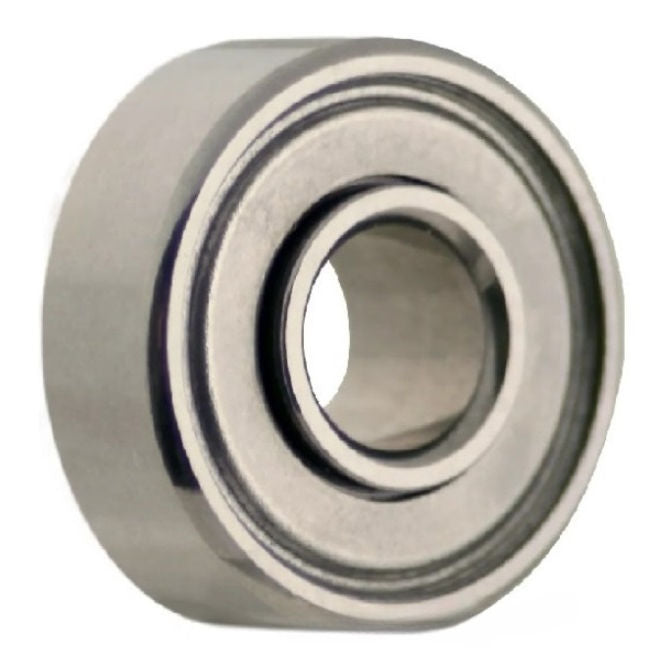

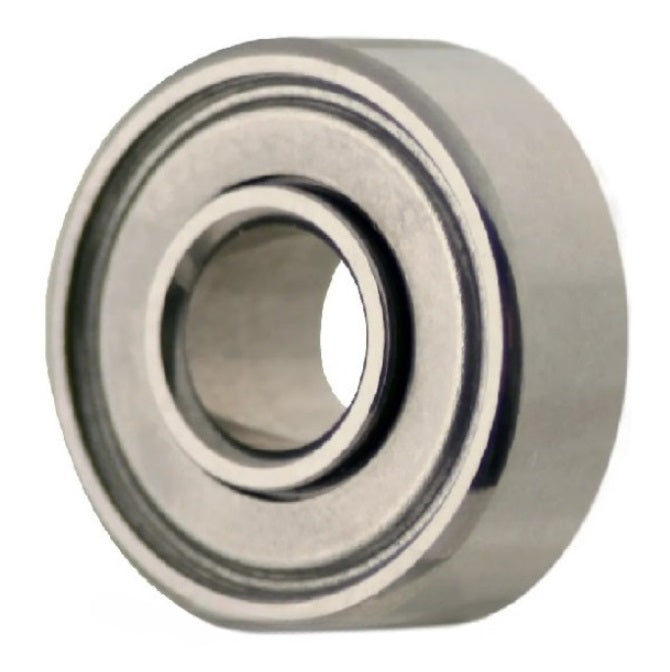

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 9.525x22.225x6.35 mm / 7.95 mm - Chrome Steel SAE 52100
1 4

ECO

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$14.00 AUD
$44.44 AUD $14.00 AUD
Each
Qty: 100 available now
Order 50 or more for $12.60 AUD Each
Only 100 may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Extended Inner

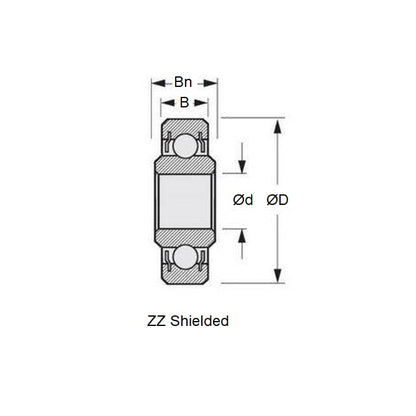

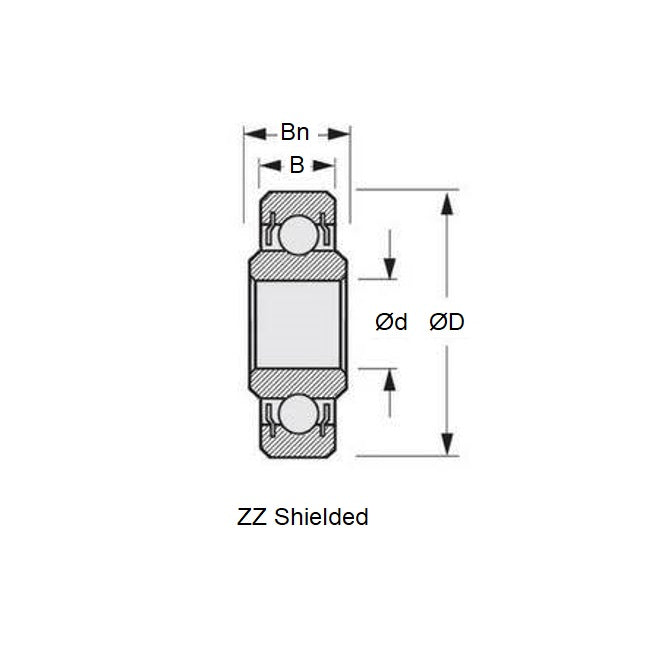

Product Details:

ID (d): 9.525mm
+ 0.000 / - 0.0075
(9.525mm is 0.375 in.)

Chrome Steel SAE 52100
  • OD (D): 22.225mm
    + 0.000 / - 0.010
    (22.225mm is 0.875 in.)
  • Width (B): 6.350mm
    + 0.000 / - 0.125
    (6.350mm is 0.25 in.)
  • Inner Ring Width (Bn): 7.950mm
  • Precision Grade: Abec 1
  • Closure Type: 2PE
  • Bearing Type: Radial with Extended Inner
  • Maximum Capacity Design for Bike Applications. Shields with poyethylene under-seal.

Brand: ECO
Country of Origin: JP

Alternative Parts Include: WR6D, WR6D2RSMAX, WR62PEMAX, KP6AXMAX, KP6AX-MAX, Bicycle, WR6DBASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
