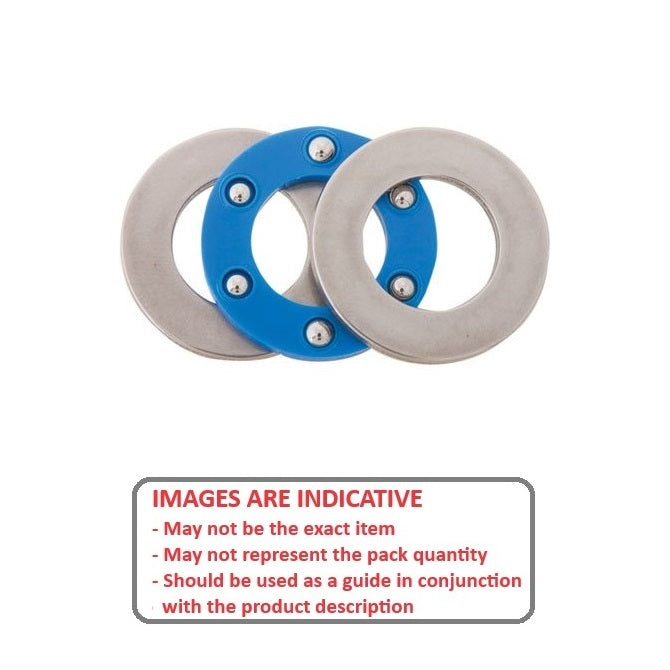

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

T-0095-0204-F-NY

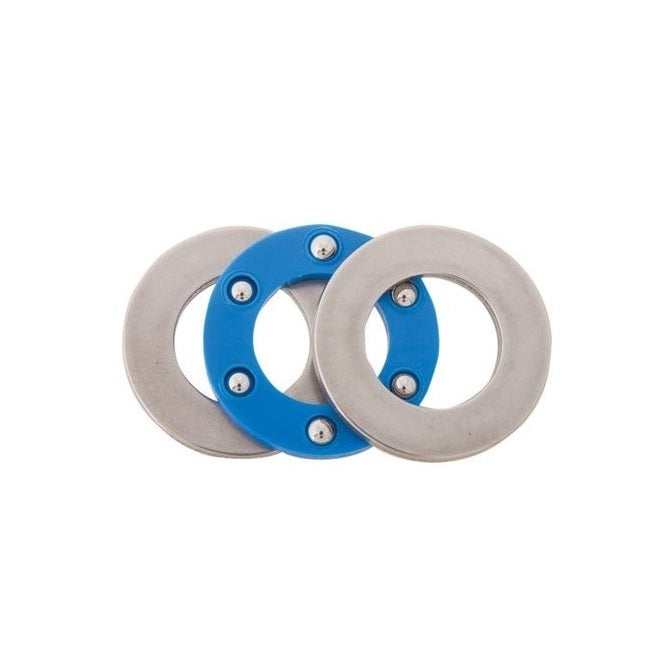

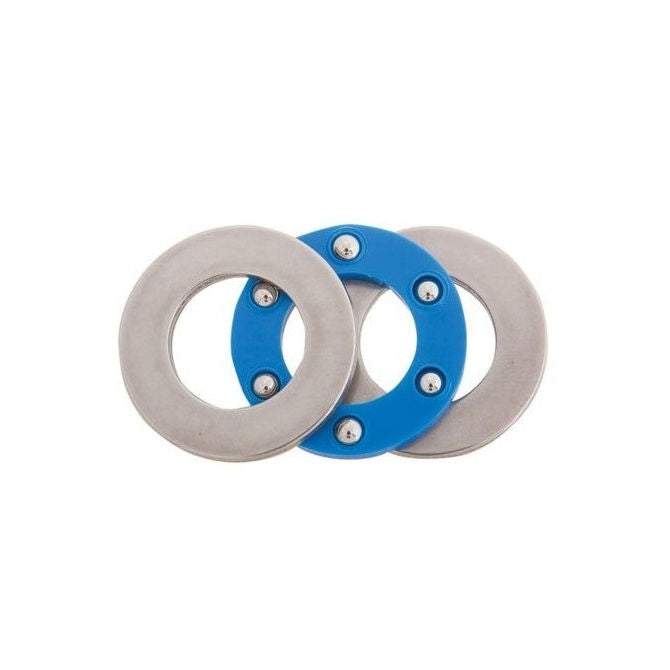

Thrust Ball Bearings - 9.525 mm x 20.638 mm x 6.35 mm / 10 mm

Name: 1087997 | T-0095-0204-F-NY --- Thrust Ball Bearings - 9.525 mm x 20.638 mm x 6.35 mm / 10 mm
Brand: MBA
SKU: T00950204FNY
Price: 10.68 AUD
Availability: InStock

MBA

Category: Bearings - Thrust Ball - Flat - Chrome Steel

Additional resources:
Thrust Bearings PDF Catalogue
Shafting

Price:

$10.68 AUD

Each
Qty: 1 available now
Order 50 or more for $9.61 AUD Each

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Feb 02, 2025

Quantity

Base Category: Bearings - Thrust Ball

Top Level Category: Bearings - Thrust Ball - Flat - Chrome Steel

Product Details:

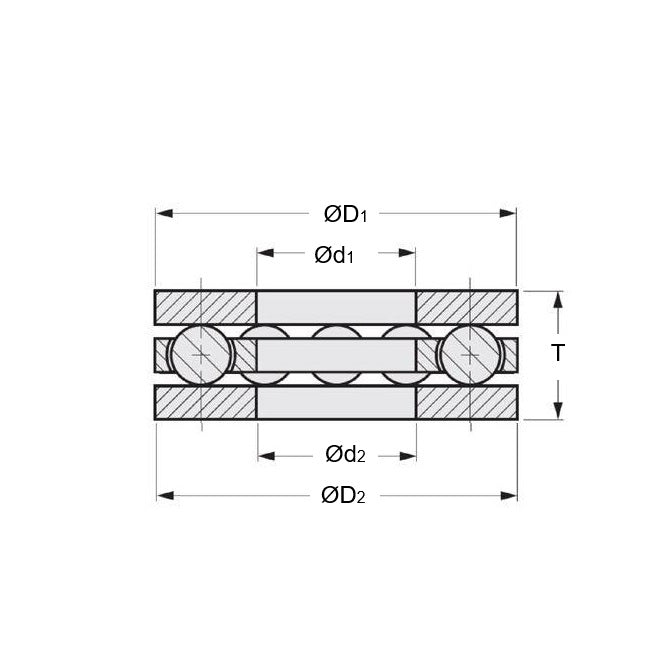

Nominal Shaft Size (d1): 9.525mm
_{+ 0.076 / + 0.203}

Chrome Steel

OD (D1): 20.638mm
_{- 0.013 / - 0.208}
Thickness (T): 6.350mm
_{+ 0.076 / - 0.127}
Bore (d2): 9.525mm
_{- 0.025 / - 0.202}
OD (D2): 20.638mm
_{- 0.025 / - 0.202}
Dynamic Load Capacity: 35kgf
Material (Balls): SAE 52100 Chrome Steel
Cage Type: Moulded Nylon

Brand: MBA
Country of Origin: JP

Alternatives: A7Z7-037, AFS-A1-037, B5-5, FT3-8, TQ-0

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
