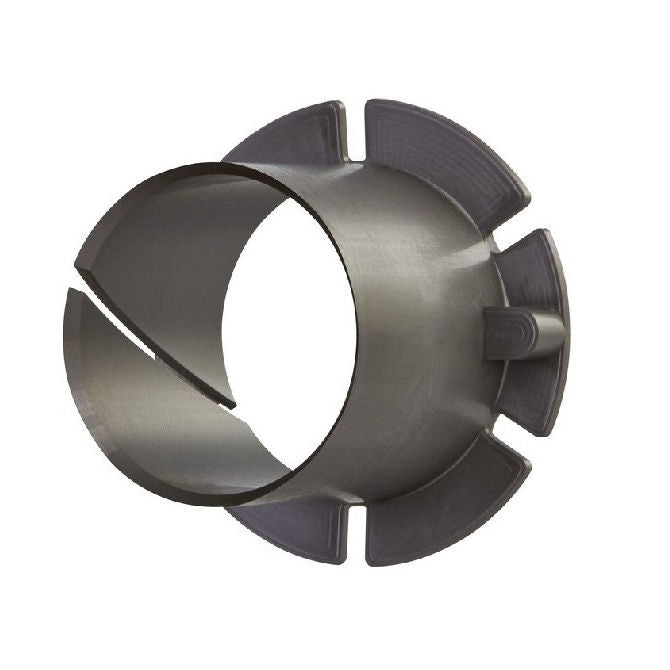

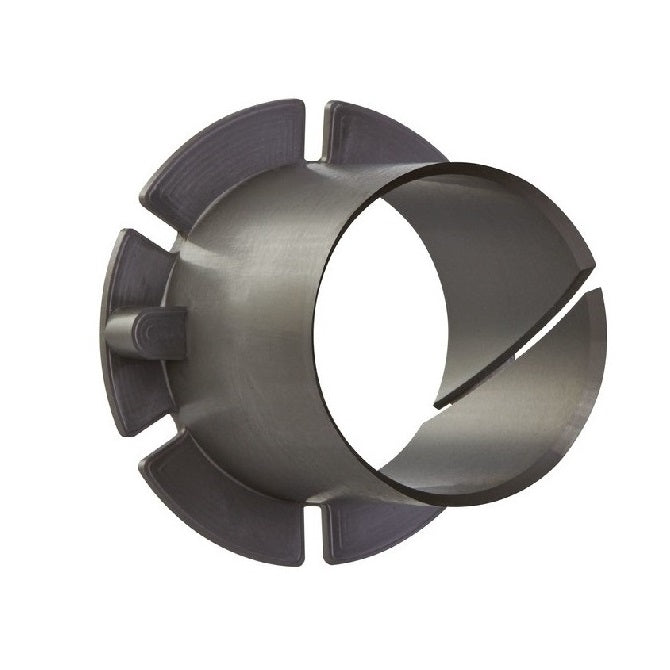

Clip Bushes - 9.525x11.1x9.525 mm Bevelled Edge - Plastic Bush

BF0095-0111-0095-PCB (Pack of 100)

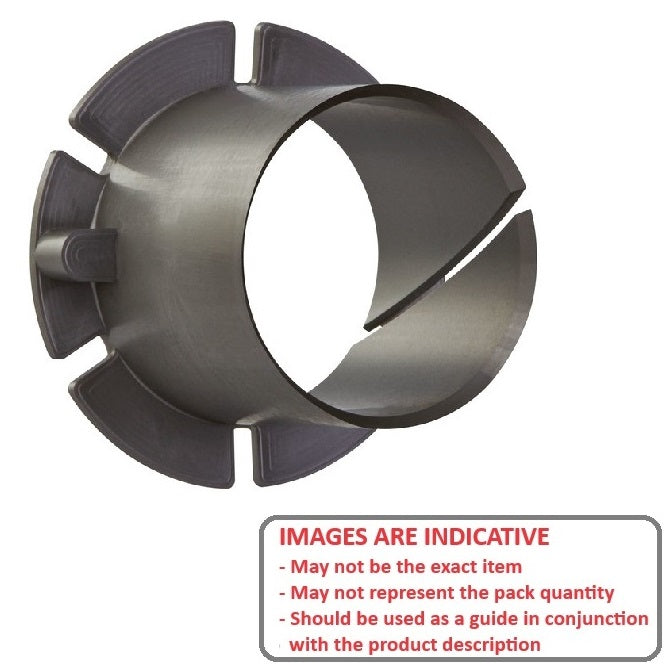

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Clip Bushes - 9.525x11.1x9.525 mm - Plastic
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Bushes PDF Catalogue
Price:
$182.59 AUD
$182.59 AUD
Priced, Stocked and Sold Per pack of 100
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more packs of 100 (5000 pcs)
for $164.33 AUD per 100 pack
Backorder now! Backorders are expected before Oct 23, 2026

3/8x7/16x3/8 inch Bush - 9.525x11.1x9.525 mm Clip Bushes - Plastic - Sold Per 100:

Base Category: Bushes - Clip

Top Level Category: Bushes - Clip - Bevelled Edge

Product Details

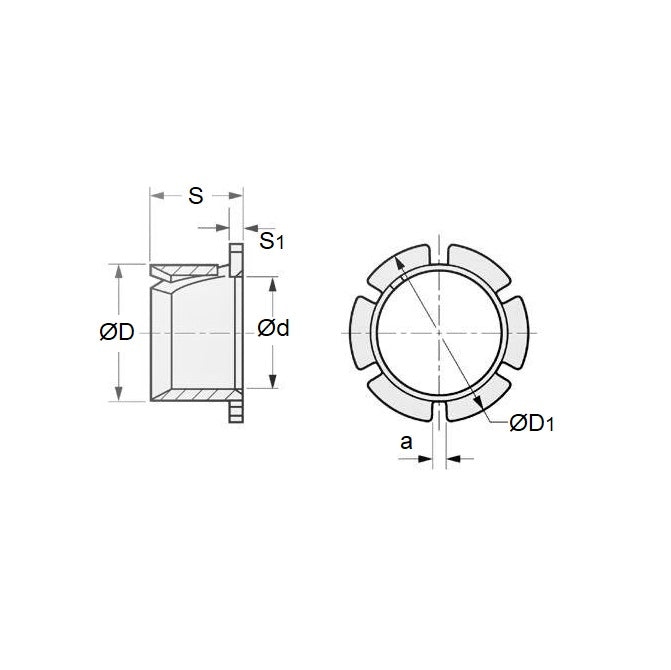

Nominal Inside Diameter (d): 9.525mm
(9.525mm is 0.375 in.)

Plastic
  • Nominal Inside Diameter (d): 9.525mm
    (9.525mm is 0.375 in.)
  • Nominal Outside Diameter (D): 11.100mm
    (11.100mm is 0.437 in.)
  • Overall Length: 9.525mm
    (9.525mm is 0.375 in.)
  • Flange Dia (D1): 15.081mm
  • Flange Width (S1): 0.76mm
  • Min Housing Bore: 10.831mm
  • Max Housing Bore: 11.100mm
  • Min Shaft Size: 9.500mm
  • Max Shaft Size: 9.525mm
  • Sheet Metal Thickness: 1.00

Brand: MBA
Country of Origin: DE

Product Compliance and Data

Similar to

  • S99GMY-038044375
  • S99GMY038044375

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BF009501110095PCB, BF009501110095
