608-ZZS-MC45-T9H-AF12

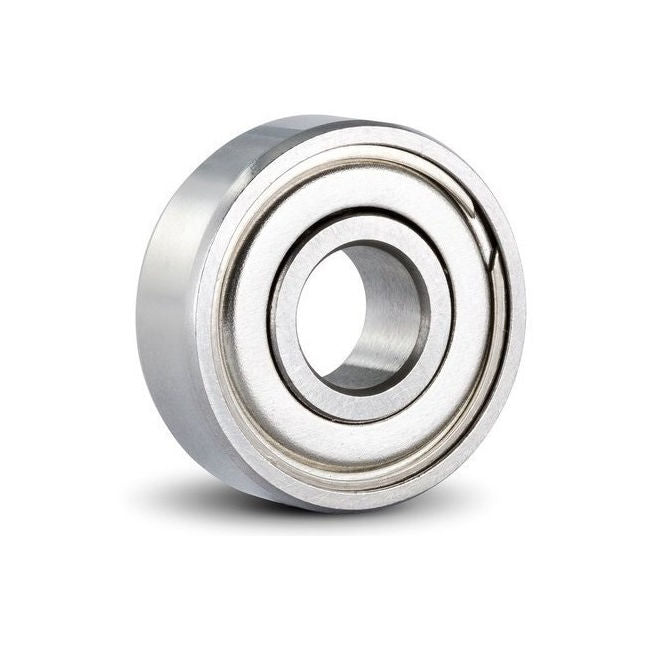

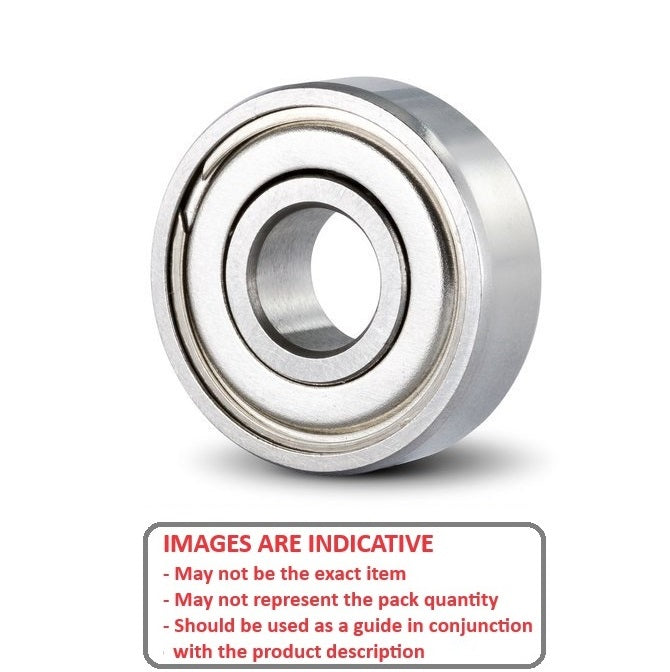

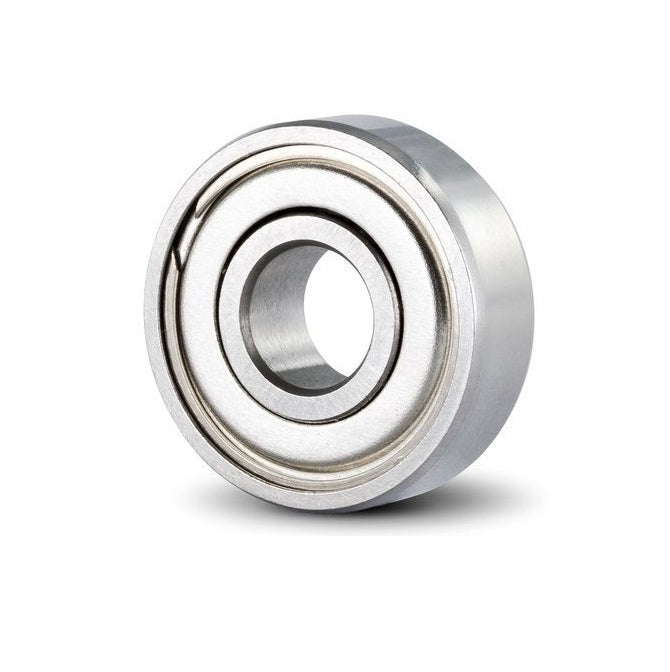

Bearings - 8 mm x 22 mm x 7 mm
MBA
Additional resources:Tolerances
Standard Bearings PDF Catalogue
Shafting
Qty: 92 available now
Order 50 or more for $4.21 AUD Each
Couldn't load pickup availability
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage
Product Details:ID (d): 8.000mm
+0.000/-0.0075
SAE52100 Chrome Steel / Polyamide Cage
- OD (D): 22.000mm
+0.000/-0.010
- Width (B): 7.000mm
+0.000/-0.125
- Precision Grade: Abec 1
- Closure Type: ZZS
- Bearing Type: Radial
- Made In: European WIB/GRW
Brand: MBA
Country of Origin: CN
Alternatives: 608T9HZZSC823AF12
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
