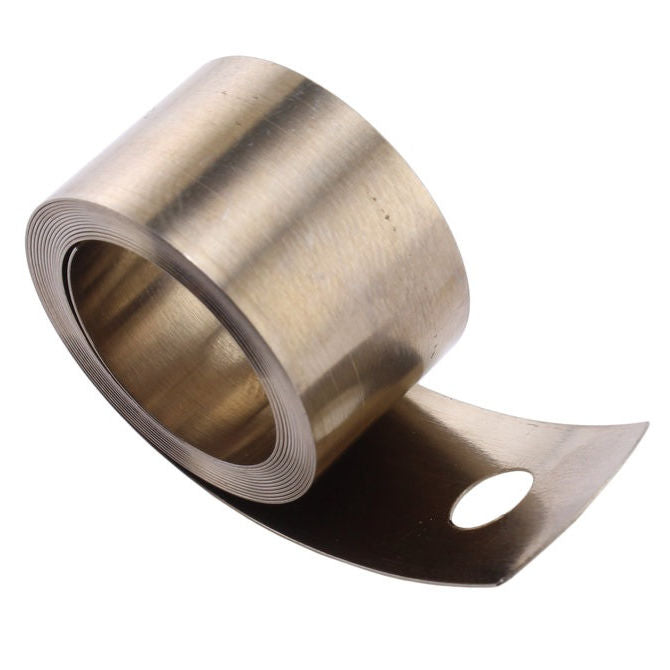

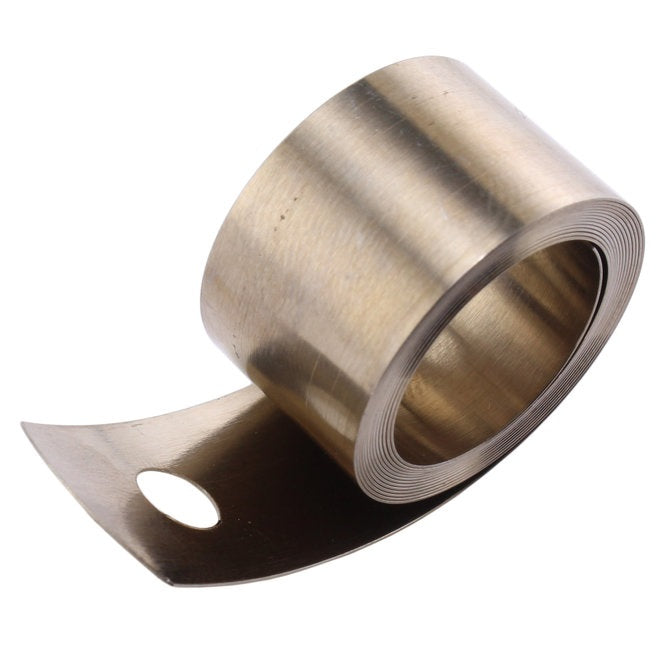

Constant Force Springs - 8.8 Newtons - 812.8x0.254 mm - Spring Steel Music Wire

CFS-0088-0813-159-S1-TW

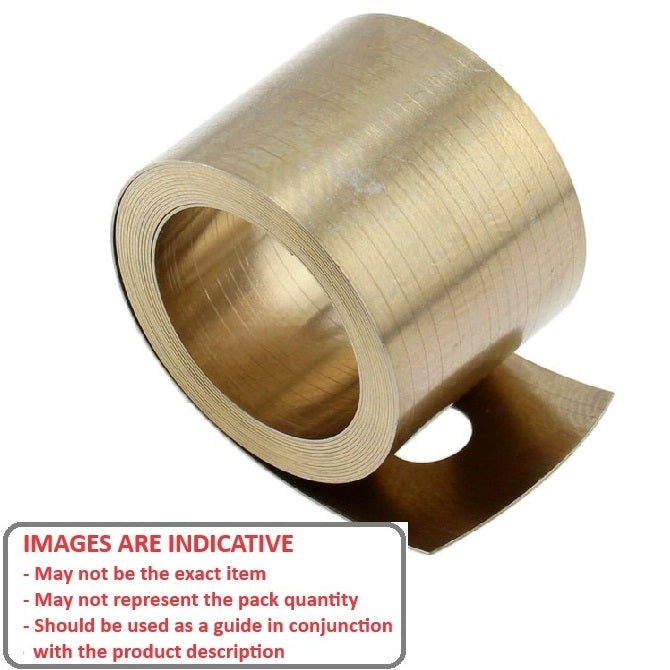

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Price:
$17.05 AUD
$17.05 AUD
Each
Qty: 450 available now
Order 50 or more for $15.35 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 19, 2025

Base Category: Springs - Constant Force

Top Level Category: Springs - Constant Force

Product Details:

Load: 8.8Newtons
+/- 10%

Spring Steel Music Wire

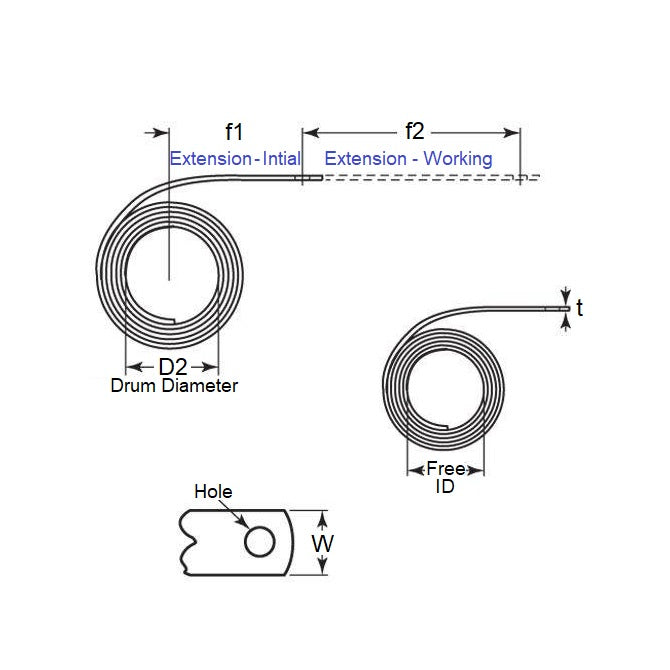

  • Band Length: 812.8mm
  • Thickness (t): 0.254mm
  • Band Width (W): 15.88mm
  • Free ID (Ref. Only): 28.18mm
  • Drum Diameter: 33.8
  • Cycles Life: 13000
  • Mounting Holes: 1mm
  • Initial Extension (f1): 50.8mm
  • Max. Working Deflection (f2): 609.6

Brand: MBA
Country of Origin: US

Alternative Parts Include: A3X50-SK10J32, A3X50SK10J32

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
