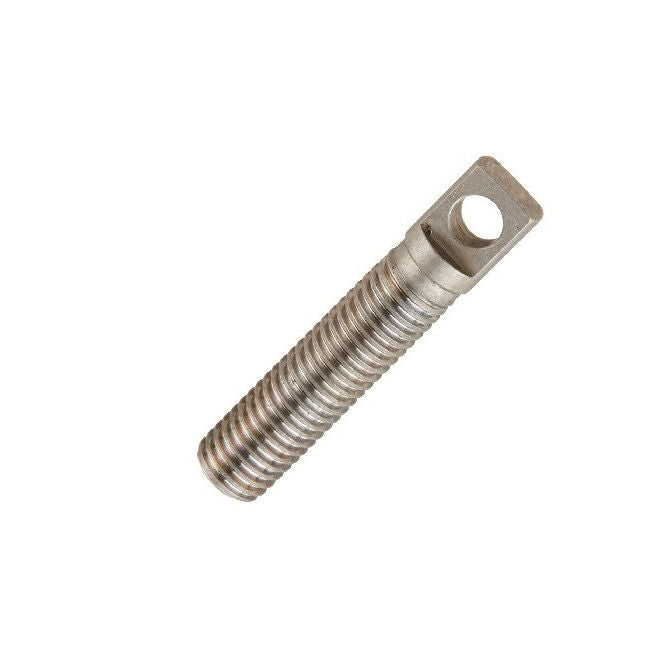

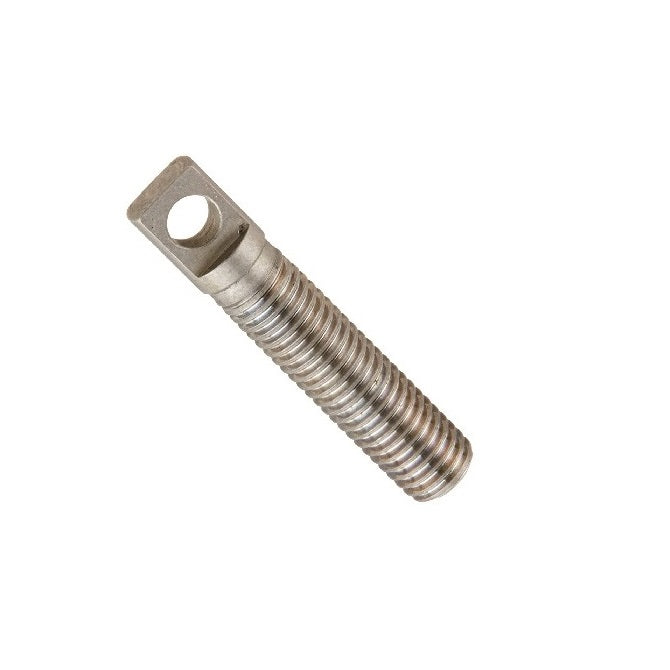

Stainless Steel Spring Anchors - 8-32 UNC - 4.17mm - 22.225x15.875 mm

SSA-60RS (Each)

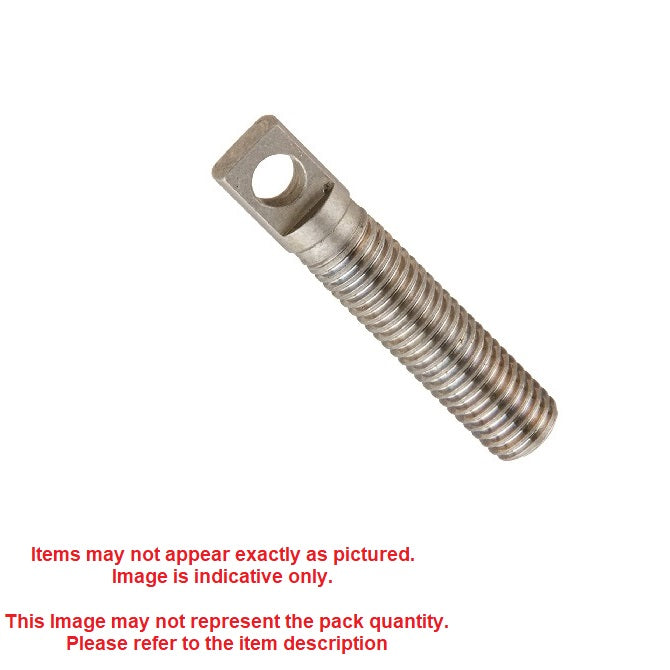

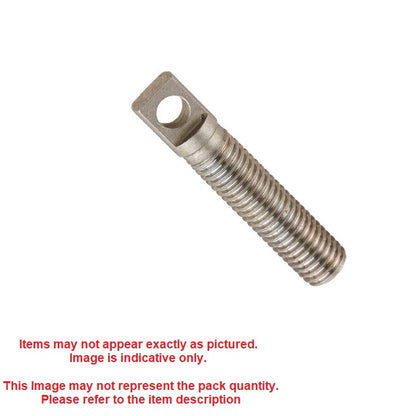

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Stainless Steel Spring Anchors - 8-32 UNC -4.17mm- 22.225x15.875 mm
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Extension Springs
Price:
$21.95 AUD
$26.35 AUD $21.95 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 2 available now

Order 50 or more
for $19.76 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Oct 01, 2026

8-32 UNC (4.17mm) 22.225x15.875 mm Stainless Steel Spring Anchors - - Sold per Each:

Base Category: Spring Anchors - Stainless Steel

Top Level Category: Spring Anchors - Stainless Steel

Product Details

Thread: 8-32 UNC (4.17mm)
  • Thread: 8-32 UNC (4.17mm)

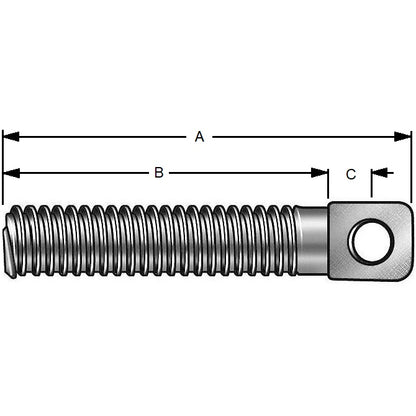

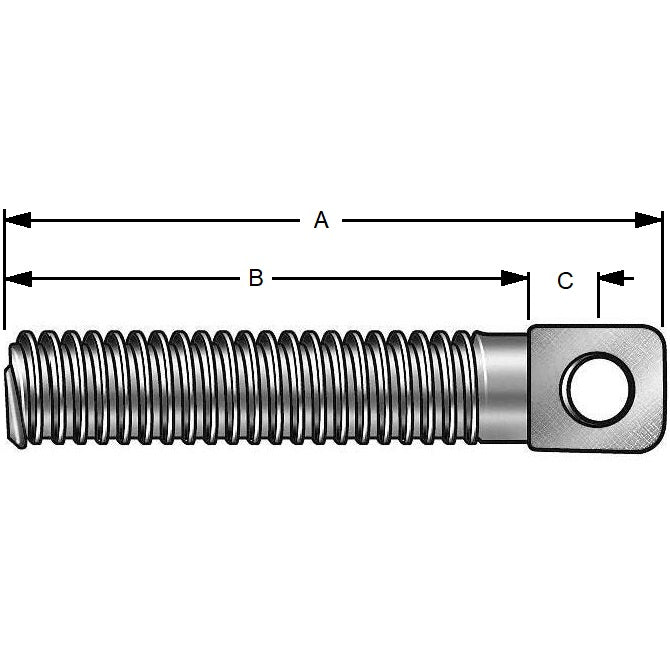

  • Overall Length (A): 22.225mm
    (22.225mm is 0.875 in.)
  • Thread Length (B): 15.875mm
    (15.875mm is 0.625 in.)
  • Thread to Centre Eye (C): 2.159mm
  • Hole Size: 1.778mm
  • Load: 77Kg

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 95907A460

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SSA60RS,
View full details
