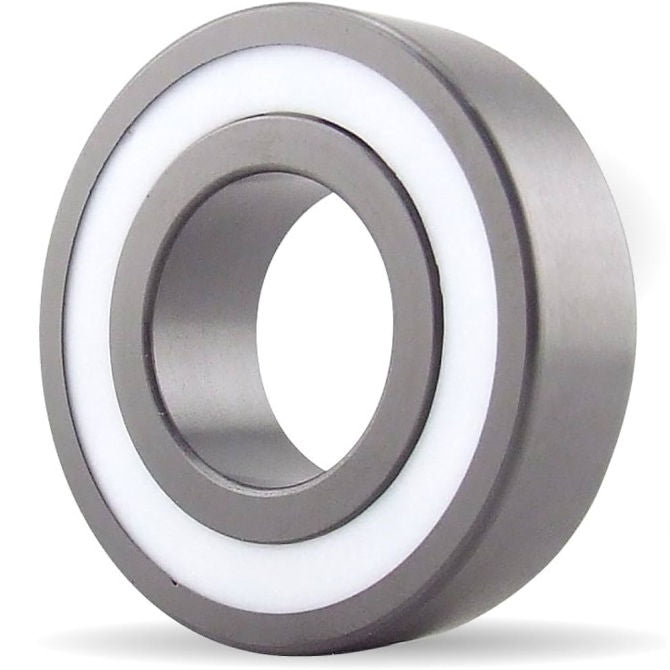

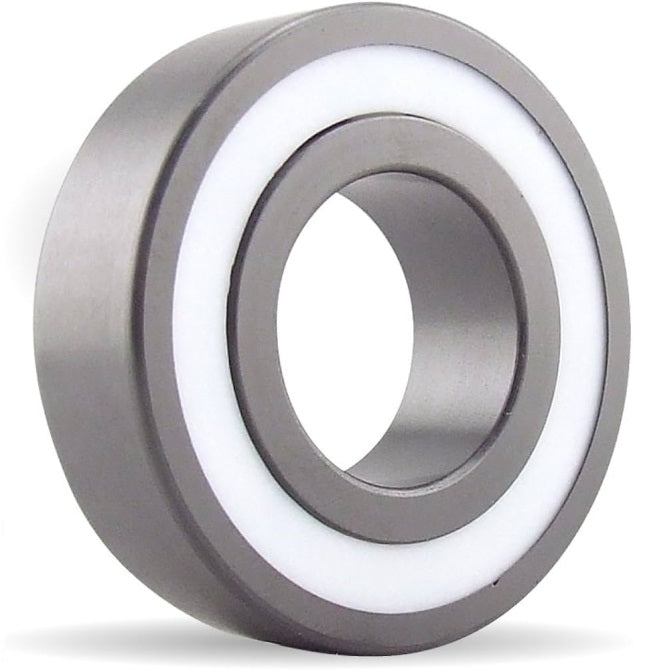

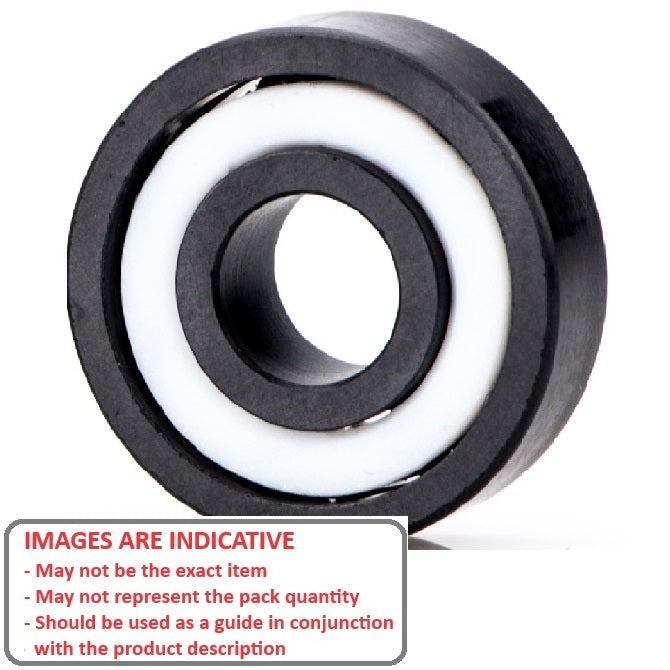

CSN-627-TTS-MC34-TF-DRY
Bearings - 7 mm x 22 mm x 7 mm
MBA
Additional resources:Tolerances
Standard Bearings PDF Catalogue
Ceramic Bearings PDF Download
Qty: 9 available now
Order 50 or more for $46.59 AUD Each
Couldn't load pickup availability
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Ceramic Si3N4

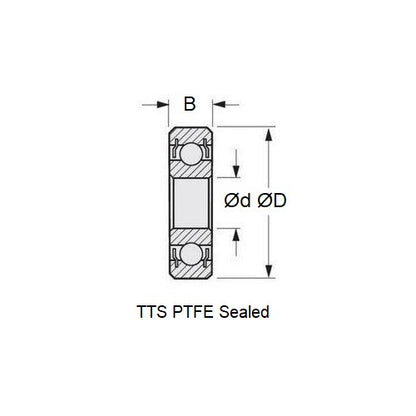

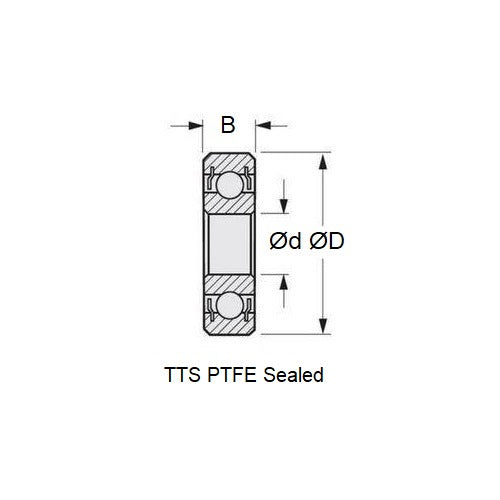

Product Details:ID (d): 7.000mm
+0.000/-0.0075
Silicon Nitride / PTFE Cage / PTFE Seals
- OD (D): 22.000mm
+0.000/-0.010
- Width (B): 7.000mm
+0.000/-0.125
- Precision Grade: Abec 1
- Closure Type: TTS
- Bearing Type: Radial
- Lubricant: No Lube
Brand: MBA
Country of Origin: TW
Alternatives: CSN627TFTTSC3, CSN627TFTTSC3DRY, CSN627TFTTSMC3DRY, CSN627TTSMC34TFDRY, CSN627TTSTFMC3DRY
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
