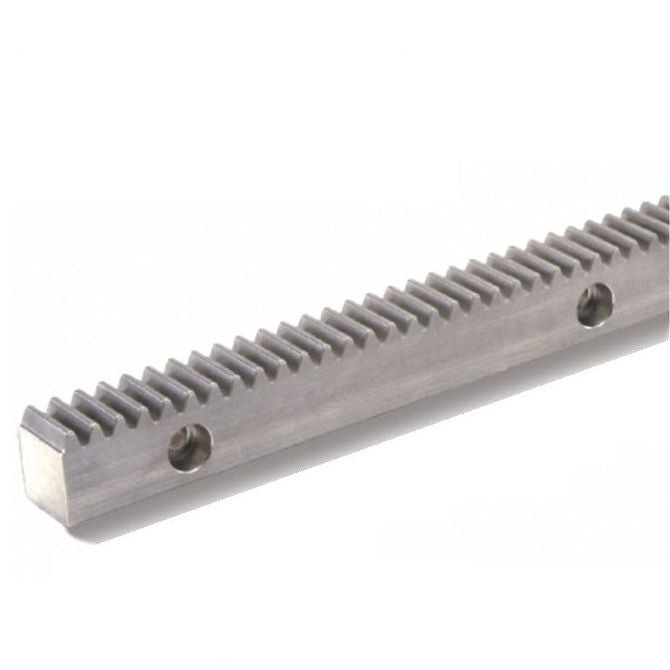

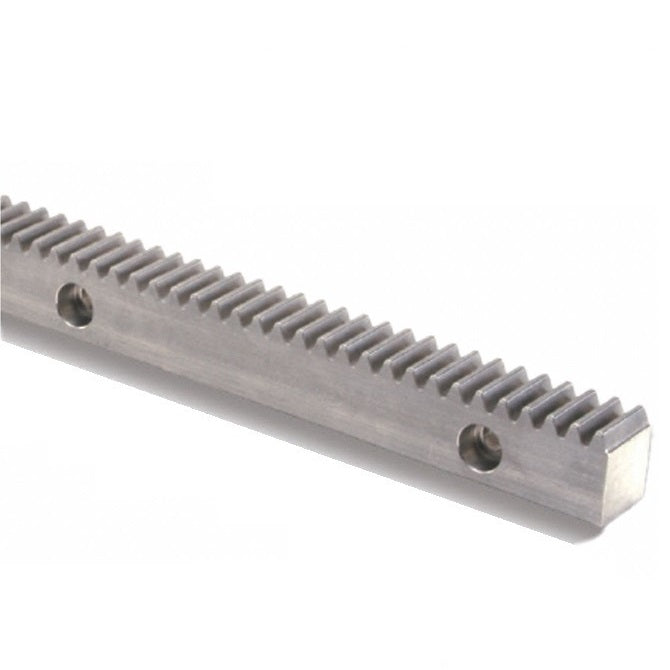

Rack Gears - 76.2x4.242x9.017 mm - Stainless Steel AISI 416 Rc 36-42

GR-D96-04-0076-09-S41MS

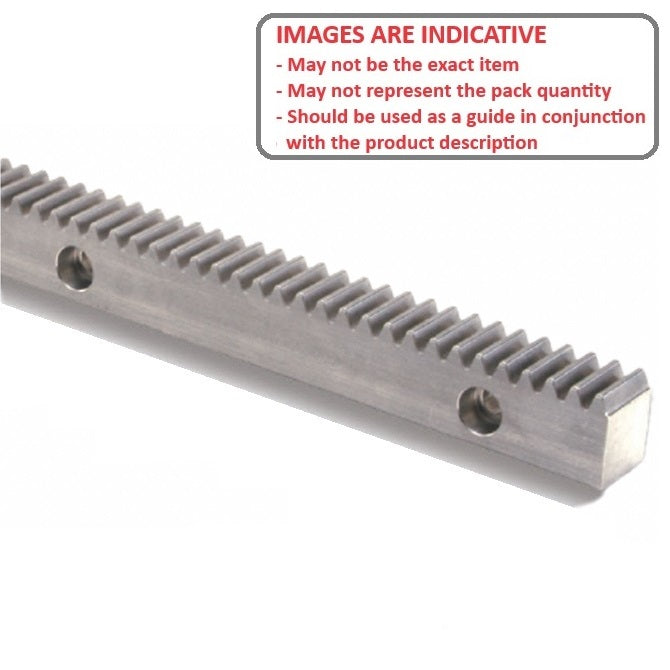

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Additional resources:
Spur Gears
Price:
$40.00 AUD
$76.00 AUD $40.00 AUD
Each
Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Base Category: Gears - Rack

Top Level Category: Gears - Rack - Imperial - 96DP - Stainless - Side Holes

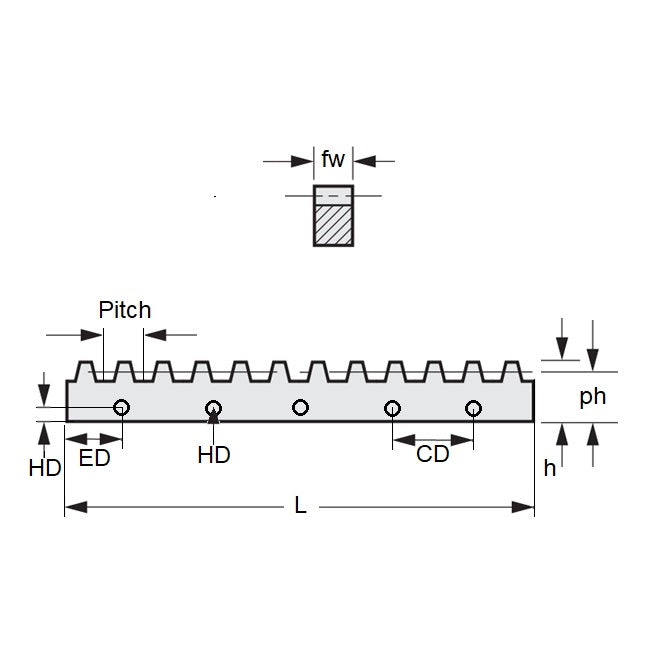

Product Details:

Length (L): 76.2mm
Stainless Steel AISI 416 Rc 36-42
  • Face Width (fw): 4.242mm
  • Height (h): 9.017mm
  • Pitch Type: 96DPmm
  • Pitch Height (ph): 8.753°
  • Pressure Angle: 20
  • Precision: Precision
  • Mounting Hole Details (H.D): 4 x 3.04mm at 22.23mm centres, 3.96mm Centre from Base
  • Shape: Rectangular
  • Hole Centre Distance (C.D.): 22.23mm
  • End Hole Centre to Edge (E.D.): 4.75mm
  • Hole Centre to Base: 3.96mm

Brand: MBA
Country of Origin: DE

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternative Parts Include: S1810YRC7, S1810Y-RC-7

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
