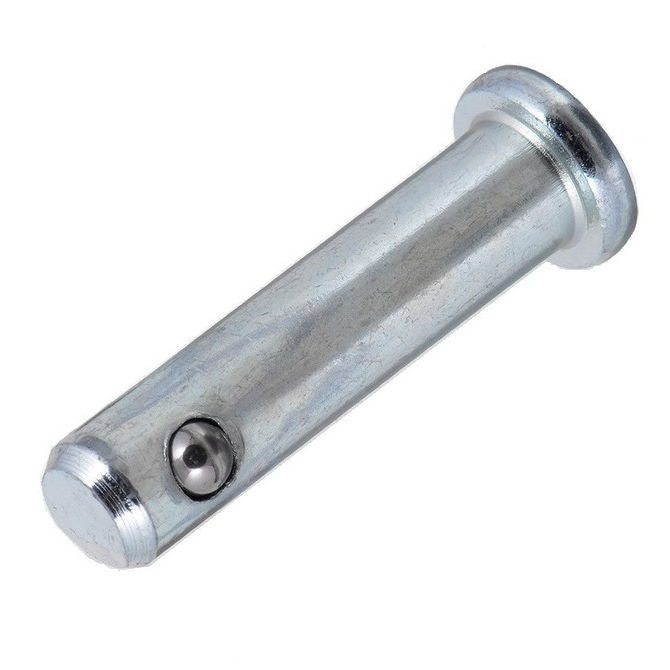

Clevis Pins - 7.94x41.27x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin

Name: 1084759 | BLP-079-0413-CZ (Each) --- Clevis Pins - 7.94x41.27x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin
Rating: 5.0 (1 reviews)

BLP-079-0413-CZ (Each)

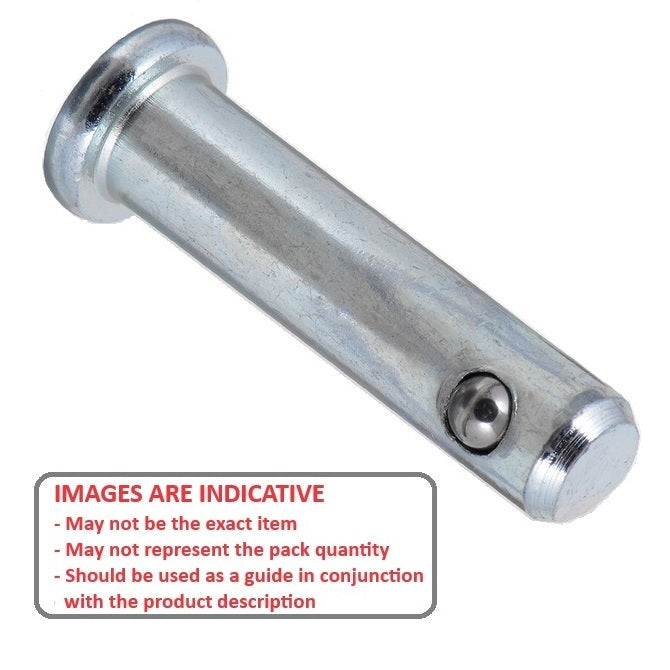

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Pins - Clevis - Self Locking Zinc Plated

Additional resources:
Master Pins Catalogue PDF
Assortment Kits

Price:

$5.23 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 6 available now

Order 50 or more
for $4.71 AUD Each

Product Details

Additional stock available from USA subject to Prior Sale = 6955

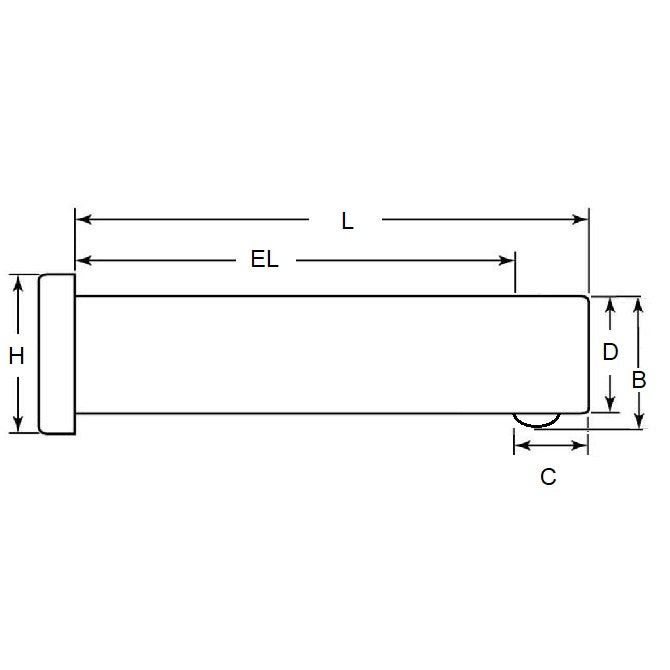

Nominal Pin Diameter (A): 7.94mm
_{- 0.05 / - 0.18}
_{(7.94mm is 0.313 in.)}

Zinc Plated Low Carbon Steel

Nominal Pin Diameter (A): 7.94mm
_{- 0.05 / - 0.18}
_{(7.94mm is 0.313 in.)}
Grip Length (EL): 41.27mm
_{+ 0.51 / - 0.00}
_{(41.27mm is 1.625 in.)}
Nom. Length (L): 50.80mm
_{+ 0.51 / - 0.00}
_{(50.80mm is 2 in.)}
Locking Ball to End (C): 9.53mm
Open Ball Distance (B): 0.64 to 0.76mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Huyett® CLPCZ-0312-2000
NoCor® CLPCZ-0312-2000
BLP0790413Z
CLPCZ03122000

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BLP0790413CZ, BLP079

View full details
