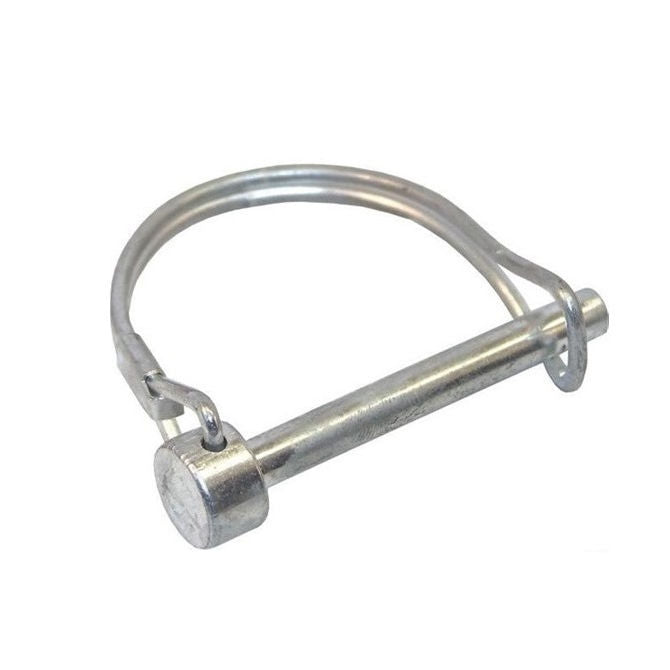

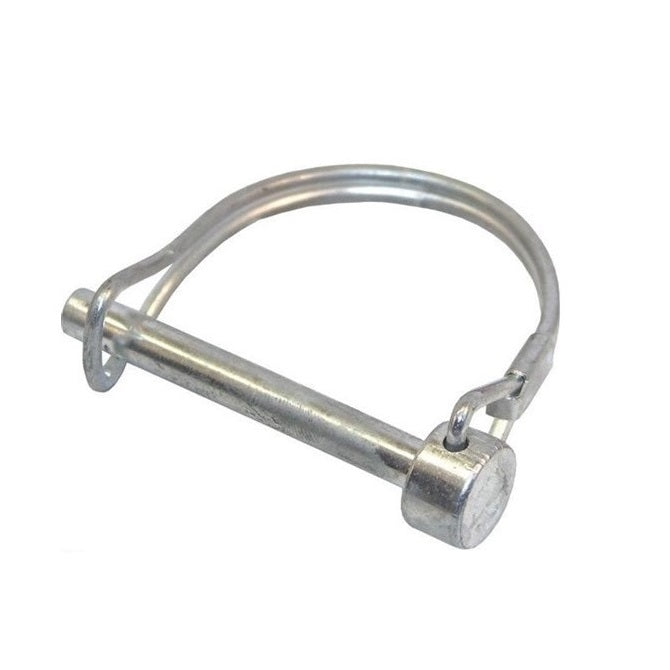

Wire Lock Lynch Pins - 7.94x34.93x2.3 mm Double Wire - Carbon Steel Spring Wire Zinc Plated Pin

Name: 1078729 | LYP-R2-079-035-CZ (Each) --- Wire Lock Lynch Pins - 7.94x34.93x2.3 mm Double Wire - Carbon Steel Spring Wire Zinc Plated Pin
Rating: 5.0 (1 reviews)

LYP-R2-079-035-CZ (Each)

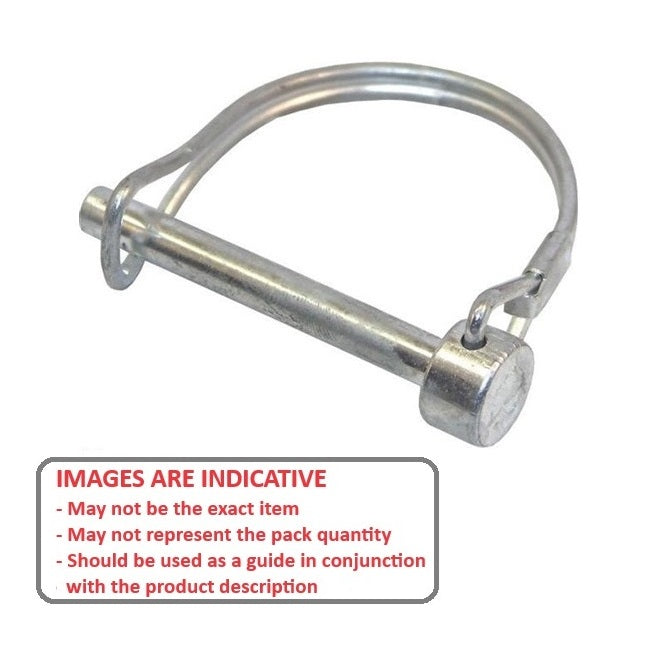

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Pins - Wire Lock Lynch - Double Wire - Round - Carbon Steel

Additional resources:
Master Pins Catalogue PDF

Price:

$4.41 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 250 available now

Order 50 or more
for $3.97 AUD Each

Product Details

Additional stock available from USA subject to Prior Sale = 9047

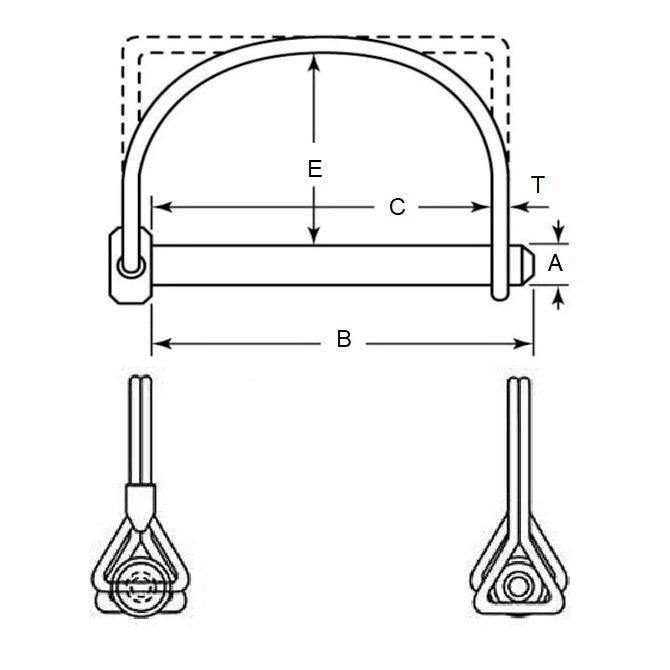

Pin Diameter (A): 7.94mm
_{- 0.051 / - 0.178}
_{(7.94mm is 0.313 in.)}

Carbon Steel Spring Wire Zinc Plated

Pin Diameter (A): 7.94mm
_{- 0.051 / - 0.178}
_{(7.94mm is 0.313 in.)}
Grip Length (C): 34.93mm
_{+ 0.00 / - 6.35}
_{(34.93mm is 1.375 in.)}
Wire Thickness (T): 2.3mm
_{(2.3mm is 0.091 in.)}
Clearance To Wire (E): 44.5mm
Pin Length (B): 41.3mm
Weight Per Piece: 38g
Finish: Zinc Plated

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
68416A125
Huyett® SNAP-312-1375R
NoCor® SNAP-312-1375R
SNAP3121375R

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
