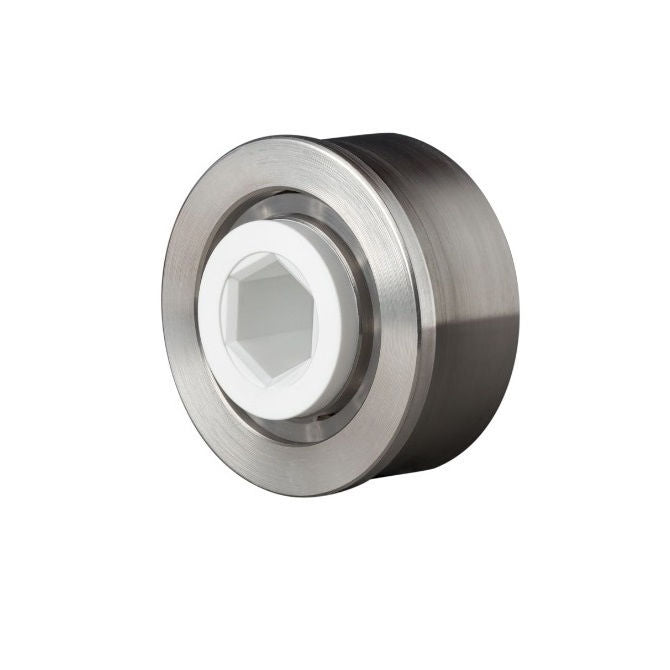

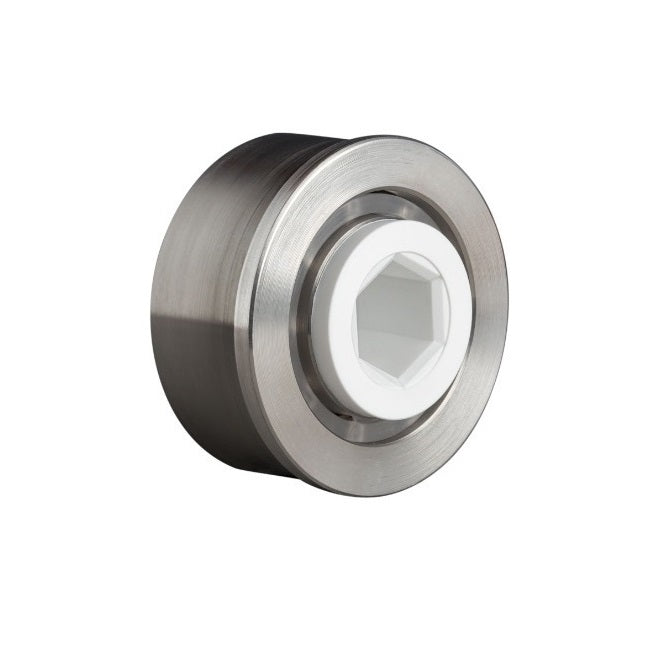

Conveyor Bearings - 7.94x25.4x21.34 mm / 11.94 mm Double Row - Stainless Steel 316 Balls and Races Bearing

Name: 1084619 | CB-254-079H-21-6D (Pack of 25) --- Conveyor Bearings - 7.94x25.4x21.34 mm / 11.94 mm Double Row - Stainless Steel 316 Balls and Races Bearing
Rating: 5.0 (1 reviews)

CB-254-079H-21-6D (Pack of 25)

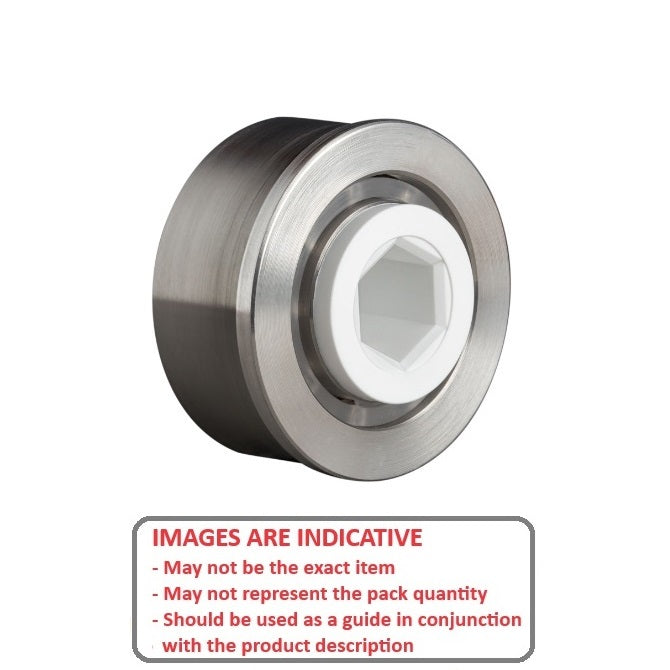

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

KMS

Store Name: Small Parts & Bearings

Category: Bearings - Conveyor - Double Row - Hex Bore Stainless Steel

Price:

$2,699.05 AUD

Priced, Stocked and Sold Per pack of 25

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more packs of 25 (1250 pcs)
for $2,429.15 AUD per 25 pack

Product Details

Hex Bore (A): 7.94mm
_{+ 0.30 / - 0.00}
_{(7.94mm is 0.313 in.)}

Stainless Steel 316 Balls and Races

Hex Bore (A): 7.94mm
_{+ 0.30 / - 0.00}
_{(7.94mm is 0.313 in.)}
O.D. (B): 25.40mm
_{+/- 0.080}
_{(25.40mm is 1 in.)}
Width (C): 21.34mm
_{(21.34mm is 0.84 in.)}
Width (D): 11.94mm
Flange Dia. (E): 29.46mm
Flange Width (F): 3.05mm
Max Speed Unloaded: 1280RPM
Dynamic Load: 85Kg
Static Load: 67Kg

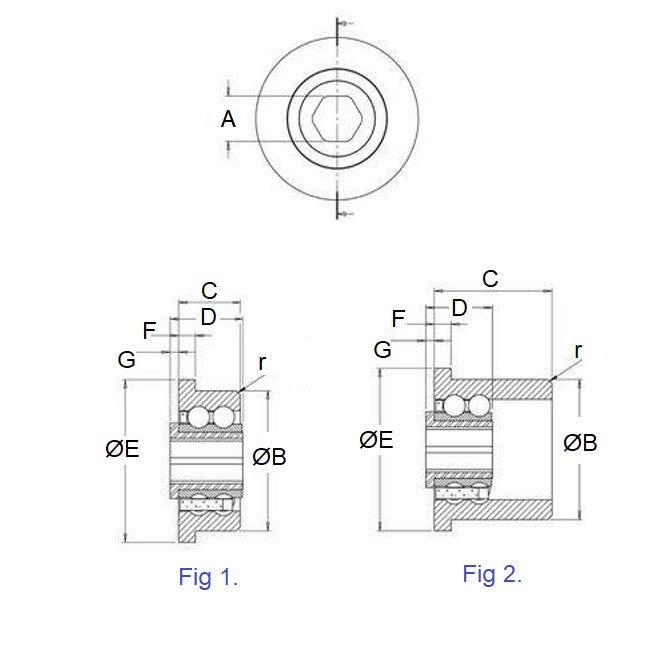

Figure: Fig 2

Brand: KMS
Country of Origin: US

Product Compliance and Data

Similar to

KMS SSCB312-1.0DR
KMS SSCB312-1.0DR-6
SSCB31210DR
SSCB31210DR6

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CB254079H216D, CB254079H
