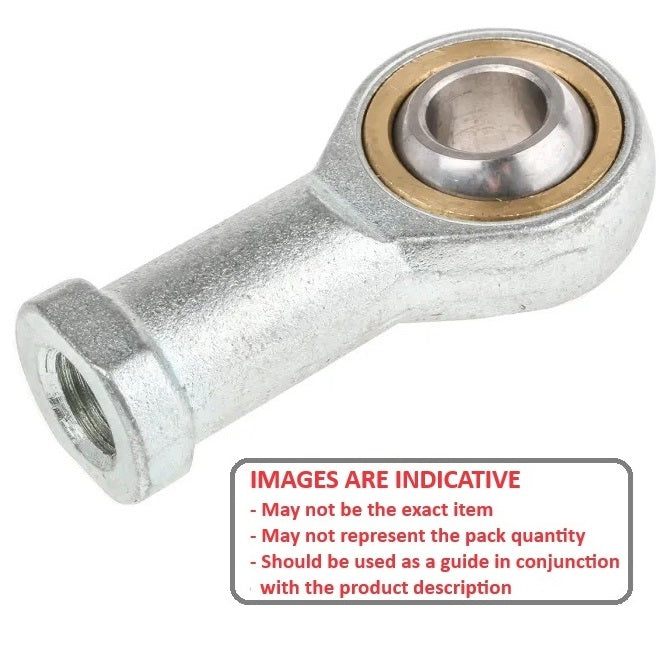

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
Skip to product information
1 of 3

REF-079-L-CB

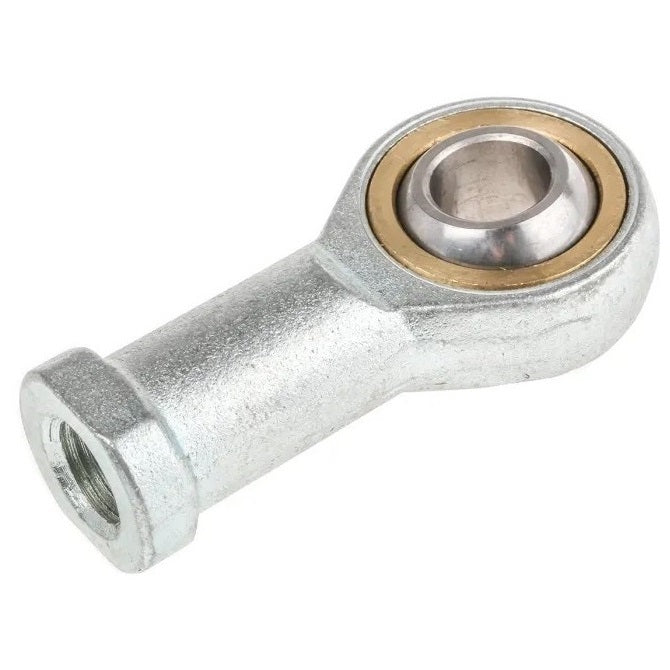

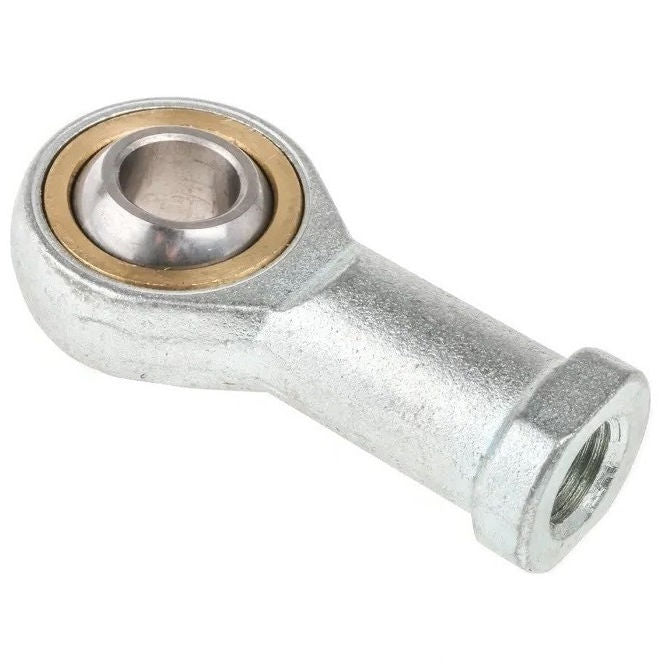

Rod - 7.938 mm x 46.02 mm 5/16-24 UNF Left

MBA

Price:
Regular price $31.77 AUD
Regular price Sale price $31.77 AUD
Each
Out Of Stock
Order 50 or more for $28.59 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Jan 18, 2025

Base Category: Rod Ends - Steel

Top Level Category: Rod Ends - Steel - Bronze Lined Female

Product Details:

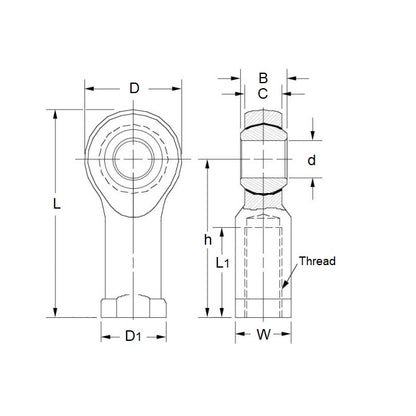

Eye Size (d1): 7.938mm
Bronze Lined Steel
  • Overall Length (L): 46.02mm
  • Thread Size (T): 5/16-24 UNF Left
  • Thread Length (l2): 19.05mm
  • Head Width (W): 8.74mm
  • Eye Width (W1): 11.10mm
  • Head Diameter (D): 22.23mm
  • Centre Height (l1): 34.93mm
  • Grease Nipple: Yes
  • Body Width/Flange Width(W2/D3): 11.10 / 12.70mm

Brand: MBA
Country of Origin: DE

Alternatives: 6072K164-LEFT, JAFB5L, KFB5L, PHSB5L, PHSB-5L, SFI-B5L

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
