Self Clinching Bearings - 7.938 16.256 to 16.332 7.14 mm Self Aligning - Chrome Steel in Carbon Steel Bearing

Name: 1083418 | SBS1-312 (Pack of 2) --- Self Clinching Bearings - 7.938 16.256 to 16.332 7.14 mm Self Aligning - Chrome Steel in Carbon Steel Bearing
Rating: 5.0 (1 reviews)

SBS1-312 (Pack of 2)

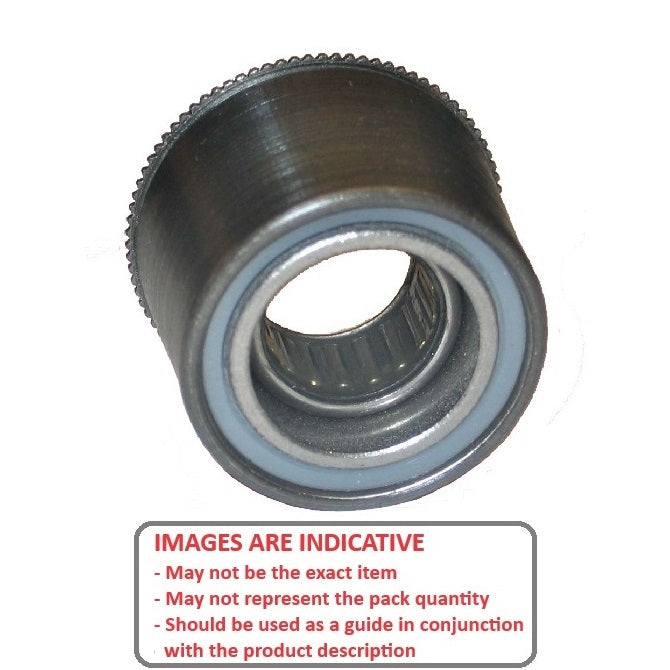

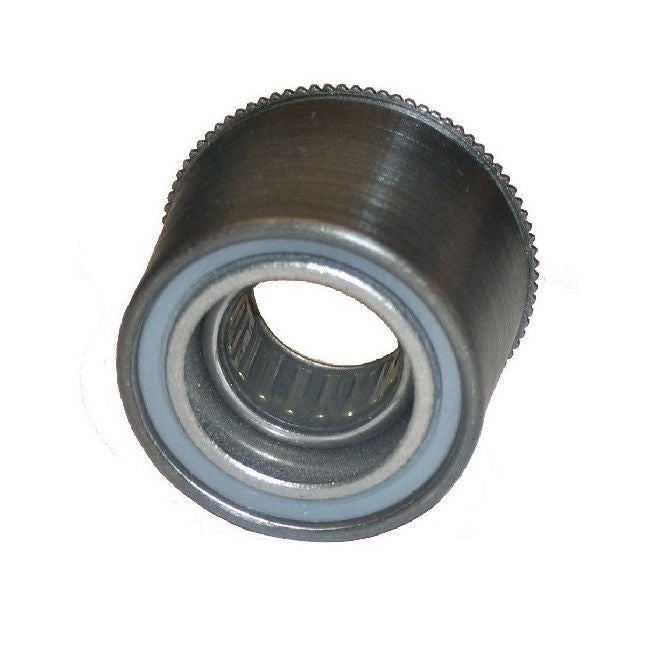

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Bearings - Self Clinching - Self Aligning - Miniature

Price:

$15.25 AUD

~~$28.98 AUD~~ $15.25 AUD

Priced, Stocked and Sold Per pack of 2

Excludes GST and overseas Taxes & Duties

Qty: 1 pack (2 pcs) available now

Only 1 pack may be ordered online. If you need a large quantity, please contact us.

Quantity

5/16x9/32 inch Bearing - 7.938 16.256 to 16.332 7.14 mm Self Clinching Bearings - Chrome Steel in Carbon Steel - Sold Per 2:

Base Category: Bearings - Self Clinching

Top Level Category: Bearings - Self Clinching - Self Aligning - Miniature

Product Details

Deleted Item. Available while stocks last.

Nominal Shaft Size: 7.938mm
_{(7.938mm is 0.313 in.)}

Chrome Steel in Carbon Steel

Nominal Shaft Size: 7.938mm
_{(7.938mm is 0.313 in.)}

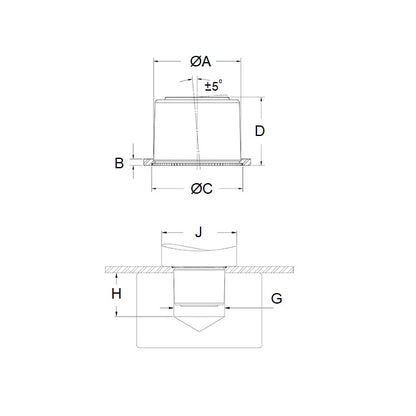

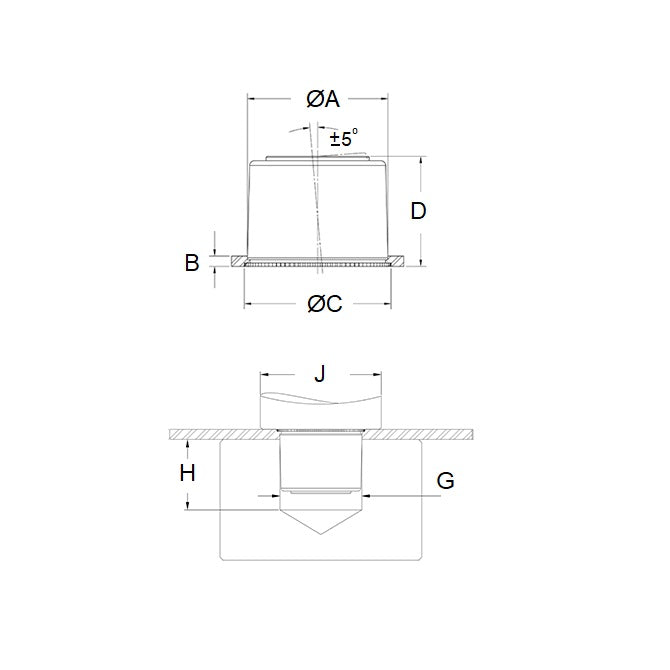

Min. Panel Hole (A): 16.256 to 16.332mm
_{(16.256 to 16.332mm is 0.64 in.)}
Overall Width (D): 7.14mm
_{(7.14mm is 0.281 in.)}
Max Speed: 40000RPM
Clinching Diameter (C): 17.5mm
Max. Radial Dynamic Load: 50kgf
Radial Static Load Capacity: 27kgf

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

ALTPART
1437N14

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SBS1312,

View full details
