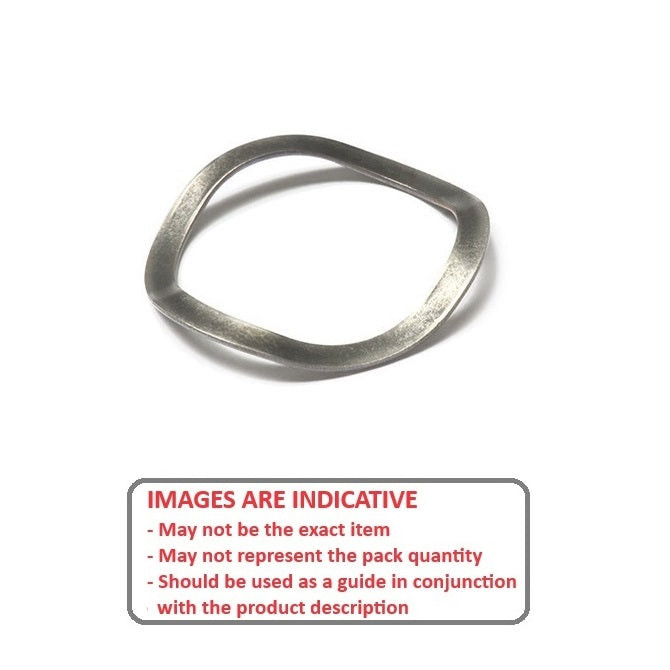

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
Skip to product information
1 of 3

W0060-T-008-007-W3-S400 (2 Pcs)
Spring Washers - 6 mm x 7.75 mm x 0.7 mm

MBA

Additional resources:
Screws
Price:
Regular price $6.05 AUD
Regular price Sale price $6.05 AUD
per 2
Qty: 128 available now (256 pcs)
Order 50 or more (100 pcs) for $5.45 AUD per 2
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Mar 08, 2025

Base Category: Washers - Spring

Top Level Category: Washers - Spring - 3 Wave Type - 400 Grade Stainless

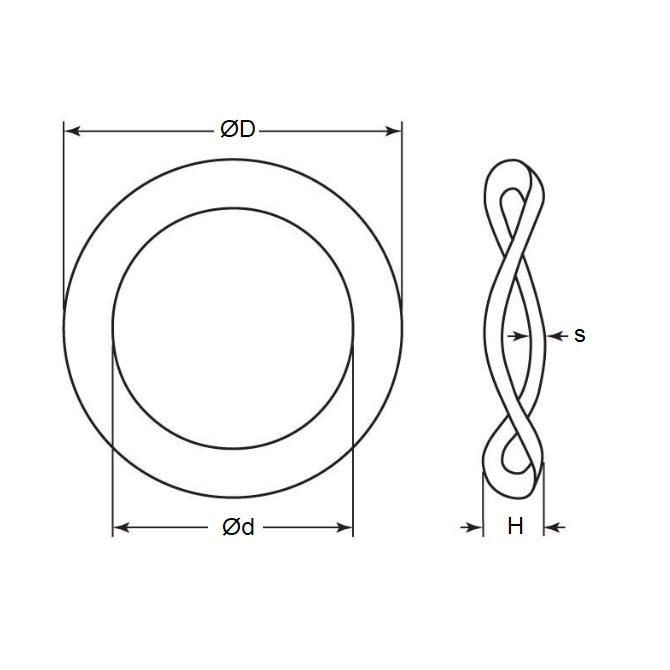

Product Details:

Nom. ID (d): 6.00mm
Heat Treated 400 Grade Stainless, Edges Radiused
  • Nom. OD (D): 7.75mm
  • Nom. Height (H): 0.70mm
    + /- 0.05
  • Thickness (s): 0.15mm
    +/- 0.01
  • Info: Made in Germany
  • Type: 3 Wave Series
  • Nominal Screw Size: M6
  • Actual ID (Ref): 6.2mm

Brand: MBA
Country of Origin: DE

Alternatives: FS6X8, FS6X8x0.

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
