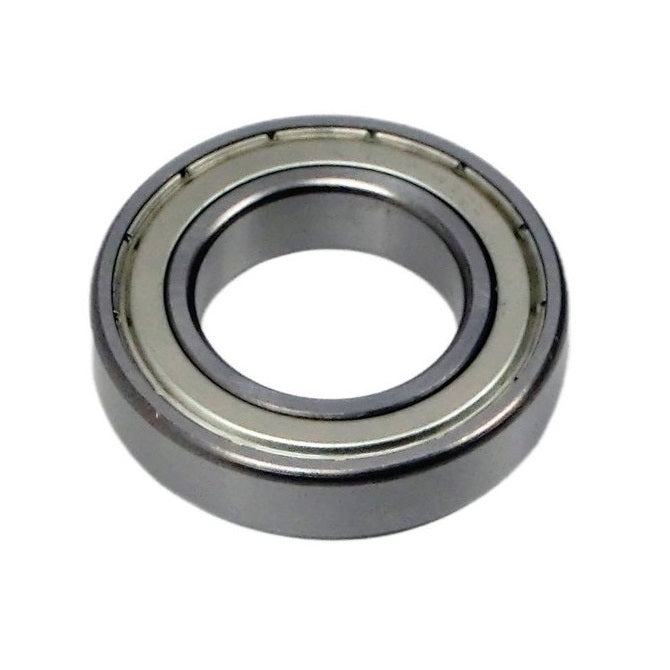

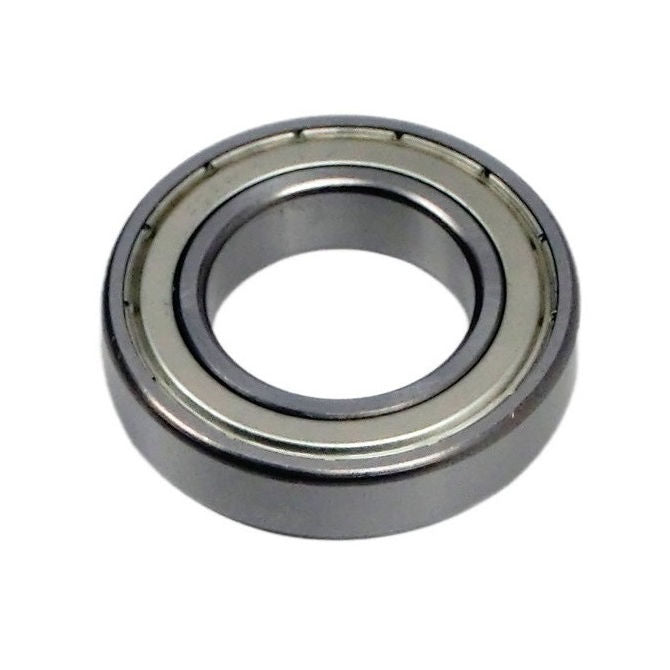

Single Row Ball Bearings - 6x13x5 mm Unflanged - Chrome Steel SAE 52100 Bearing

686B-ZZ-MC3 (Each)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 6x13x5 mm - Chrome Steel SAE 52100
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$3.32 AUD
$3.32 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 123 available now

Order 50 or more
for $2.99 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 10, 2026

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Product Details


Double shielded standard bearing

ID (d): 6.000mm
+ 0.000 / - 0.0075
(6.000mm is 0.236 in.)

Chrome Steel SAE 52100
  • ID (d): 6.000mm
    + 0.000 / - 0.0075
    (6.000mm is 0.236 in.)
  • O.D. (D): 13.000mm
    + 0.000 / - 0.0075
    (13.000mm is 0.512 in.)
  • Width (B): 5.000mm
    + 0.000 / - 0.125
    (5.000mm is 0.197 in.)
  • Precision Grade: Abec 1
  • Closure Type: ZZ
  • Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • HIROBO 2500-079
  • SKF 628-6-2Z
  • WIB 628-6-2Z
  • WIB 628-6-Z
  • ADR 628-6-ZZ
  • WIB 628-6-ZZ
  • GRW 686-2Z
  • ISO 686ZZ
  • ISO 686-ZZ
  • NTN® 686-ZZ
  • NTN® W686-ZZ
  • 2500079
  • L1360ZZ
  • L-1360-ZZ
  • W686ZZ
  • 6286ZZ
  • 62862Z
  • 686B
  • 686BZZMC3
  • 686SS
  • 686B-ZZMC3
  • 6862Z
  • 686BBASIC

Used for

  • RC Car Parts
  • BMT - 1-10 Gas - Replacement Bearing
  • CEN - Genesis 46 RTR Chasis 1/8 Scale - Replacement Bearing
  • GS General Silicone - Vision Pro - Replacement Bearing
  • Hobao® - Hyper GPX4 - Replacement Bearing
  • HPI - E Savage - Replacement Bearing
  • HPI - Proceed - Replacement Bearing
  • HPI - Proceed Update - Replacement Bearing
  • HPI - R40 - Replacement Bearing
  • HPI - R40 With Clutch Bell And Steering - Replacement Bearing
  • HPI - Savage 25 and RTR - Replacement Bearing
  • HPI - Savage and SavageX - Replacement Bearing
  • HPI - Savage SS - Replacement Bearing
  • HPI - Savage XSS - Replacement Bearing
  • Kyosho® - Evolva - Replacement Bearing
  • Kyosho® - Evolva 2005 - Replacement Bearing
  • Kyosho® - Fantom 2001 - Replacement Bearing
  • Kyosho® - Giga Crusher - Replacement Bearing
  • Kyosho® - Giga Crusher SF - Replacement Bearing
  • Mugen® - K2 Advanced - Replacement Bearing
  • Mugen® - MBX-4 - Replacement Bearing
  • Mugen® - MBX-4XR - Replacement Bearing
  • Mugen® - MBX-5 - Replacement Bearing
  • Mugen® - MBX-5 Prospect - Replacement Bearing
  • Mugen® - MBX-5 T - Replacement Bearing
  • Mugen® - MBX-RR - Replacement Bearing
  • Mugen® - MBX-XR Works - Replacement Bearing
  • Mugen® - MRX-3 1/8 Scale - Replacement Bearing
  • Mugen® - MRX-4 - Replacement Bearing
  • Mugen® - MRX-4R - Replacement Bearing
  • Mugen® - MTX-2 - Replacement Bearing
  • Mugen® - MTX-2 4-WD - Replacement Bearing
  • Mugen® - MTX-3 - Replacement Bearing
  • Mugen® - MTX-3 Prospect - Replacement Bearing
  • Mugen® - MTX-4 - Replacement Bearing
  • Mugen® - SE7 K1 - Replacement Bearing
  • Mugen® - Seiki MBX-4RR - Replacement Bearing
  • Mugen® - Sting 1/8 Gas - Replacement Bearing
  • NEO - 1-8 Gas - Replacement Bearing
  • Ofna® - GT LX - Replacement Bearing
  • Ofna® - Hoar 4-WD Buggy - Replacement Bearing
  • Ofna® - MBX - Replacement Bearing
  • Ofna® - Pirate 1/8 Gas - Replacement Bearing
  • Ofna® - Ultra GT - Replacement Bearing
  • Ofna® - Ultra LX COMP RTR - Replacement Bearing
  • Ofna® - Ultra LX Pro RTR - Replacement Bearing
  • Ofna® - World GT - Replacement Bearing
  • Picco® - Integra 1/8 Gas - Replacement Bearing
  • Picco® - Shepherd Speed 1/8 - Replacement Bearing
  • Serpent® - 705 - Replacement Bearing
  • Serpent® - 710 1-10TH Gas Sedan - Replacement Bearing
  • Serpent® - 835 1-10 2WD - Replacement Bearing
  • Serpent® - 835 1-10 4WD - Replacement Bearing
  • Serpent® - 9000 - Replacement Bearing
  • Serpent® - 950 - Replacement Bearing
  • Serpent® - 950R - Replacement Bearing
  • Serpent® - 950R With Front Wheel Upgrade - Replacement Bearing
  • Serpent® - 950R With STE Ten and Front Wheel UP - Replacement Bearing
  • Serpent® - 950R With Steering and Tensioner - Replacement Bearing
  • Serpent® - 960 - Replacement Bearing
  • Serpent® - 960 FD - Replacement Bearing
  • Serpent® - Excel 1/8 Gas - Replacement Bearing
  • Serpent® - Impact 10 M2 Challenger - Replacement Bearing
  • Serpent® - Impact 10 Pro 2 - Replacement Bearing
  • Serpent® - Impact M2 Spec 2000 4WD - Replacement Bearing
  • Serpent® - Impact-10 - Replacement Bearing
  • Serpent® - Impulse 1/10 Scale Single SPE - Replacement Bearing
  • Serpent® - Impulse Pro 1/10 4WD - Replacement Bearing
  • Serpent® - Impulse Street 2 Speed 4WD - Replacement Bearing
  • Serpent® - Impulse Street Spec 4WD - Replacement Bearing
  • Serpent® - Sprint 6000 Gas - Replacement Bearing
  • Serpent® - Vector - Replacement Bearing
  • Serpent® - Vector Spec 2000 - Replacement Bearing
  • Team Losi® - Aftershock Monster Truck RTR LOSB0012 - Replacement Bearing
  • Team Losi® - Monster Truck LST2 LOSB0015 - Replacement Bearing
  • Xray® - NT1 - Replacement Bearing
    We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
