REM-060-R-CB-B

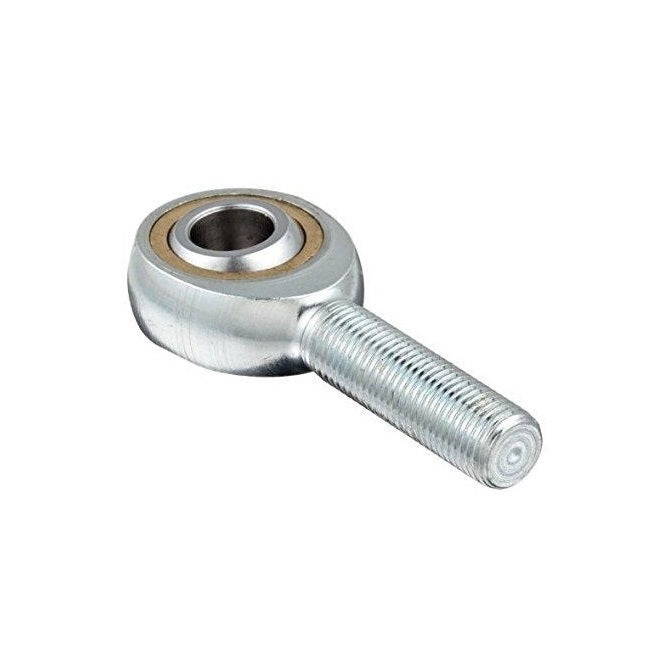

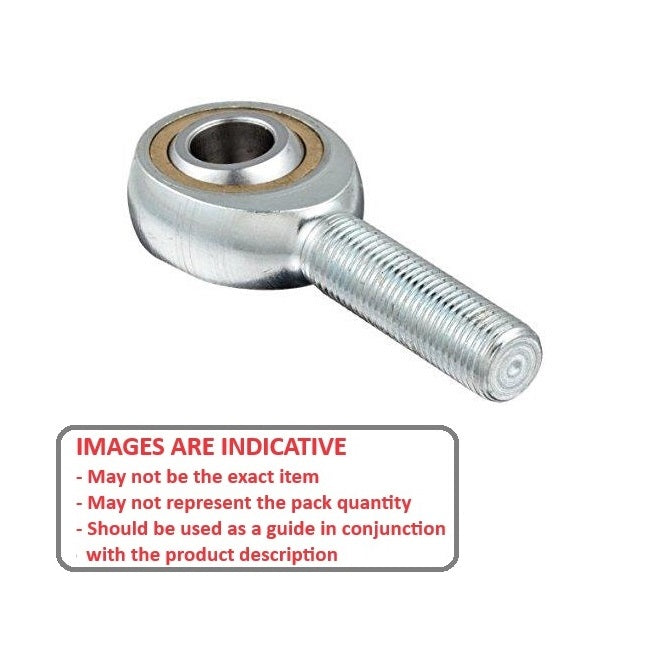

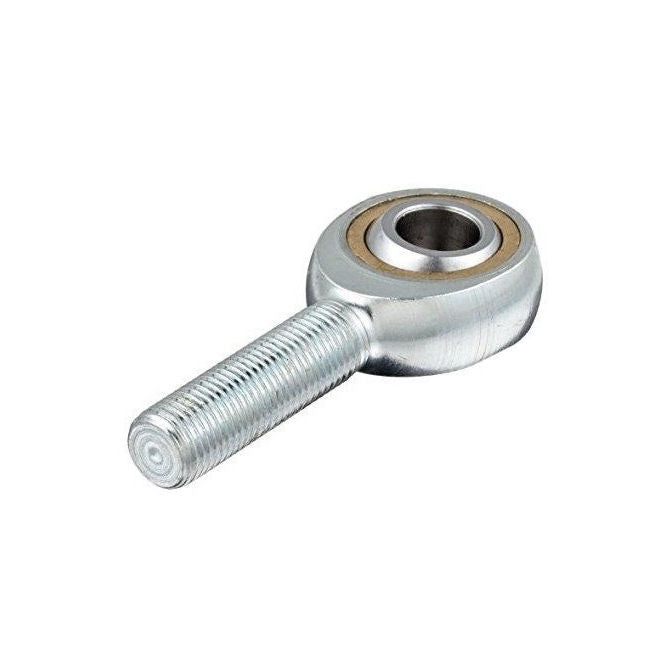

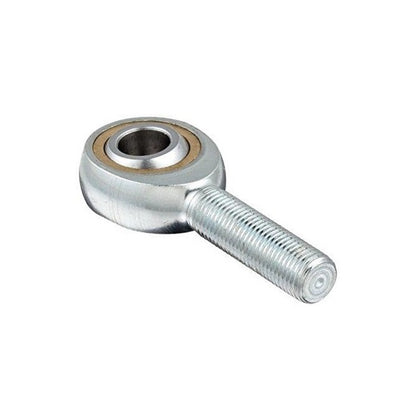

Male Rod Ends - 6 mm x 45 mm M6x1 Right
MBA
Out Of Stock
Order 50 or more for $5.27 AUD Each
Couldn't load pickup availability
Base Category: Rod Ends - Male
Top Level Category: Rod Ends - Male - Steel - Plain - Bronze Lined - Standard

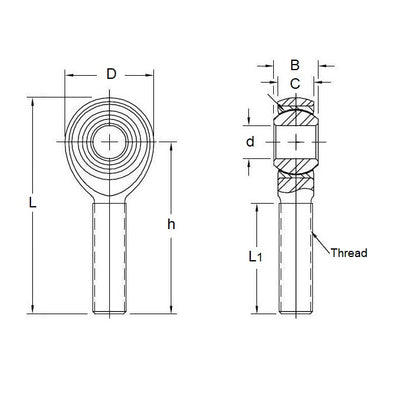

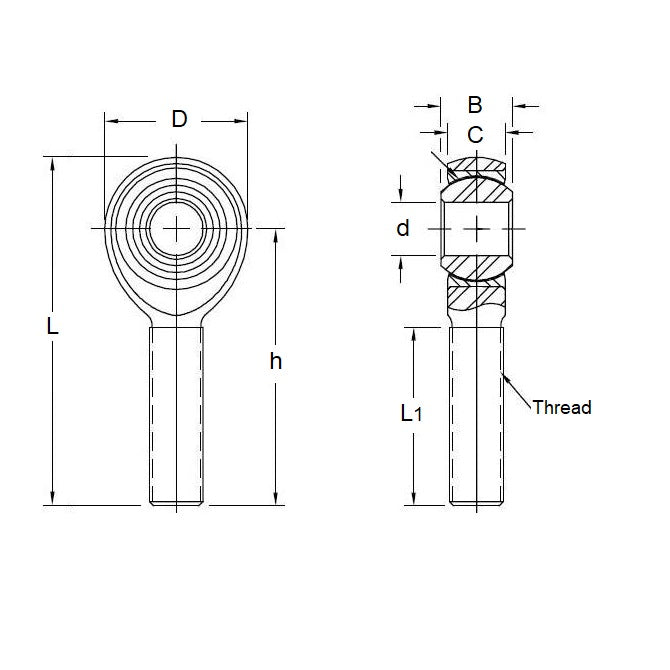

Product Details:Eye Size (d1): 6mm
Bronze Lined Steel
- Overall Length (L): 45.00mm
- Thread Size: M6x1 Right
- Min. Thread Length (l2): 22.00mm
- Head Width (W): 6.75mm
- Eye Width (W1): 9.00mm
- Head Diameter (D): 18.00mm
- Centre Height (l1): 36.00mm
- Grease Nipple: Yes
Brand: MBA
Country of Origin: TW
Alternatives: BNM6, JAM6, KM6, POS6, SMI
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
