Spring Washers - 6.35x9.32x0.76 mm Wave - Stainless Steel 302/304 Similar to A2, 18-8 Washer

W0064-T-010-008-W3-S2 (PK-20)

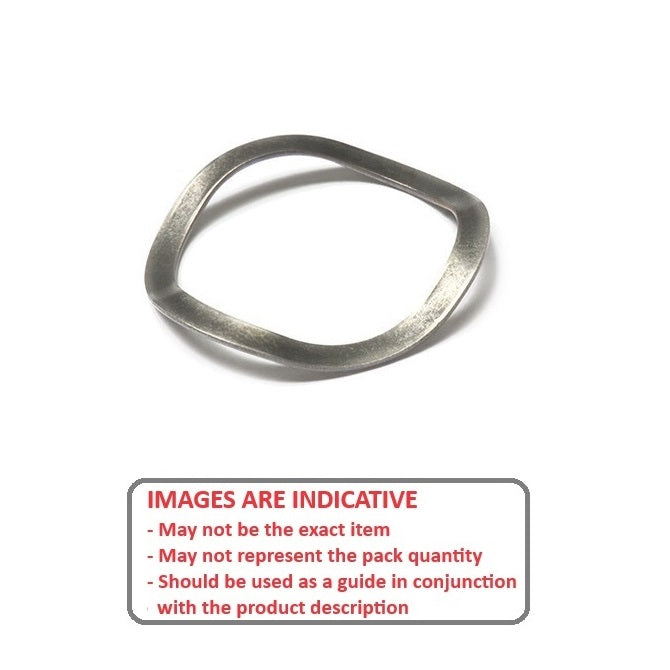

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Spring Washers - 6.35x9.32x0.76 mm - Stainless Steel 302/304 Similar to A2, 18-8
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Assortment Kits
Screws
Price:
$16.77 AUD
$42.85 AUD $16.77 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
 Qty: 39 available now
Only 39 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Washers - Spring

Top Level Category: Washers - Spring - Wave - 302 Stainless Steel

Product Details

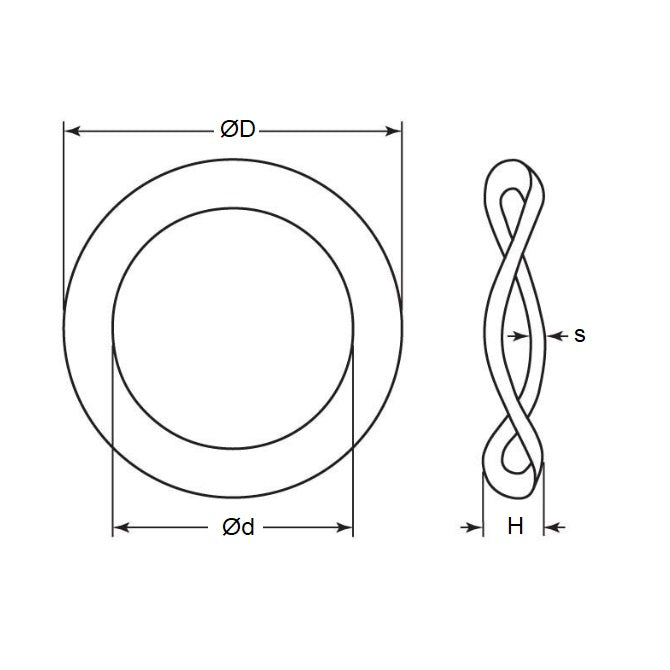

Nominal Inside Diameter (d): 6.35mm
(6.35mm is 0.25 in.)

Stainless Steel 302/304 (Similar to A2, 18-8)
  • Nominal Inside Diameter (d): 6.35mm
    (6.35mm is 0.25 in.)
  • Nominal Outside Diameter (D): 9.32mm
    (9.32mm is 0.367 in.)
  • Nom. Height (H): 0.76mm
    (0.76mm is 0.03 in.)
  • Thickness (s): 0.15mm
  • Type: 3 Wave
  • Nominal Screw Size: M6, 1/4, 14 Gauge
  • Actual ID (Ref): 6.7mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ATA 140-309566
  • Raymond W0367-006-S9.32x6.73x0.76
  • NoCor WW3-0367-006-SS
  • 140309566
  • W0367006S932x673x076
  • WW30367006SS

Used for

  • Dental Handpiece Parts
  • Fishing Reel Parts
  • Star - 430SWL - Wave Washer
  • Abu Garcia - 6500C - 6500C3 - Spool - Outer Casing - Wave Washers

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
