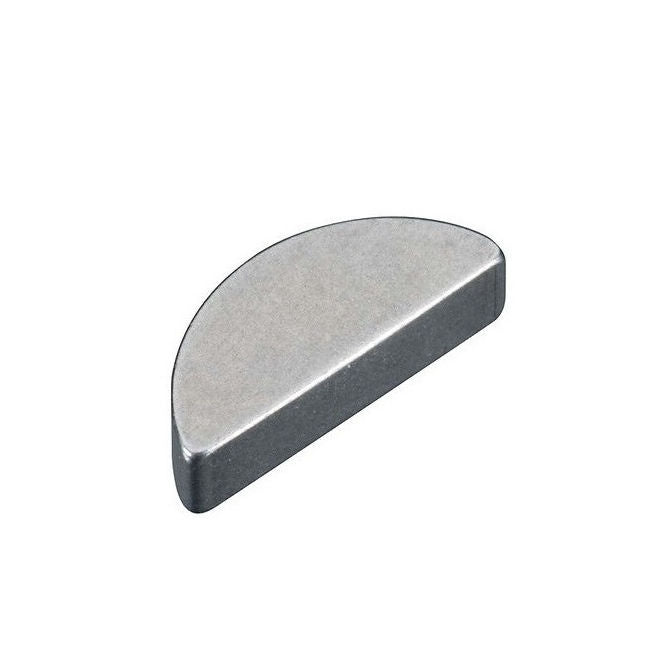

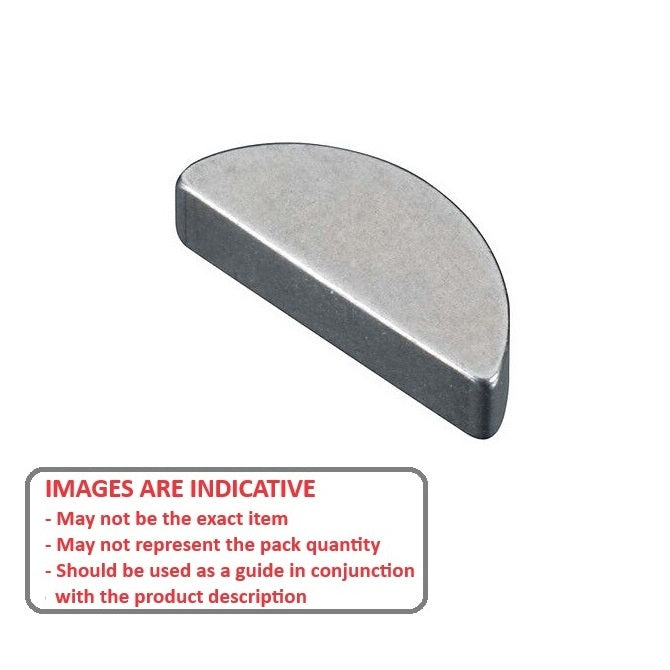

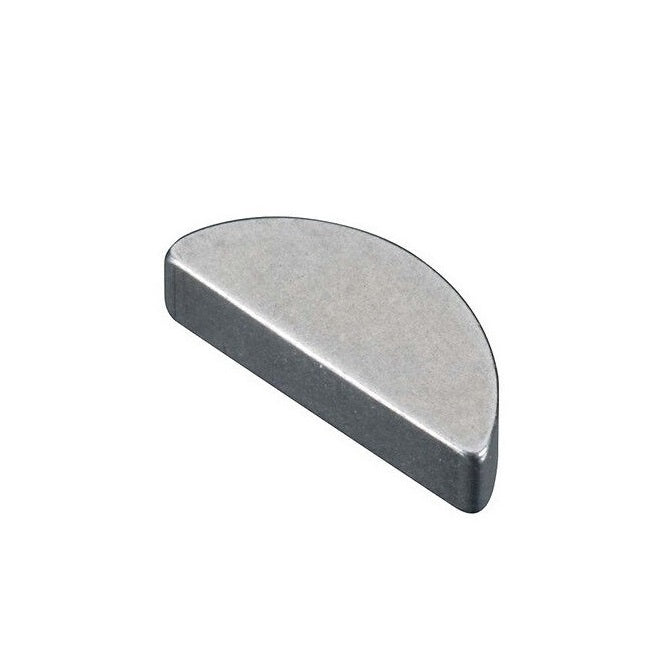

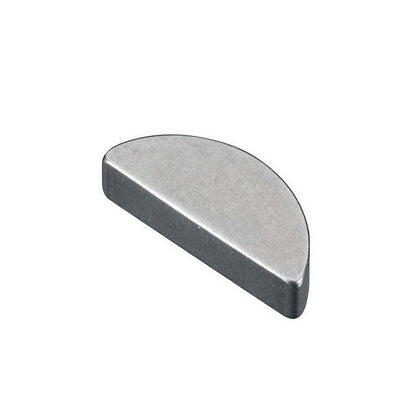

Woodruff Keys - 6.35x9.4x21.74 mm 303 Stainless Steel - Stainless Steel 303 Similar to A2, 304, 18-8 Key

Name: 1077112 | KW-064-094-217-S3 (Each) --- Woodruff Keys - 6.35x9.4x21.74 mm 303 Stainless Steel - Stainless Steel 303 Similar to A2, 304, 18-8 Key
Rating: 5.0 (1 reviews)

KW-064-094-217-S3 (Each)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

ExaktKey

Store Name: Small Parts & Bearings

Category: Keys - Woodruff - 303 Stainless Steel

Additional resources:
Keysteel Catalogue PDF

Price:

$6.14 AUD

~~$11.02 AUD~~ $6.14 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 10 available now

Order 50 or more
for $5.53 AUD Each

Product Details

Additional stock available from USA subject to Prior Sale = 311

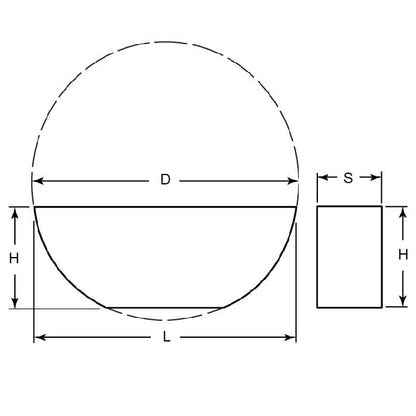

Thickness (S): 6.35mm
_{+/- 0.025}
_{(6.35mm is 0.25 in.)}

Stainless Steel 303 (Similar to A2, 304, 18-8)

Thickness (S): 6.35mm
_{+/- 0.025}
_{(6.35mm is 0.25 in.)}
Approx. Height (H): 9.4mm
_{+/- 0.250}
_{(9.4mm is 0.37 in.)}
Approx. Length (L): 21.74mm
_{(21.74mm is 0.856 in.)}
Basis Diameter (D): 22.23mm

Brand: ExaktKey
Country of Origin: US

Product Compliance and Data

Similar to

NoCor® 807SS
ANSI 807-SS
Key Size A Stainless
NoCor® WKS00A
Huyett® WKS-00A
KW064222S3

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
KW064094217S3, KW064094
