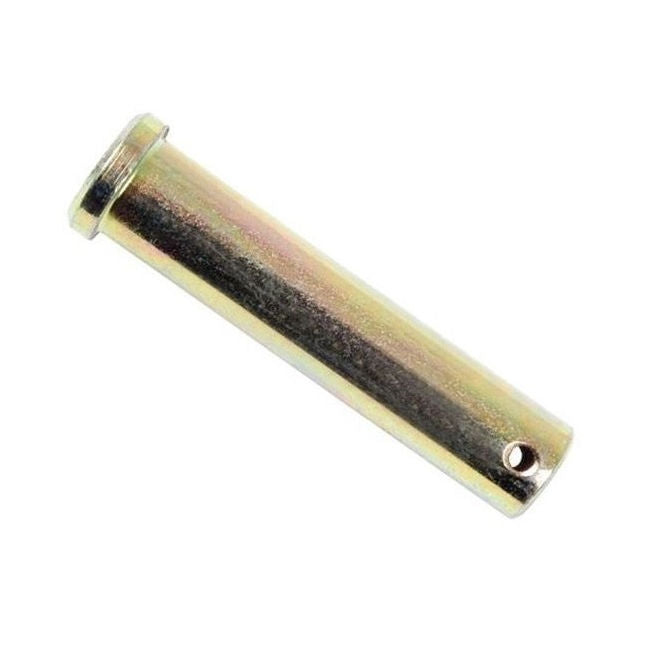

Clevis Pins - 6.35x18.64x22.23 mm Pin Locking - Zinc Plated Low Carbon Steel

CLP-064-0186-CZ (Pack of 10)

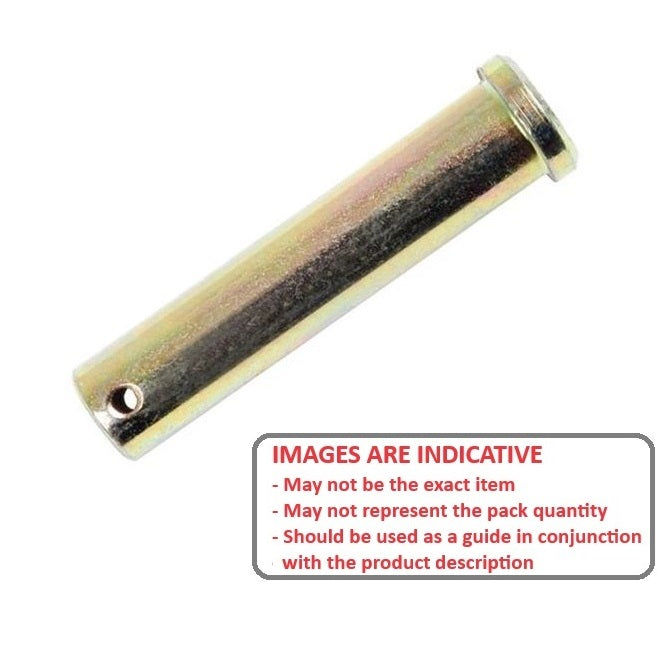

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

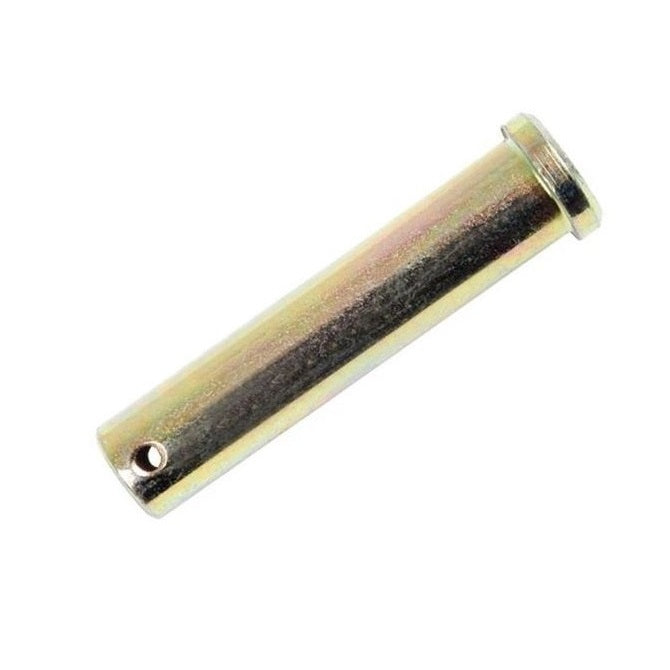

  • Clevis Pins - 6.35x18.64x22.23 mm - Zinc Plated Low Carbon Steel
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Master Pins Catalogue PDF
R-Clips
Split Pins
Price:
$3.32 AUD
$6.22 AUD $3.32 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
 Qty: 1 pack (10 pcs) available now

Order 50 or more packs of 10 (500 pcs)
for $2.99 AUD per 10 pack
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Sep 21, 2026

1/4x7/8 inch Pin - 6.35x18.64x22.23 mm Clevis Pins - Zinc Plated Low Carbon Steel - Sold Per 10:

Base Category: Pins - Clevis

Top Level Category: Pins - Clevis - Pin Locking - Zinc Plated

Product Details


Additional stock available from USA subject to Prior Sale = 43675

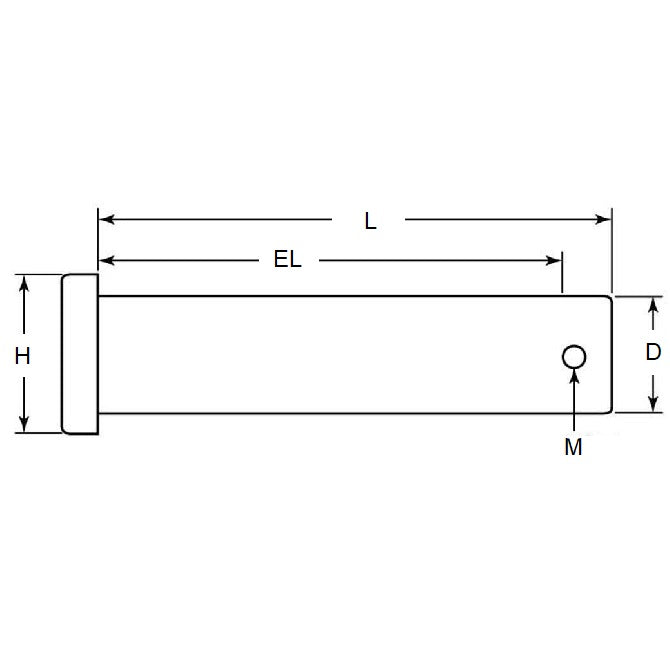

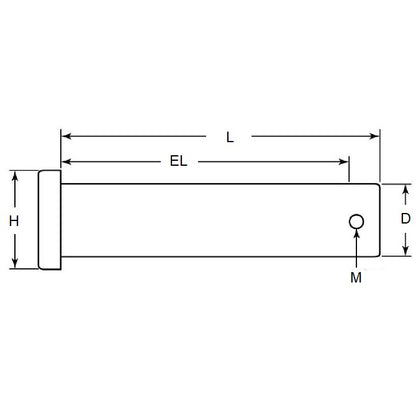

Nominal Pin Diameter (D): 6.35mm
- 0.05 / - 0.18
(6.35mm is 0.25 in.)

Zinc Plated Low Carbon Steel
  • Nominal Pin Diameter (D): 6.35mm
    - 0.05 / - 0.18
    (6.35mm is 0.25 in.)
  • Grip Length (EL): 18.64mm
    + 0.51 / - 0.00
    (18.64mm is 0.734 in.)
  • Nom. Length (L): 22.23mm
    + 0.51 / - 0.00
    (22.23mm is 0.875 in.)
  • Ret. Pin Dia. (M): 2.4mm
  • Suitable R-Clip: RCL-020-057-Z

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 97245A235
  • NoCor® CLP-0250-0875
  • NoCor® CLPZ-0250-0875
  • Huyett® CLPZ-0250-0875/B
  • NoCor® CLPZ-0250-0875/B
  • CLPZ02500875/B
  • CLP02500875
  • CLP0640186Z

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CLP0640186CZ, CLP064
View full details
