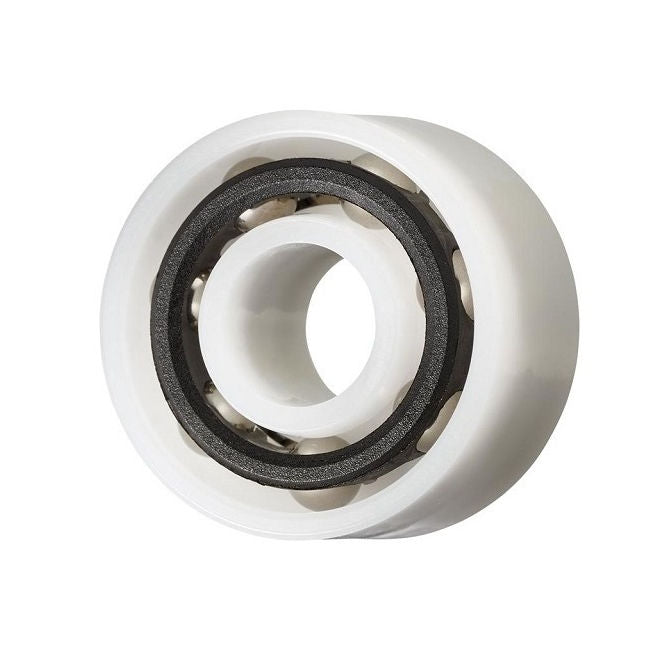

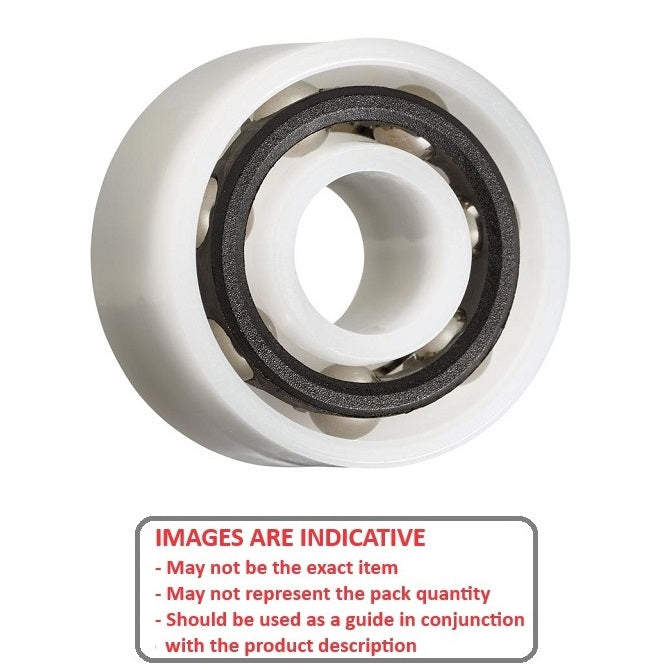

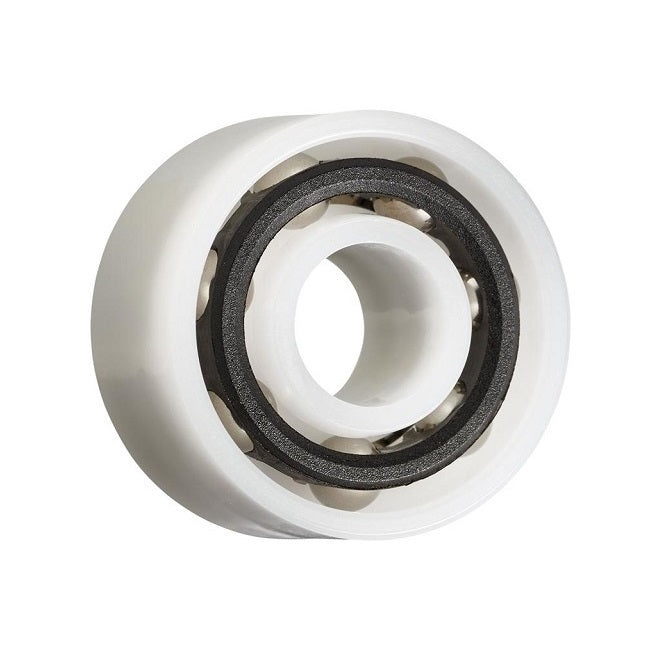

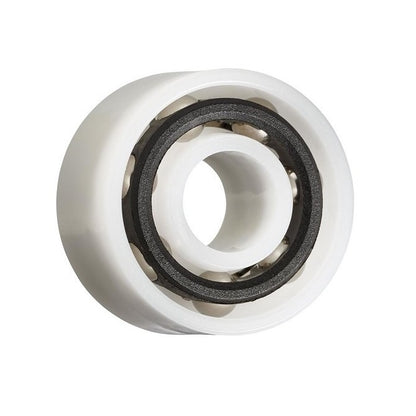

P-DR-R4G-AS6
Bearings - 6.35 mm x 15.875 mm x 9.525 mm
MBA
Additional resources:Tolerances
Acetal Bearings PDF Catalogue
Shafting
Qty: 1 available now
Order 50 or more for $69.43 AUD Each
Couldn't load pickup availability
Base Category: Bearings - Double Row Ball Semi Precision
Top Level Category: Bearings - Double Row Ball Semi Precision - Acetal with Stainless Balls

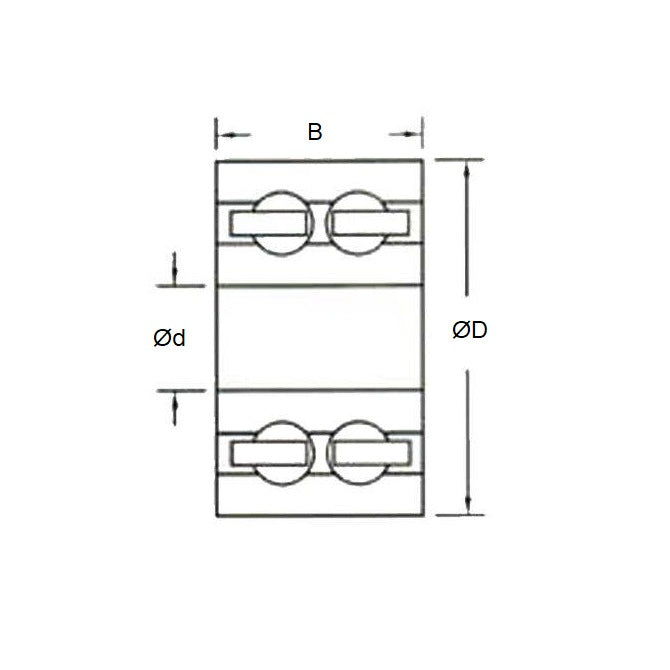

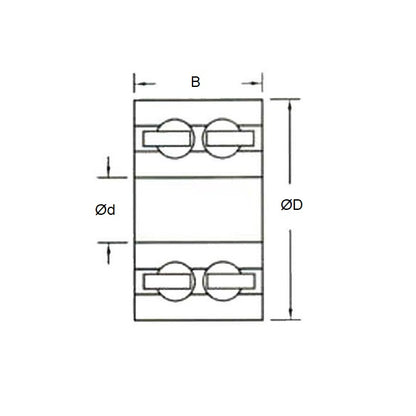

Product Details:ID (d): 6.350mm
+0.076/-0.000
Acetal with 316 Stainless Balls
- OD (D): 15.875mm
+0.000/-0.076
- Width (B): 9.525mm
+0.127/-0.000
- Lubrication: Unlubricated
- Max RPM in Air: 1881
- Precision Grade: Semi Precision
- Open
- Type: Double Row Radial
- Dynamic Load Rating: 22.7Kg
- Static Load Rating: 15Kg
Brand: KMS
Country of Origin: US
Alternatives: AR4DR-6, AS6DRR4G
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
