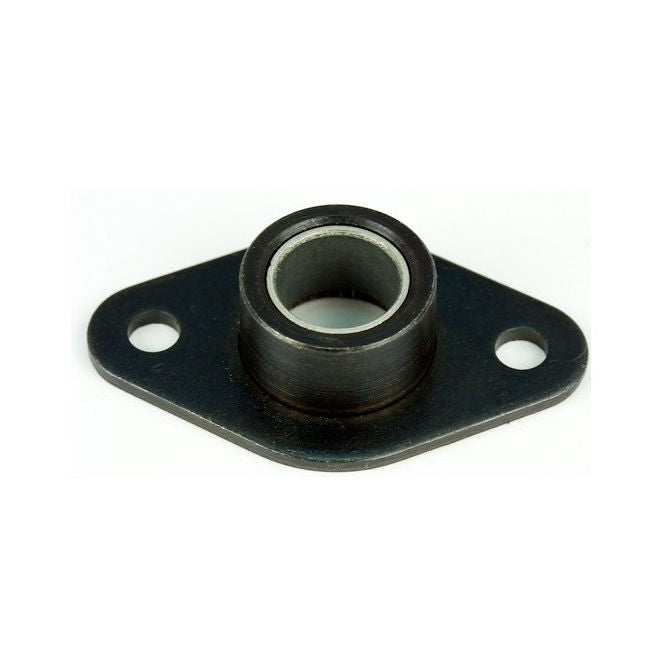

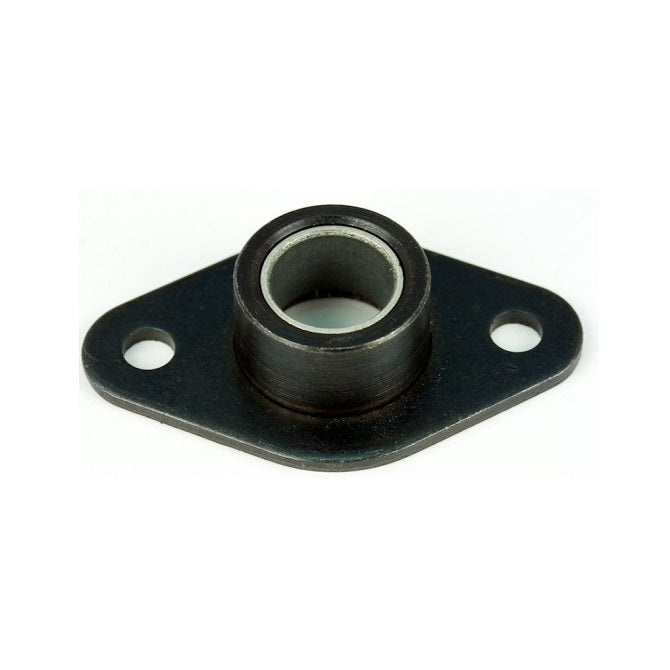

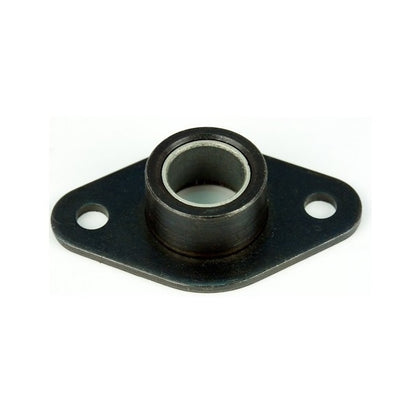

Flanged 2 Bolt Housing Assembly - 6.35x53.34x16.76 mm - PTFE Impregnated Bronze - Low Temperature

BFM-250-LT

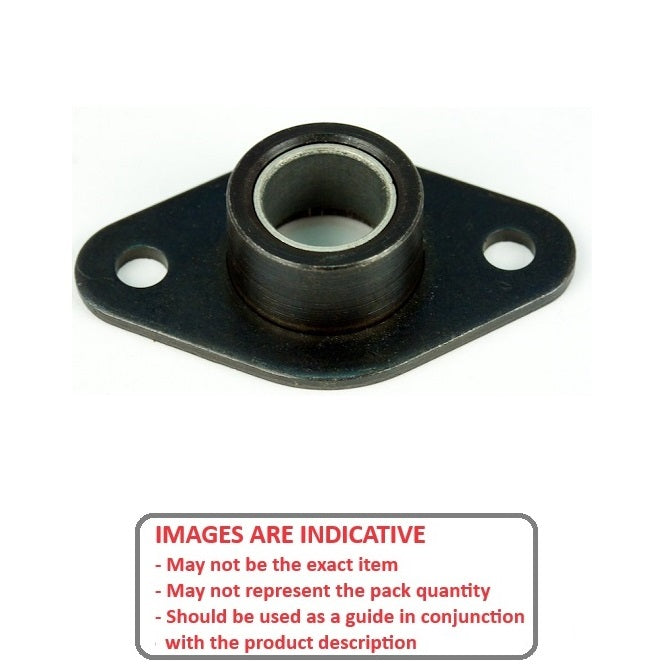

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Price:
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Qty: 4 available now
Only 4 may be ordered online. If you need a large quantity, please contact us.

Base Category: Housing Assembly - Flanged 2 Bolt

Top Level Category: Housing Assembly - Flanged 2 Bolt - Self Aligning - PTFE Bronze

Product Details:

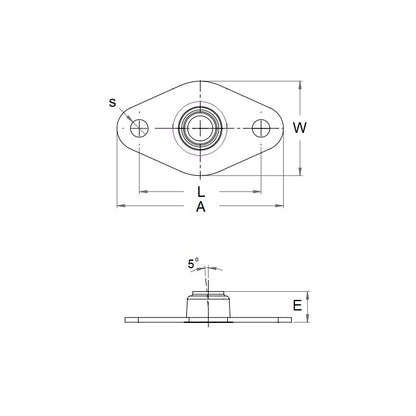

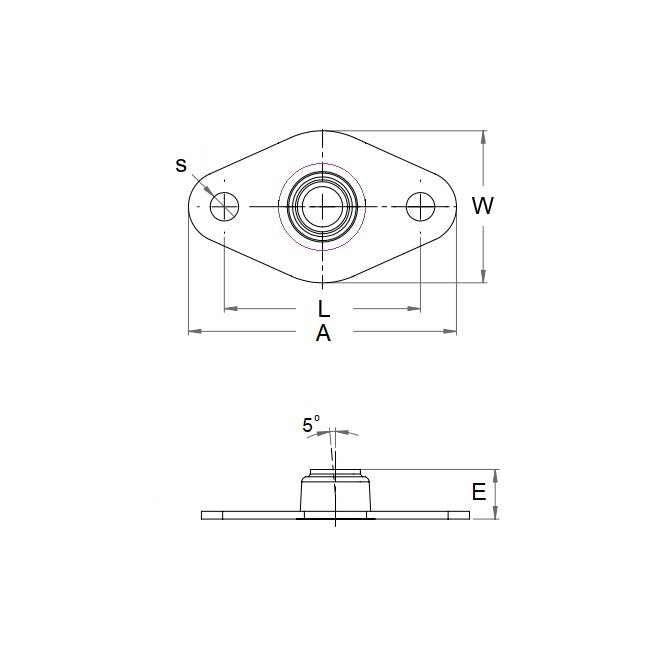

Nominal Shaft Size: 6.350mm
PTFE Impregnated Bronze - Low Temperature
  • Width (W): 53.34mm
  • Overall Length (A): 16.76mm
  • Overall Height (E): 30.23mm
  • Min to Max Shaft Dia.: 6.302 to 6.325mm
  • Max. Radial Dynamic Load: 1913N
  • Bolt Hole Centres (L): 38.86mm
  • Max Speed: 6015

Brand: MBA
Country of Origin: DE

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
