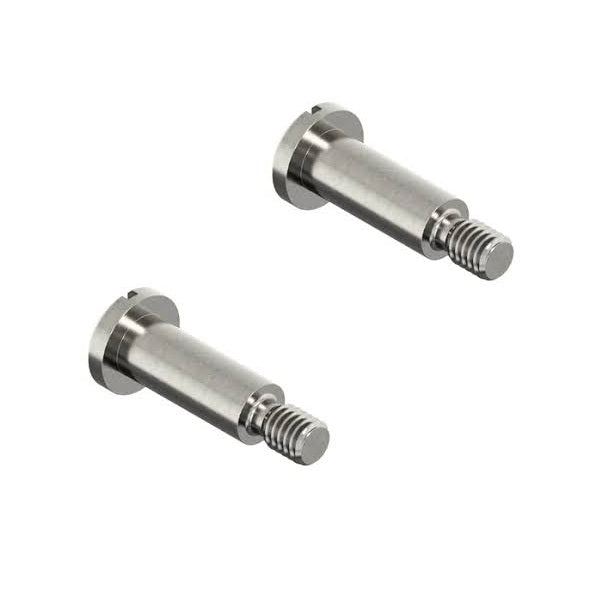

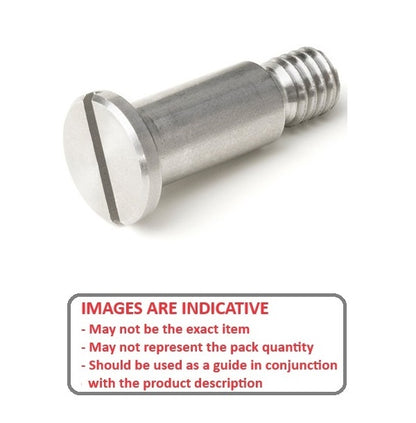

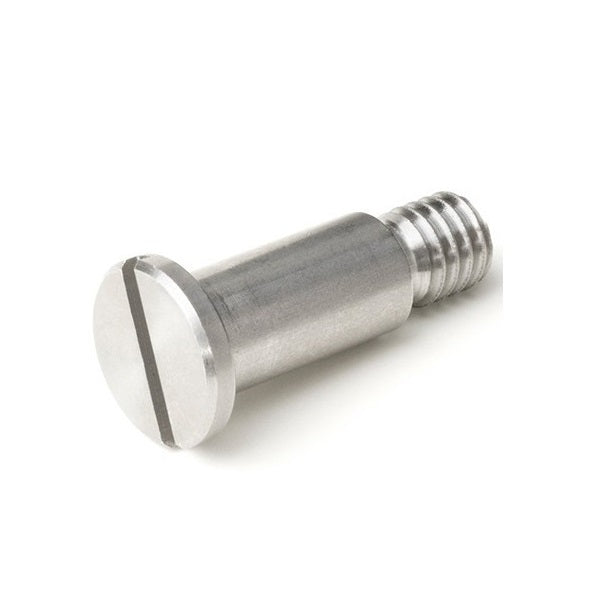

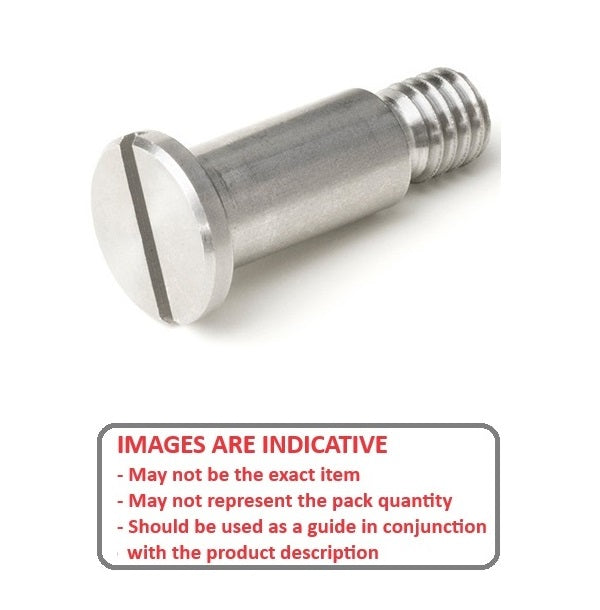

Shoulder Screws - 6.35x19.1 mm - 10-32 UNF - 4.76mm - Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw

Name: 1078488 | SHLD064-019-SL-S3 (Pack of 2) --- Shoulder Screws - 6.35x19.1 mm - 10-32 UNF - 4.76mm - Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw
Rating: 5.0 (1 reviews)

SHLD064-019-SL-S3 (Pack of 2)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Screws - Shoulder - Slotted - Stainless

Additional resources:
PDF Screws Catalogue
Washers
Nuts

Price:

$12.68 AUD

Priced, Stocked and Sold Per pack of 2

Excludes GST and overseas Taxes & Duties

Qty: 5 packs (10 pcs) available now

Order 50 or more packs of 2 (100 pcs)
for $11.41 AUD per 2 pack

Product Details

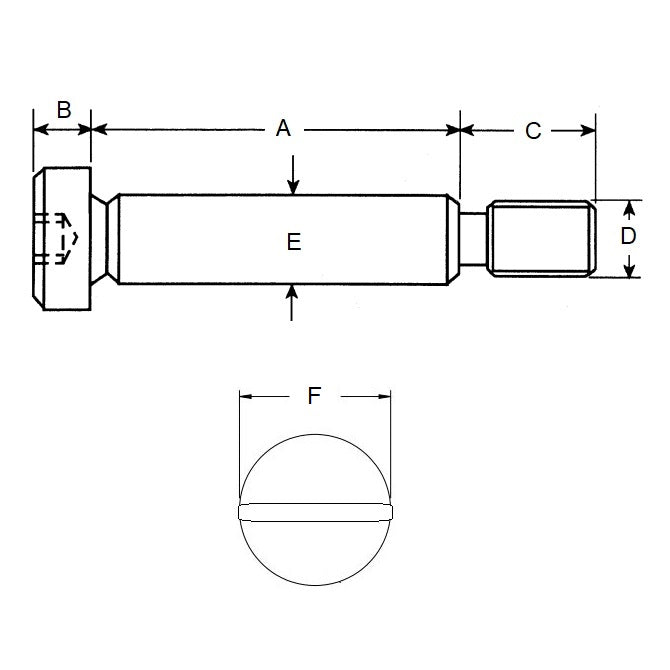

Shoulder Diameter (E): 6.350mm
_{- 0.025 / - 0.127}
_{(6.350mm is 0.25 in.)}

Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Shoulder Diameter (E): 6.350mm
_{- 0.025 / - 0.127}
_{(6.350mm is 0.25 in.)}
Shoulder Length (A): 19.100mm
_{(19.100mm is 0.752 in.)}
Thread (D): 10-32 UNF (4.76mm)
Max. Thread Length (S): 6.35mm
Head Height (H): 4.76mm
Head Diameter: 9.53mm
Drive Type: Slotted Drive

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Reid Tool® ART-120
ART120
A9X150824
A9X15-0824

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SHLD064019SLS3, SHLD064019SL
