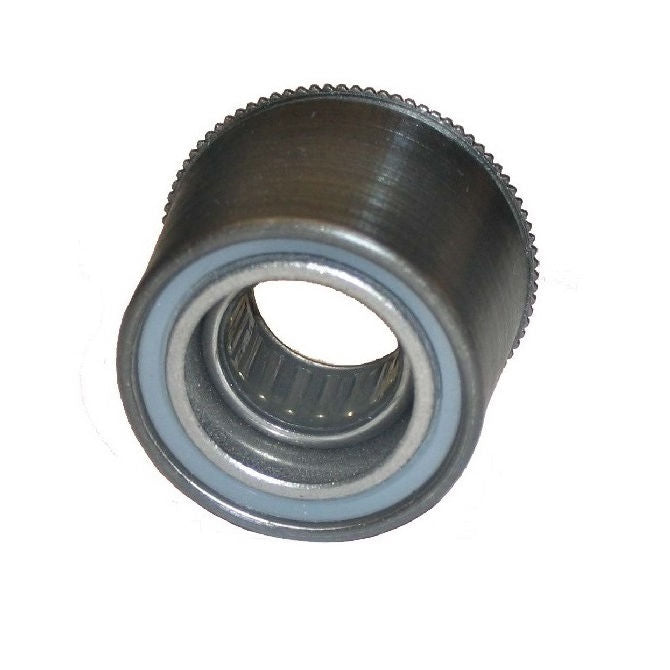

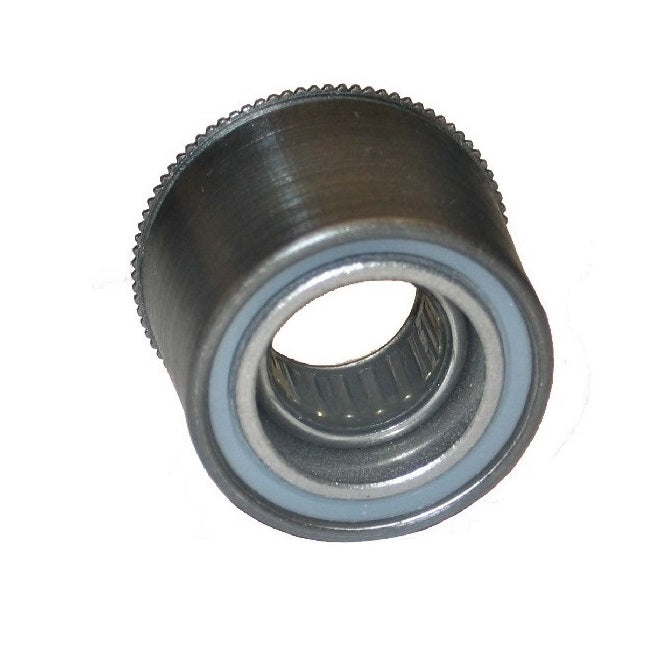

Self Clinching Bearings - 6.35 16.256 to 16.332 7.14 mm Self Aligning - Chrome Steel in Carbon Steel Bearing

SBS1-250 (PK-3)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Self Clinching Bearings - 6.35 16.256 to 16.332 7.14 mm - Chrome Steel in Carbon Steel
1 4

MBA

Store Name: Small Parts & Bearings

Price:
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties
 Qty: 1 pack (3 pcs) available now
Only 1 pack may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Self Clinching

Top Level Category: Bearings - Self Clinching - Self Aligning - Miniature

Product Details


Deleted Item. Available while stocks last.

Nominal Shaft Size: 6.350mm
(6.350mm is 0.25 in.)

Chrome Steel in Carbon Steel
  • Nominal Shaft Size: 6.350mm
    (6.350mm is 0.25 in.)

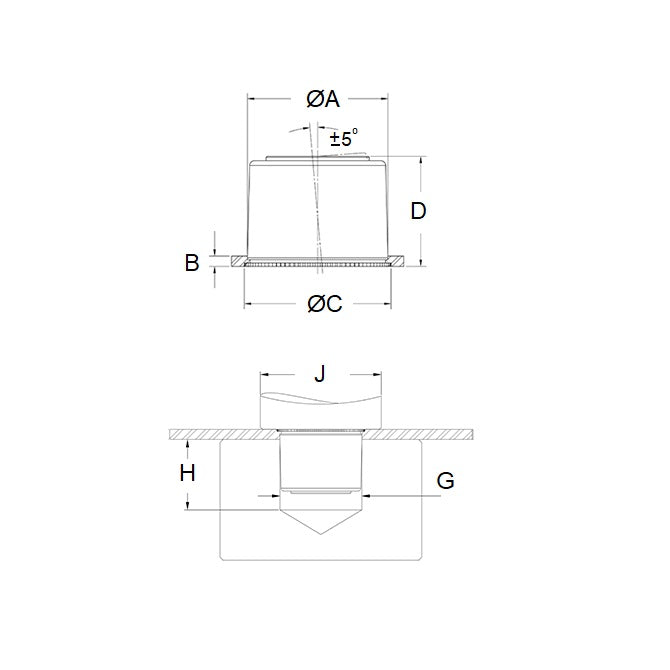

  • Min. Panel Hole (A): 16.256 to 16.332mm
    (16.256 to 16.332mm is 0.64 in.)
  • Overall Width (D): 7.14mm
    (7.14mm is 0.281 in.)
  • Max Speed: 40000RPM
  • Clinching Diameter (C): 17.5mm
  • Max. Radial Dynamic Load: 50kgf
  • Radial Static Load Capacity: 27kgf

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.
