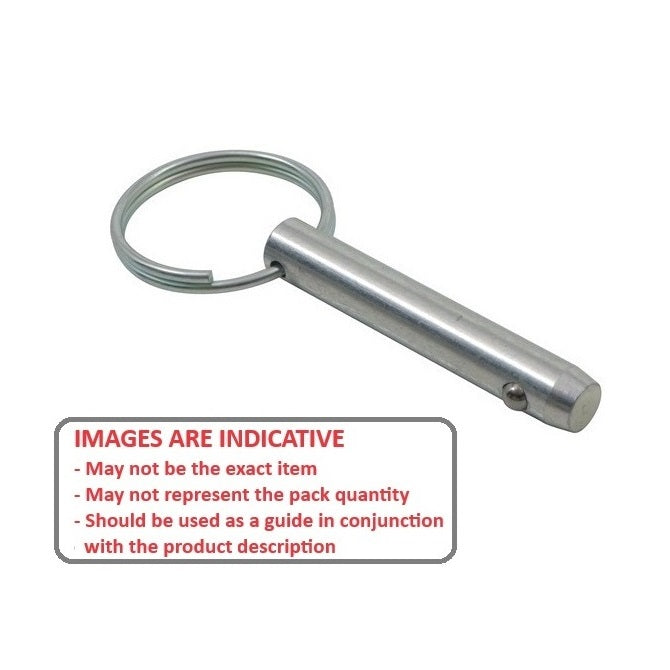

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

BLP-064-0381-K1-S6 (2 Pcs)

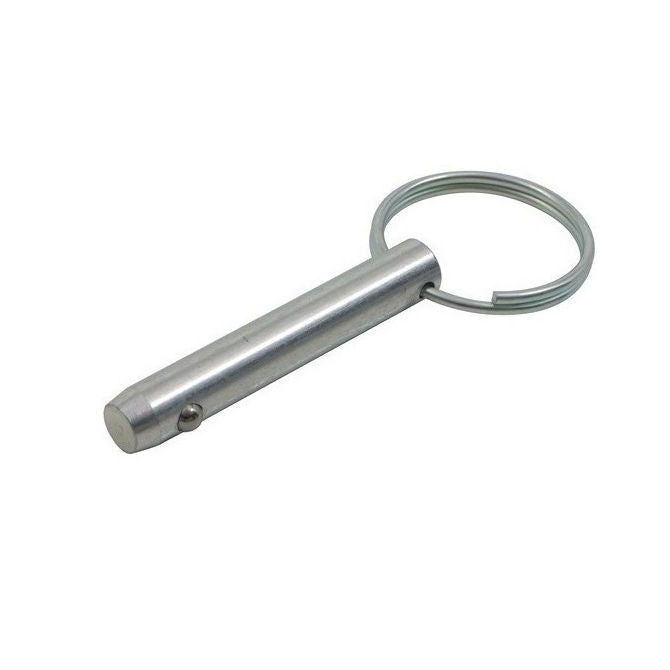

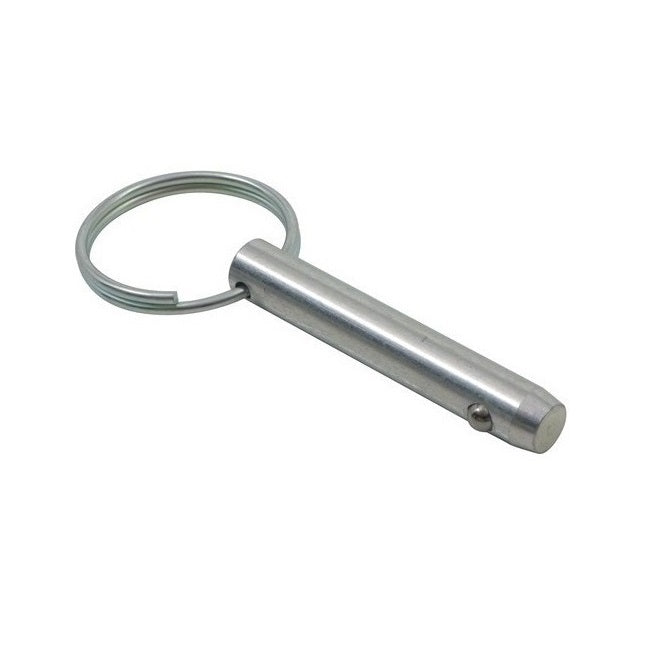

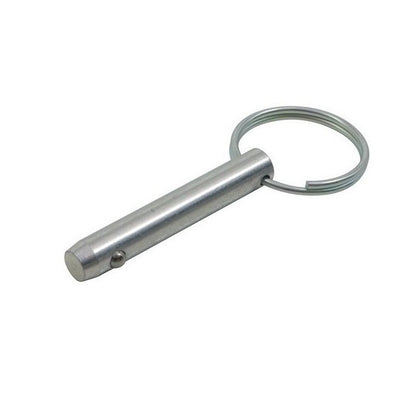

Ball Lock Pins - 6.35 mm x 38.1 mm 316 Stainless Steel

MBA

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Price:
$8.86 AUD
$8.86 AUD
per 2
Qty: 12 available now (24 pcs)
Order 50 or more (100 pcs) for $7.97 AUD per 2
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Feb 13, 2025

Base Category: Pins - Ball Lock

Top Level Category: Pins - Ball Lock - Keyring Style - 316 Stainless Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 147

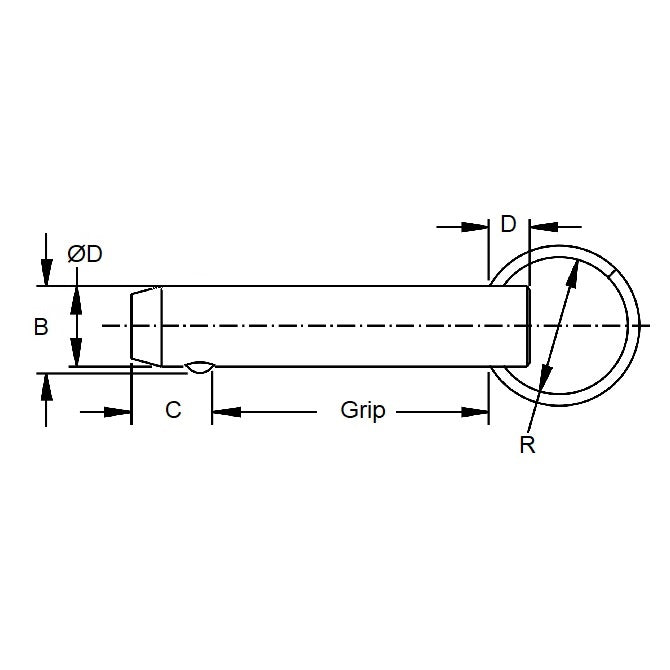

Nominal Diameter: 6.35mm
Stainless 316 Grade
  • Grip Length: 38.10mm
  • Pin Material Grade: 316 Stainless Steel
  • Locking Ball to End (C ): 7.93mm
  • Open Ball Distance (B): 7.26mm
  • Detent Style: 1 Ball Plain Pin No Shoulder
  • Ring Diameter (R ): 25.40mm
  • Depth of Ring in Pin (D): 5.59mm

Brand: MBA
Country of Origin: US

Alternatives: 95255A268, DTPS6-0250-1500

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
