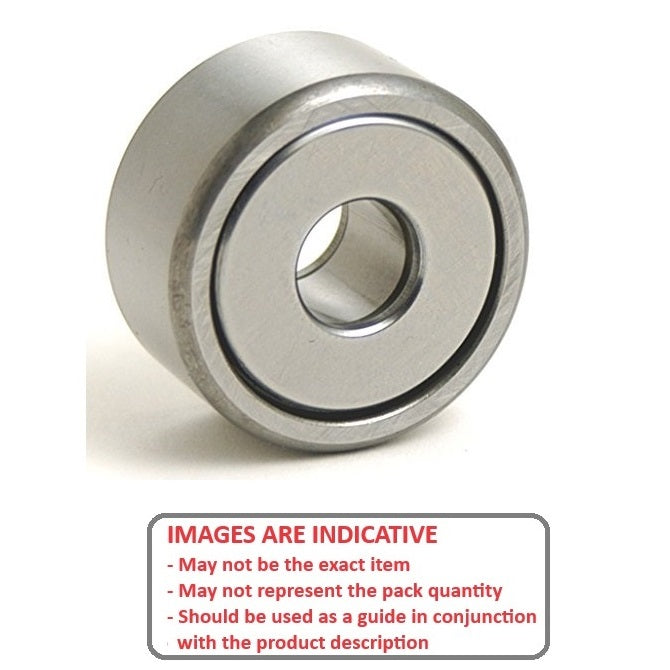

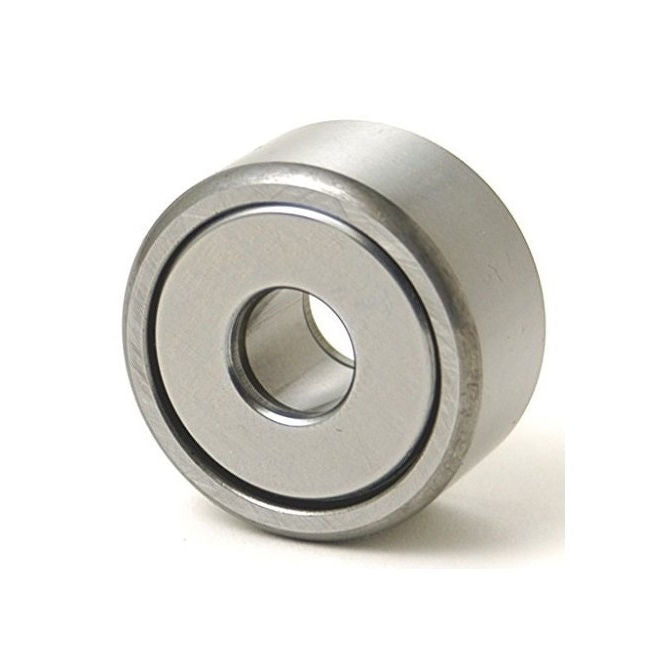

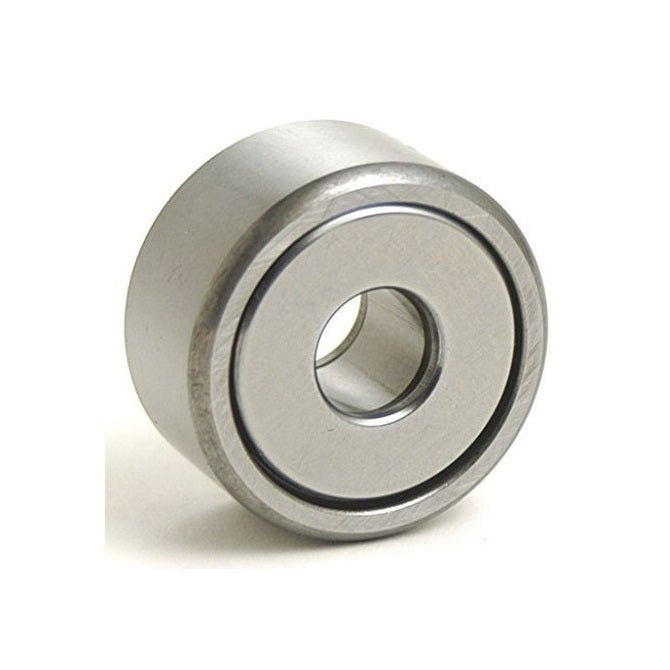

Track Rollers - 6x19x11 mm - Steel

NART6UUR

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Price:
$30.00 AUD
$57.00 AUD $30.00 AUD
Each
Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Base Category: Rollers - Track

Top Level Category: Rollers - Track - With Inner Race

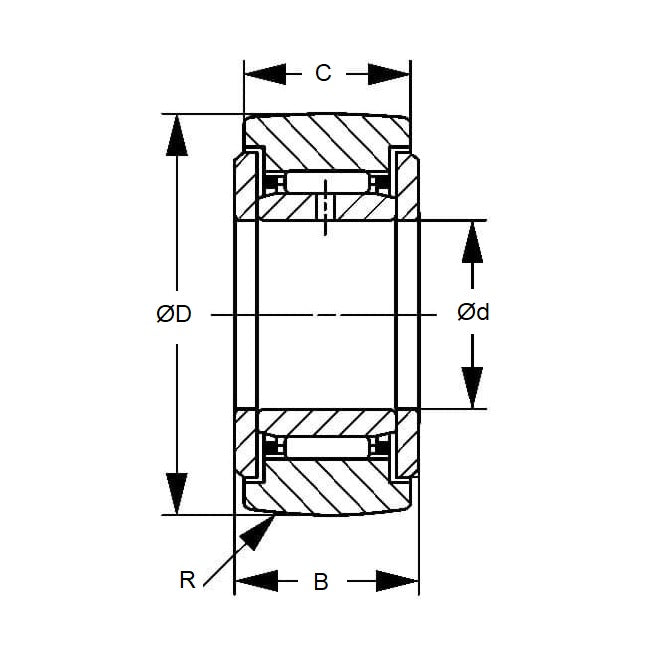

Product Details:

ID (d): 6.00mm
Steel
  • OD (D): 19.00mm
  • Width (C): 11.00mm
  • Inner Ring Width (B): 12.00mm
  • OD Type: Radius (500mm)
  • Dynamic Load Rating: 430.00kgf
  • Static Load Rating: 480.00kgf
  • Closures: Shields with Seal

Brand: MBA
Country of Origin: DE

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternative Parts Include: NART-6UUR, NATR6PP, NATR6-PP, NART6UUR, Nachi, SKF

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
