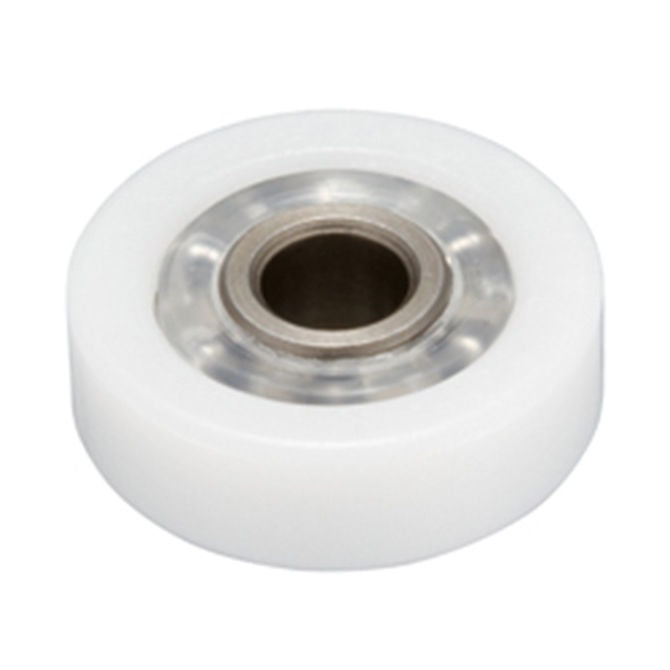

Special Type Bearings - 6x22 - 7.000 / 9.000 / 1 mm - Acetal with Mild Steel Inner Race Bearing

Name: 1073469 | TOK-DR-22-H6W1 (Pack of 2) --- Special Type Bearings - 6x22 - 7.000 / 9.000 / 1 mm - Acetal with Mild Steel Inner Race Bearing
Rating: 5.0 (1 reviews)

TOK-DR-22-H6W1 (Pack of 2)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Bearings - Special Type - Acetal

Price:

$3.56 AUD

~~$7.86 AUD~~ $3.56 AUD

Priced, Stocked and Sold Per pack of 2

Excludes GST and overseas Taxes & Duties

Qty: 19 packs (38 pcs) available now

Product Details

Deleted Item. Available while stocks last.

ID (d): 6.000mm
_{+ 0.10 / - 0.00}
_{(6.000mm is 0.236 in.)}

Acetal with Mild Steel Inner Race

ID (d): 6.000mm
_{+ 0.10 / - 0.00}
_{(6.000mm is 0.236 in.)}
O.D. (D): 22.000mm
_{+ 0.00 / - 0.10}
_{(22.000mm is 0.866 in.)}
Width (W): 7.000 / 9.000mm
_{+ 0.00 / - 0.20}
_{(7.000 / 9.000mm is 0.276 in.)}
W1: 1.000mm
W2: 1.000mm
N: 9.50mm
Type: 4
Special Features: Mild steel inner race 9mm wide extends 1mm each side.
Dynamic Load Rating: 20Kg
_{at 300 RPM}
_{at 300 RPM}

Brand: MBA
Country of Origin: JP

Product Compliance and Data

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
TOKDR22H6W1, TOKDR
