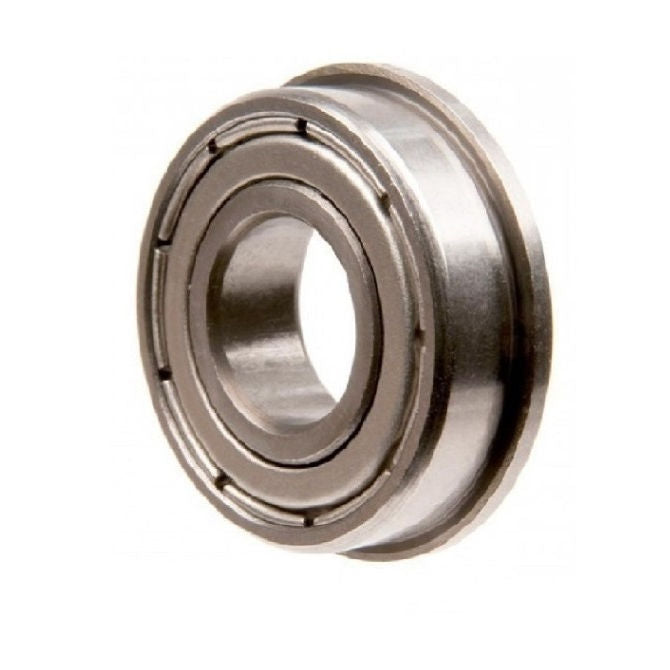

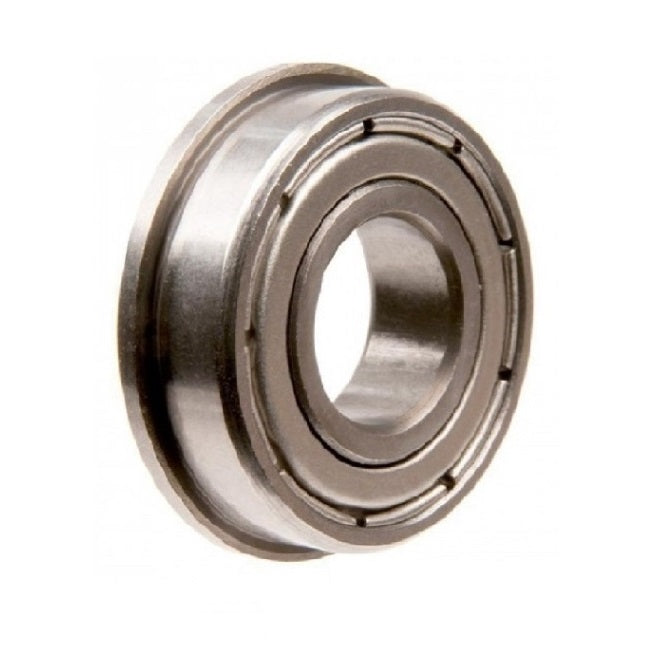

Single Row Ball Bearings - 5x13x4 mm - Chrome Steel SAE 52100

F695-ZZ-MC3

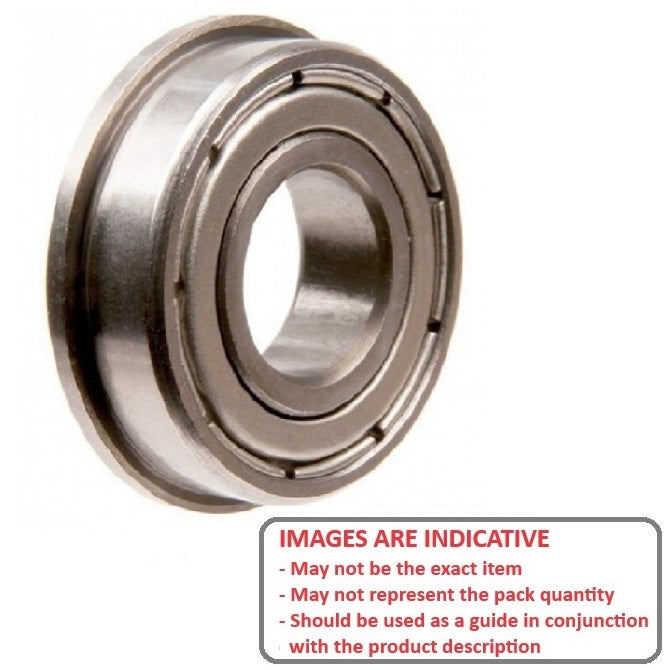

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$5.41 AUD
$6.49 AUD $5.41 AUD
Each
Qty: 79 available now
Order 50 or more for $4.87 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 02, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

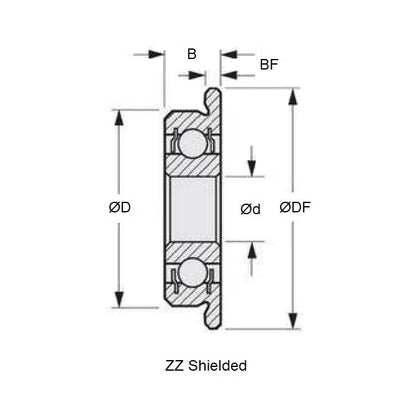

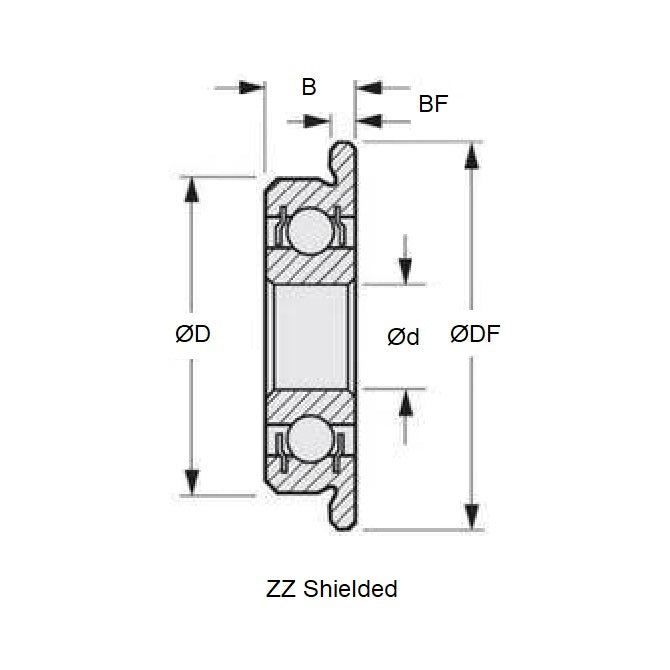

Product Details:

ID (d): 5.000mm
+ 0.000 / - 0.0075

Chrome Steel SAE 52100
  • OD (D): 13.000mm
    + 0.000 / - 0.0075
  • Width (B): 4.000mm
    + 0.000 / - 0.125
  • Flange Diameter (DF): 15.000mm
  • Flange Width (BF): 1.000mm
  • Precision Grade: Abec 1
  • Closure Type: ZZ
  • Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Alternative Parts Include: RF1350-ZZ, RF1350ZZ, 57155K575, FAY5ZZ, FAY5-ZZ, FL695-ZZ, FL695ZZ, F695-ZZ, F695, F6952Z, F695-2Z, F695ZZ, F695SS, F695ZZMC3, F695-ZZMC3, ALTPART, GRW, ISO, ADR, NTN, F695BASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
