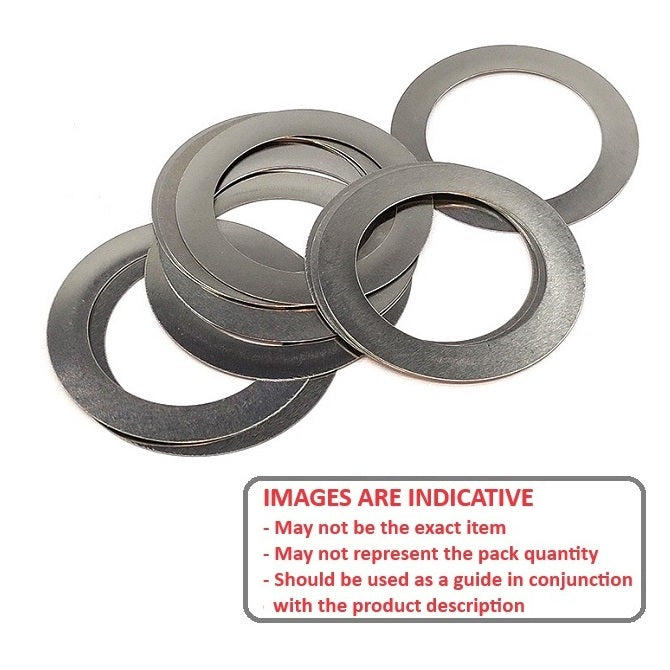

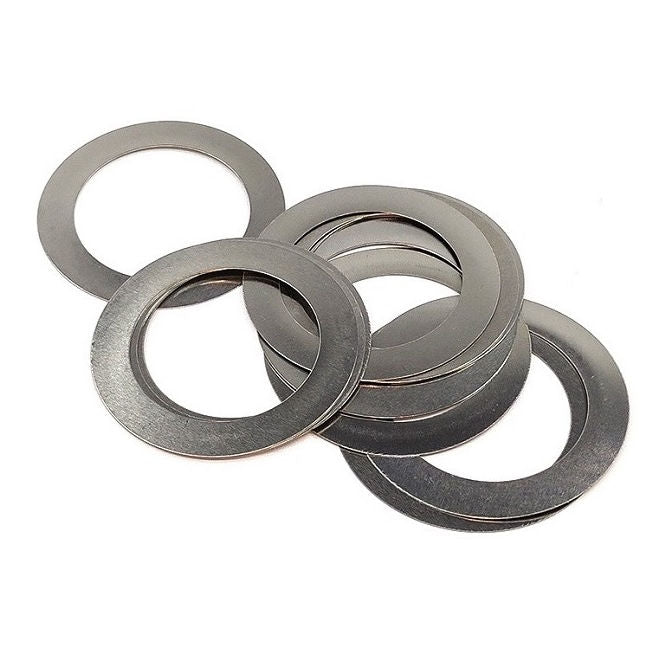

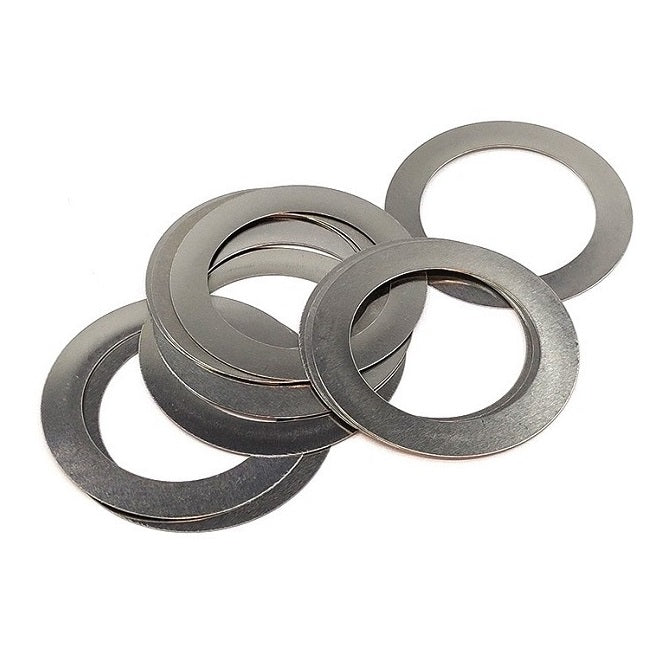

Flat Washers - 56x72x0.2 mm Precision Shim - Carbon Spring Steel Self Finish Washer

Name: 1167869 | W0560-FP-072-0020-CL (PK-10) --- Flat Washers - 56x72x0.2 mm Precision Shim - Carbon Spring Steel Self Finish Washer
Rating: 5.0 (1 reviews)

W0560-FP-072-0020-CL (PK-10)

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store Name: Small Parts & Bearings

Category: Washers - Flat - Precision Shim - Carbon Spring Steel

Additional resources:
Precision Shim Washer PDF Catalogue
Washers and Spacers PDF Catalogue
Screws

Price:

$4.59 AUD

Priced, Stocked and Sold Per 10 Units

Excludes GST and overseas Taxes & Duties

Qty: 46 packs (460 pcs) available now

Order 50 or more packs (500 pcs)
for $4.13 AUD per 10

Special Offer: If you purchase the remaining quantity of this item, you will receive the bulk price.

Product Details

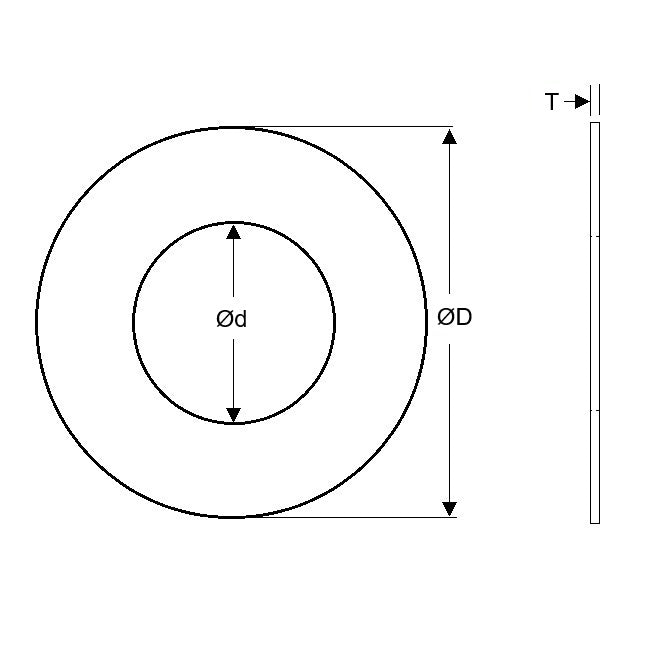

Nominal Inside Diameter (d): 56.000mm
_{+ 0.100 / + 0.400}
_{(56.000mm is 2.205 in.)}

Carbon Spring Steel Self Finish

Nominal Inside Diameter (d): 56.000mm
_{+ 0.100 / + 0.400}
_{(56.000mm is 2.205 in.)}
Nominal Outside Diameter (D): 72.000mm
_{- 0.100 / - 0.400}
_{(72.000mm is 2.835 in.)}
Thickness (T): 0.200mm
_{+ 0.000 / - 0.040}
_{(0.200mm is 0.008 in.)}
Other: Rockwell B 80 Min
Grade: Precision
Other: DIN988
Min. Actual ID (Ref): 56.1mm

Brand: MBA
Country of Origin: TW

Product Compliance and Data

Similar to

ExaktKey® S78490
NoCor® S78490
Springmaster S78490
XOSpring® S78490
CPS56X72X0.2
W0560FP072002C
W0560FP072002CL
P56x72x0.2

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
