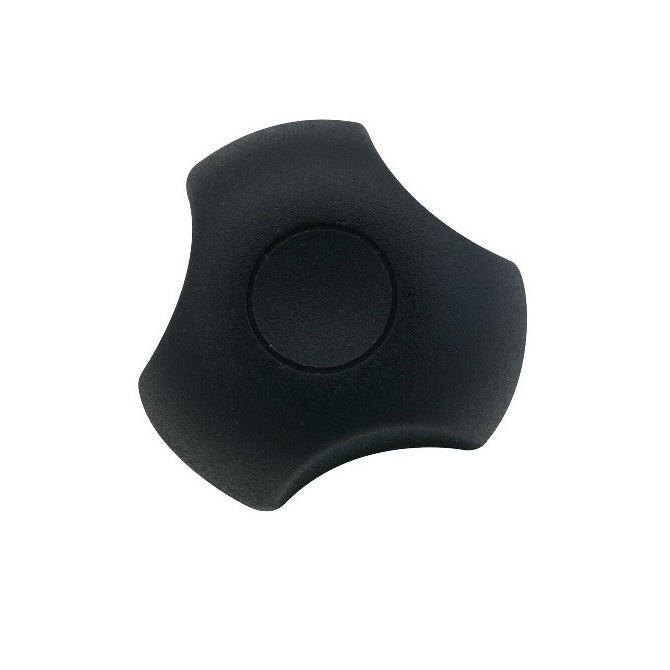

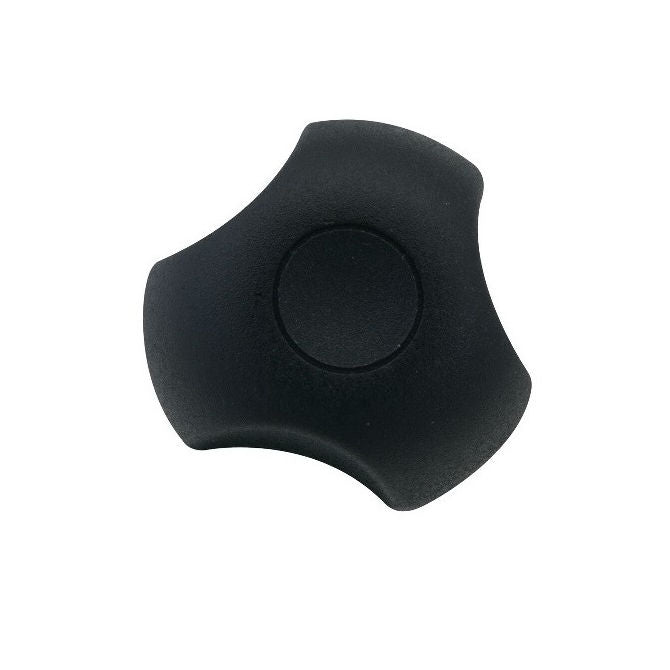

Lobe Knobs - 5/16-18 UNC - 7.94mm - 50.04x44.5 mm Three Lobe - Plated Steel Knob

KM079C-050-3LL (Each)

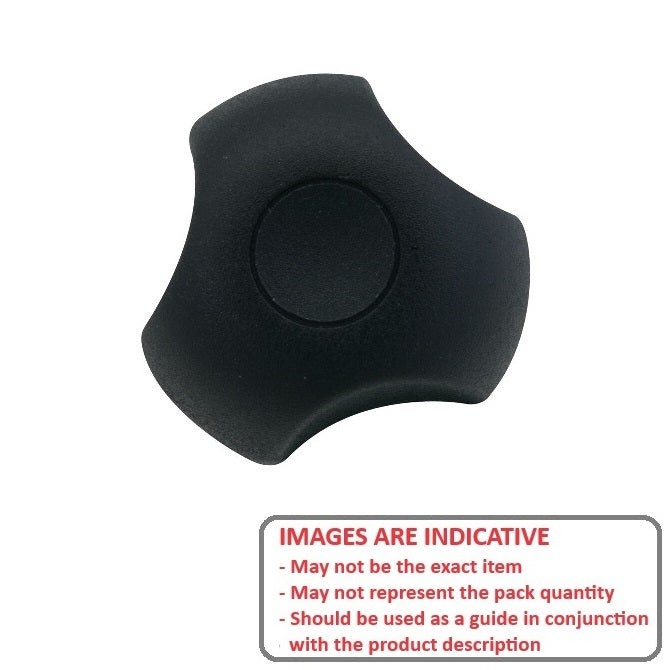

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Lobe Knobs - 5/16-18 UNC -7.94mm- 50.04x44.5 mm - Plated Steel
1 4

MBA

Store Name: Small Parts & Bearings

Additional resources:
Knobs PDF Quick Guide by Thread Size
Price:
$6.50 AUD
$7.80 AUD $6.50 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 5 available now

Order 50 or more
for $5.85 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before May 30, 2026

Base Category: Knobs - Lobe

Top Level Category: Knobs - Lobe - Three Lobe - Male - Standard

Product Details

Thread Size: 5/16-18 UNC (7.94mm)

Plated Steel

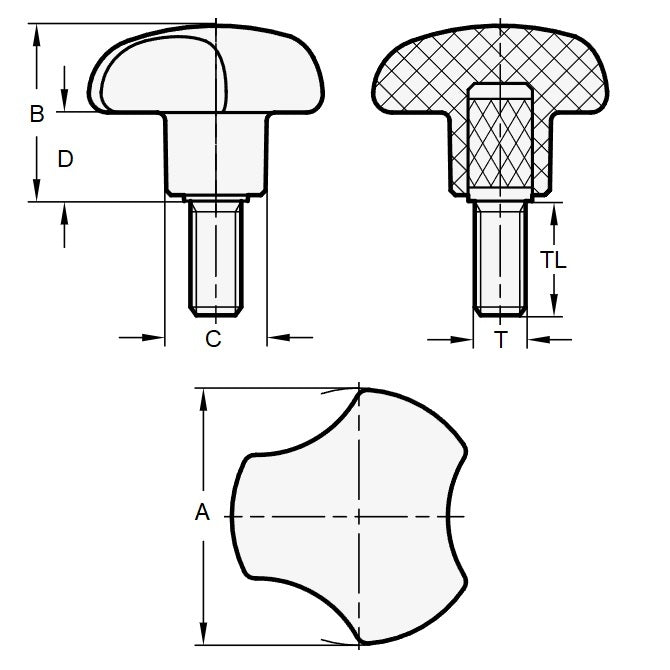

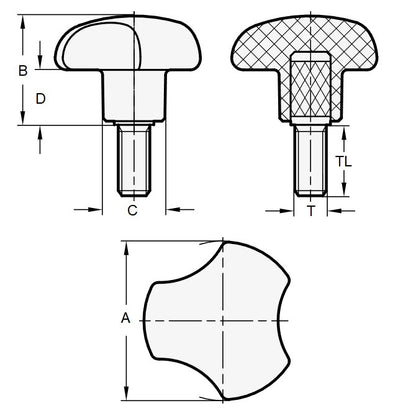

  • Thread Size: 5/16-18 UNC (7.94mm)
  • Head Diameter (A): 50.04mm
    (50.04mm is 1.97 in.)
  • Thread Length: 44.5mm
    (44.5mm is 1.752 in.)
  • Colour: Black
  • Hub Diameter (C): 21.08mm
  • Hub Length (D): 8.89mm
  • Knob Height (B): 30.99mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Reid Tool® RST-146
  • RST146

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
