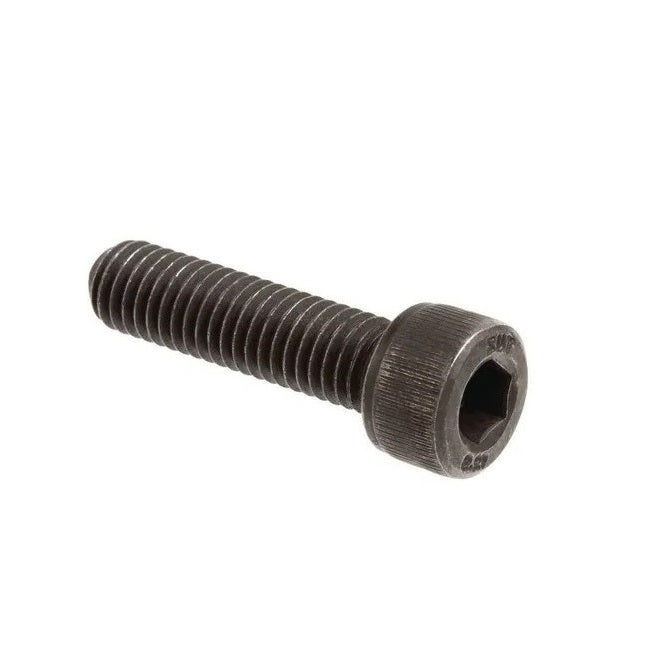

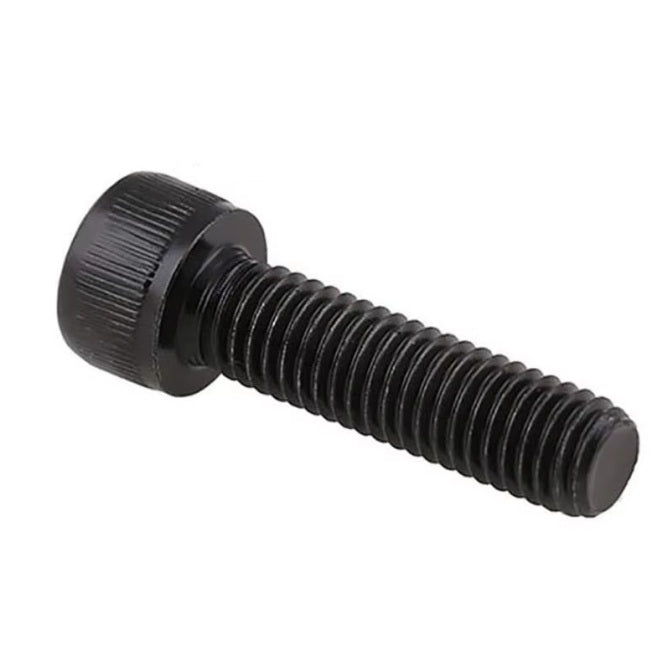

Socket Cap Screws - 5/16-18 UNC - 7.94mm - 25.4 mm - High Tensile Steel / Black Oxide Alloy Steel Screw

SC079C-025-C-SK-C (Pack of 10)

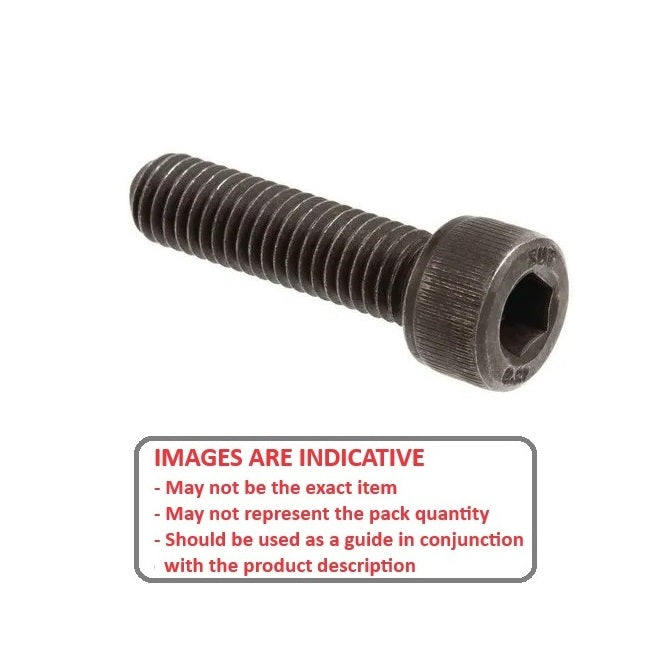

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Socket Cap Screws - 5/16-18 UNC - 7.94mm - 25.4 mm - High Tensile Steel / Black Oxide Alloy Steel
1 4

Brighton Best

Store Name: Small Parts & Bearings

Additional resources:
PDF Screws Catalogue
Washers
Nuts
Price:
$2.77 AUD
$5.18 AUD $2.77 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
 Qty: 9 packs (90 pcs) available now

Order 50 or more packs of 10 (500 pcs)
for $2.49 AUD per 10 pack
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Sep 07, 2026

5/16-18 UNC (7.94mm) 25.4 mm - High Tensile Steel / Black Oxide Socket Cap Screws - High Tensile Steel Black Oxide - Sold Per 10:

Base Category: Screws - Socket Cap

Top Level Category: Screws - Socket Cap - Alloy Steel - Black Oxide

Product Details

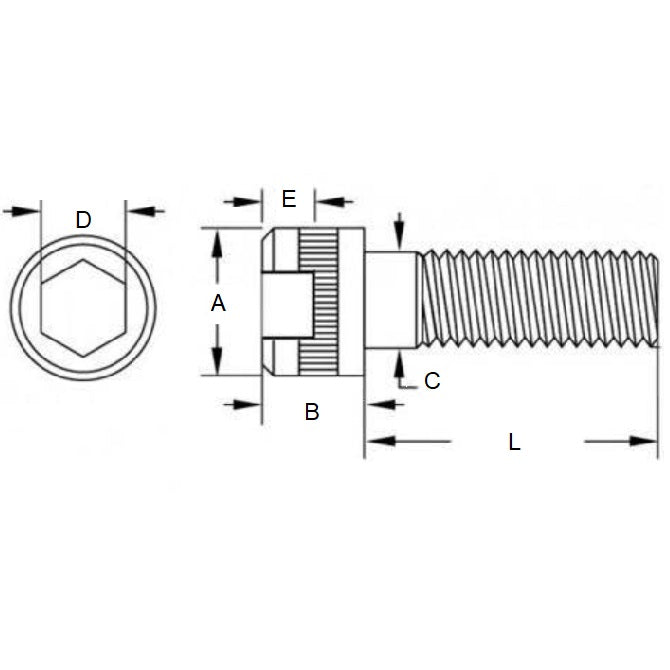

Thread Size (C): 5/16-18 UNC (7.94mm)

High Tensile Steel Black Oxide
  • Thread Size (C): 5/16-18 UNC (7.94mm)
  • Thread Length (L): 25.4mm
    (25.4mm is 1 in.)
  • Material: High Tensile Steel / Black Oxide
  • Head Length (B Max.): 7.9mm
  • Head Diameter (A Max.): 11.9mm
  • Drive Depth (E): 3.84mm
  • Shank Diameter (C): 7.78 - 7.94mm
  • Hex Key (D): 6.35 (1/4)mm
  • Pitch: 1.411mm
  • Threads Per Inch: 18TPI
  • Min thread Length: 25.4mm

Brand: Brighton Best
Country of Origin: TW

Product Compliance and Data

Similar to

  • ALTPART
  • 91251A583
  • Reid Tool® HK-72128B
  • HK72128B

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SC079C025CSKC, SC079C025C
