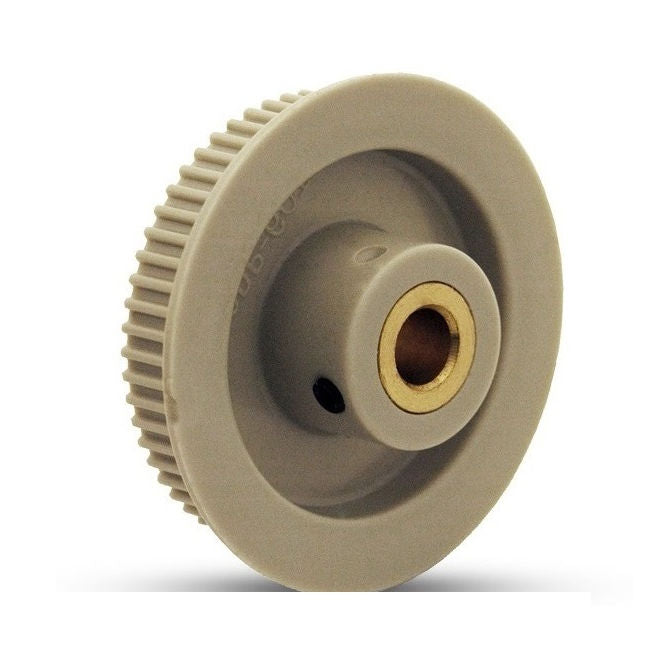

P-MXL-042-064SF-PP-GI-048
Pulleys - 42 Teeth x 6.4 mm x 4.763 mm
MBA
Additional resources:Timing Pulleys Catalogue PDF
MXL Section Timing Belts
Qty: 1 available now
Couldn't load pickup availability
Base Category: Pulleys - Inch Timing
Top Level Category: Pulleys - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Plastic - Insert
Product Details:Teeth: 42Nr.
Plastic
- Max Belt Width: 6.40mm
- Bore (d): 4.763mm
- Locking Type: Set Screw

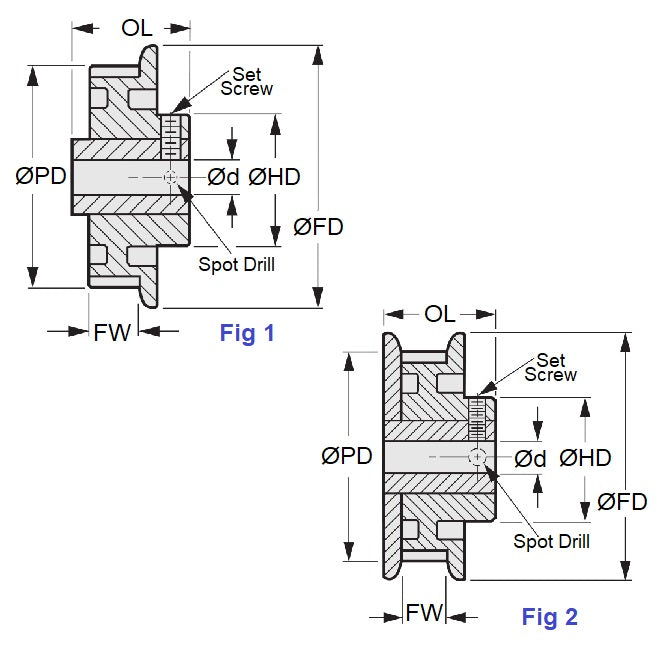

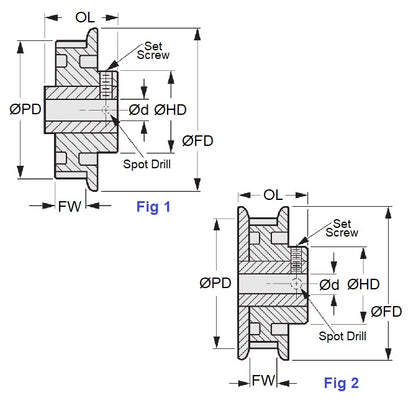

- Type (See Diagram): Fig 1mm
- Pitch Diameter (PD): 27.15mm
- Flange Diameter (FD): 31.5mm
- Overall Length: 17.5mm
- Hub Diameter (HD): 17.5mm
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Alternatives: A6Z16-042SF2506
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
