CLP-048-0091-S6 (5 Pcs)

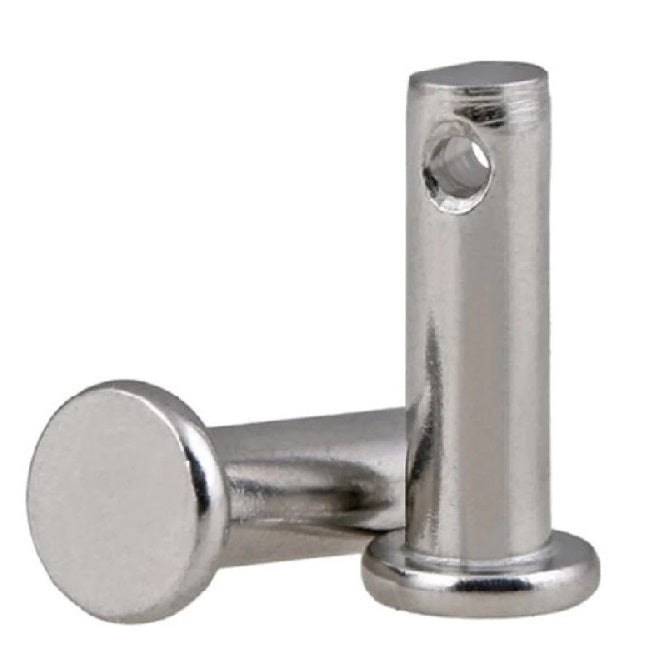

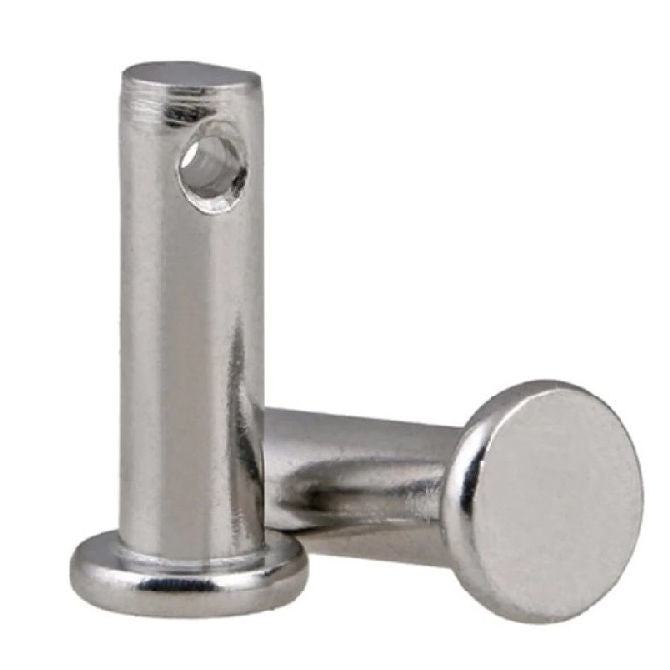

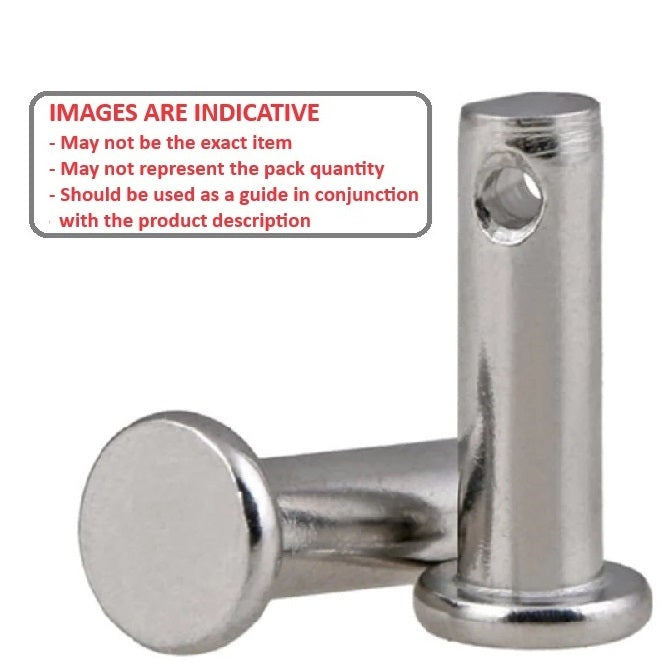

Pins - 4.76 mm x 9.12 mm x 12.7 mm
MBA
Additional resources:Master Pins Catalogue PDF
R-Clips
Split Pins
Qty: 18 available now (90 pcs)
Order 50 or more (250 pcs) for $5.11 AUD per 5
Couldn't load pickup availability
Base Category: Pins - Clevis
Top Level Category: Pins - Clevis - Pin Locking - Stainless Steel 316
Product Details:Additional stock available from USA subject to Prior Sale = 4322

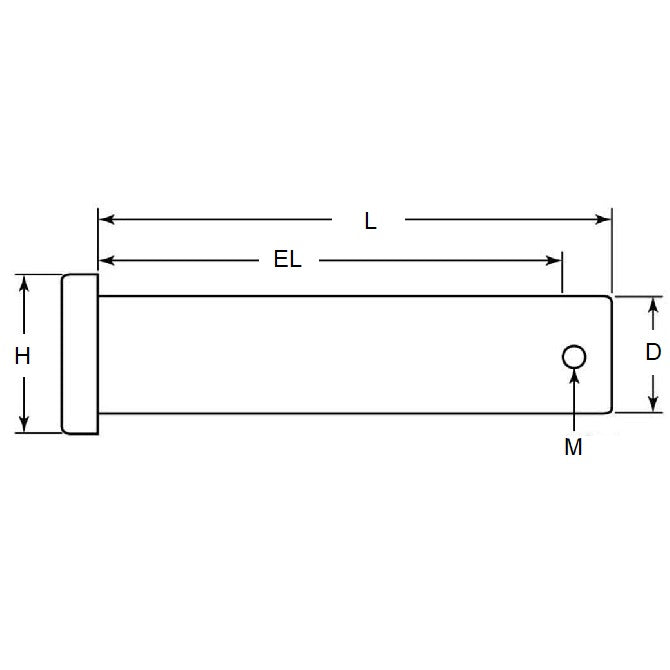

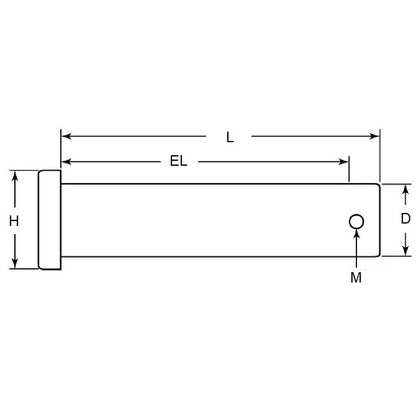

Nom. Pin Diameter (D): 4.76mm
-0.04 / -0.16
316 Grade Stainless
- Grip Length (EL): 9.12mm
+0.51 / -0.00
- Nom. Length (L): 12.70mm
+0.51 / -0.00
- Ret. Pin Dia. (M): 2.0mm
- Suitable R-Clip: RCL-012-015-S4 304 Stainless Only
Brand: MBA
Country of Origin: US
Alternatives: 92401A101, CLPS6-0187-0500
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
